Bluetooth Low Energy Heart Listener Example

The Bluetooth Low Energy Heart Listener Example shows how to develop a Bluetooth Low Energy application using the Qt Bluetooth API. The application covers the scanning for Bluetooth Low Energy devices, connecting to a Heart Rate service on the device, writing characteristics and descriptors and receiving updates from device once the heart rate has changed.

The example introduces the following Qt classes:

A Bluetooth Low Energy device with a Heart Rate service is required for this application to work. An alternative might be a programmable Bluetooth Low Energy device which might simulate the service. You can also use the Heart Rate server example for that purpose. If no such device can be found, the example uses a demo mode which creates and displays random values.

The Bluetooth Low Energy Scanner example might be more suitable if a heart rate device is not available. The scanner example works with any type of Bluetooth Low Energy peripheral device.

Running the Example

To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.

Visual Tour

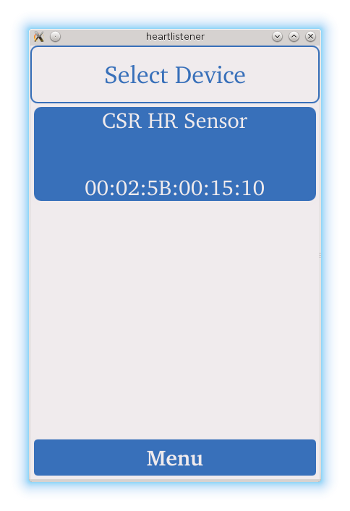

The application searches for all Bluetooth Low Energy peripheral devices in the vicinity. It is assumed that the remote devices advertise their presence. The found devices are presented in a list. Note that it shows all Bluetooth Low Energy devices even those which do not offer a Heart Rate service.

After the user has selected a target device, the example connects to its Heart Rate service if one is available. It automatically enables notification updates for the Heart Rate value and presents the current value on the screen.

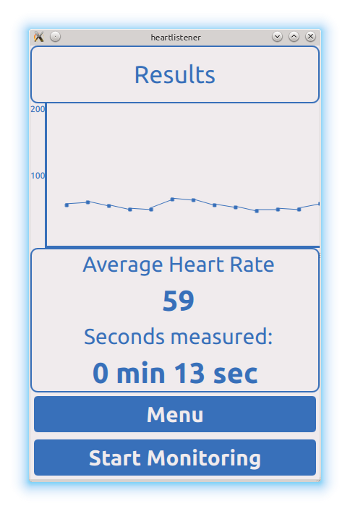

Once the monitoring process is canceled, a small graph presents a summary of the received values.

Files:
