The QPainterPath class provides a container for painting operations, enabling graphical shapes to be constructed and reused. More...

` #include <QPainterPath>`

class | Element |

enum | ElementType { MoveToElement, LineToElement, CurveToElement, CurveToDataElement } |

QPainterPath () | |

QPainterPath ( const QPointF & startPoint ) | |

QPainterPath ( const QPainterPath & path ) | |

~QPainterPath () | |

void | addEllipse ( const QRectF & boundingRectangle ) |

void | addEllipse ( qreal x, qreal y, qreal width, qreal height ) |

void | addEllipse ( const QPointF & center, qreal rx, qreal ry ) |

void | addPath ( const QPainterPath & path ) |

void | addPolygon ( const QPolygonF & polygon ) |

void | addRect ( const QRectF & rectangle ) |

void | addRect ( qreal x, qreal y, qreal width, qreal height ) |

void | addRegion ( const QRegion & region ) |

void | addRoundedRect ( const QRectF & rect, qreal xRadius, qreal yRadius, Qt::SizeMode mode = Qt::AbsoluteSize ) |

void | addRoundedRect ( qreal x, qreal y, qreal w, qreal h, qreal xRadius, qreal yRadius, Qt::SizeMode mode = Qt::AbsoluteSize ) |

void | addText ( const QPointF & point, const QFont & font, const QString & text ) |

void | addText ( qreal x, qreal y, const QFont & font, const QString & text ) |

qreal | angleAtPercent ( qreal t ) const |

void | arcMoveTo ( const QRectF & rectangle, qreal angle ) |

void | arcMoveTo ( qreal x, qreal y, qreal width, qreal height, qreal angle ) |

void | arcTo ( const QRectF & rectangle, qreal startAngle, qreal sweepLength ) |

void | arcTo ( qreal x, qreal y, qreal width, qreal height, qreal startAngle, qreal sweepLength ) |

QRectF | boundingRect () const |

void | closeSubpath () |

void | connectPath ( const QPainterPath & path ) |

bool | contains ( const QPointF & point ) const |

bool | contains ( const QRectF & rectangle ) const |

bool | contains ( const QPainterPath & p ) const |

QRectF | controlPointRect () const |

void | cubicTo ( const QPointF & c1, const QPointF & c2, const QPointF & endPoint ) |

void | cubicTo ( qreal c1X, qreal c1Y, qreal c2X, qreal c2Y, qreal endPointX, qreal endPointY ) |

QPointF | currentPosition () const |

const QPainterPath::Element & | elementAt ( int index ) const |

int | elementCount () const |

Qt::FillRule | fillRule () const |

QPainterPath | intersected ( const QPainterPath & p ) const |

bool | intersects ( const QRectF & rectangle ) const |

bool | intersects ( const QPainterPath & p ) const |

bool | isEmpty () const |

qreal | length () const |

void | lineTo ( const QPointF & endPoint ) |

void | lineTo ( qreal x, qreal y ) |

void | moveTo ( const QPointF & point ) |

void | moveTo ( qreal x, qreal y ) |

qreal | percentAtLength ( qreal len ) const |

QPointF | pointAtPercent ( qreal t ) const |

void | quadTo ( const QPointF & c, const QPointF & endPoint ) |

void | quadTo ( qreal cx, qreal cy, qreal endPointX, qreal endPointY ) |

void | setElementPositionAt ( int index, qreal x, qreal y ) |

void | setFillRule ( Qt::FillRule fillRule ) |

QPainterPath | simplified () const |

qreal | slopeAtPercent ( qreal t ) const |

QPainterPath | subtracted ( const QPainterPath & p ) const |

QPolygonF | toFillPolygon ( const QTransform & matrix ) const |

QPolygonF | toFillPolygon ( const QMatrix & matrix = QMatrix() ) const |

QList<QPolygonF> | toFillPolygons ( const QTransform & matrix ) const |

QList<QPolygonF> | toFillPolygons ( const QMatrix & matrix = QMatrix() ) const |

QPainterPath | toReversed () const |

QList<QPolygonF> | toSubpathPolygons ( const QTransform & matrix ) const |

QList<QPolygonF> | toSubpathPolygons ( const QMatrix & matrix = QMatrix() ) const |

void | translate ( qreal dx, qreal dy ) |

void | translate ( const QPointF & offset ) |

QPainterPath | translated ( qreal dx, qreal dy ) const |

QPainterPath | translated ( const QPointF & offset ) const |

QPainterPath | united ( const QPainterPath & p ) const |

bool | operator!= ( const QPainterPath & path ) const |

QPainterPath | operator& ( const QPainterPath & other ) const |

QPainterPath & | operator&= ( const QPainterPath & other ) |

QPainterPath | operator+ ( const QPainterPath & other ) const |

QPainterPath & | operator+= ( const QPainterPath & other ) |

QPainterPath | operator- ( const QPainterPath & other ) const |

QPainterPath & | operator-= ( const QPainterPath & other ) |

QPainterPath & | operator= ( const QPainterPath & path ) |

bool | operator== ( const QPainterPath & path ) const |

QPainterPath | operator| ( const QPainterPath & other ) const |

QPainterPath & | operator|= ( const QPainterPath & other ) |

QDataStream & | operator<< ( QDataStream & stream, const QPainterPath & path ) |

QDataStream & | operator>> ( QDataStream & stream, QPainterPath & path ) |

The QPainterPath class provides a container for painting operations, enabling graphical shapes to be constructed and reused.

A painter path is an object composed of a number of graphical building blocks, such as rectangles, ellipses, lines, and curves. Building blocks can be joined in closed subpaths, for example as a rectangle or an ellipse. A closed path has coinciding start and end points. Or they can exist independently as unclosed subpaths, such as lines and curves.

A QPainterPath object can be used for filling, outlining, and clipping. To generate fillable outlines for a given painter path, use the QPainterPathStroker class. The main advantage of painter paths over normal drawing operations is that complex shapes only need to be created once; then they can be drawn many times using only calls to the QPainter::drawPath() function.

QPainterPath provides a collection of functions that can be used to obtain information about the path and its elements. In addition it is possible to reverse the order of the elements using the toReversed() function. There are also several functions to convert this painter path object into a polygon representation.

A QPainterPath object can be constructed as an empty path, with a given start point, or as a copy of another QPainterPath object. Once created, lines and curves can be added to the path using the lineTo(), arcTo(), cubicTo() and quadTo() functions. The lines and curves stretch from the currentPosition() to the position passed as argument.

The currentPosition() of the QPainterPath object is always the end position of the last subpath that was added (or the initial start point). Use the moveTo() function to move the currentPosition() without adding a component. The moveTo() function implicitly starts a new subpath, and closes the previous one. Another way of starting a new subpath is to call the closeSubpath() function which closes the current path by adding a line from the currentPosition() back to the path's start position. Note that the new path will have (0, 0) as its initial currentPosition().

QPainterPath class also provides several convenience functions to add closed subpaths to a painter path: addEllipse(), addPath(), addRect(), addRegion() and addText(). The addPolygon() function adds an *unclosed* subpath. In fact, these functions are all collections of moveTo(), lineTo() and cubicTo() operations.

In addition, a path can be added to the current path using the connectPath() function. But note that this function will connect the last element of the current path to the first element of given one by adding a line.

Below is a code snippet that shows how a QPainterPath object can be used:

QPainterPath path; path.addRect(20, 20, 60, 60); path.moveTo(0, 0); path.cubicTo(99, 0, 50, 50, 99, 99); path.cubicTo(0, 99, 50, 50, 0, 0); QPainter painter(this); painter.fillRect(0, 0, 100, 100, Qt::white); painter.setPen(QPen(QColor(79, 106, 25), 1, Qt::SolidLine, Qt::FlatCap, Qt::MiterJoin)); painter.setBrush(QColor(122, 163, 39)); painter.drawPath(path); |

The painter path is initially empty when constructed. We first add a rectangle, which is a closed subpath. Then we add two bezier curves which together form a closed subpath even though they are not closed individually. Finally we draw the entire path. The path is filled using the default fill rule, Qt::OddEvenFill. Qt provides two methods for filling paths:

Qt::OddEvenFill | Qt::WindingFill |
---|

See the Qt::FillRule documentation for the definition of the rules. A painter path's currently set fill rule can be retrieved using the fillRule() function, and altered using the setFillRule() function.

The QPainterPath class provides a collection of functions that returns information about the path and its elements.

The currentPosition() function returns the end point of the last subpath that was added (or the initial start point). The elementAt() function can be used to retrieve the various subpath elements, the *number* of elements can be retrieved using the elementCount() function, and the isEmpty() function tells whether this QPainterPath object contains any elements at all.

The controlPointRect() function returns the rectangle containing all the points and control points in this path. This function is significantly faster to compute than the exact boundingRect() which returns the bounding rectangle of this painter path with floating point precision.

Finally, QPainterPath provides the contains() function which can be used to determine whether a given point or rectangle is inside the path, and the intersects() function which determines if any of the points inside a given rectangle also are inside this path.

For compatibility reasons, it might be required to simplify the representation of a painter path: QPainterPath provides the toFillPolygon(), toFillPolygons() and toSubpathPolygons() functions which convert the painter path into a polygon. The toFillPolygon() returns the painter path as one single polygon, while the two latter functions return a list of polygons.

The toFillPolygons() and toSubpathPolygons() functions are provided because it is usually faster to draw several small polygons than to draw one large polygon, even though the total number of points drawn is the same. The difference between the two is the *number* of polygons they return: The toSubpathPolygons() creates one polygon for each subpath regardless of intersecting subpaths (i.e. overlapping bounding rectangles), while the toFillPolygons() functions creates only one polygon for overlapping subpaths.

The toFillPolygon() and toFillPolygons() functions first convert all the subpaths to polygons, then uses a rewinding technique to make sure that overlapping subpaths can be filled using the correct fill rule. Note that rewinding inserts additional lines in the polygon so the outline of the fill polygon does not match the outline of the path.

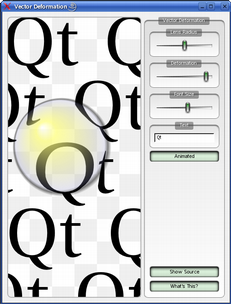

Qt provides the Painter Paths Example and the Vector Deformation Demo which are located in Qt's example and demo directories respectively.

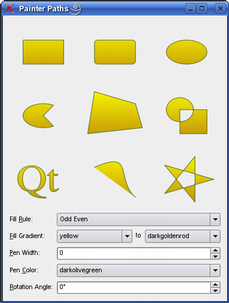

The Painter Paths Example shows how painter paths can be used to build complex shapes for rendering and lets the user experiment with the filling and stroking. The Vector Deformation Demo shows how to use QPainterPath to draw text.

Painter Paths Example | Vector Deformation Demo |
---|

See also QPainterPathStroker, QPainter, QRegion, and Painter Paths Example.

This enum describes the types of elements used to connect vertices in subpaths.

Note that elements added as closed subpaths using the addEllipse(), addPath(), addPolygon(), addRect(), addRegion() and addText() convenience functions, is actually added to the path as a collection of separate elements using the moveTo(), lineTo() and cubicTo() functions.

Constant | Value | Description |
---|---|---|

QPainterPath::MoveToElement | 0 | A new subpath. See also moveTo(). |

QPainterPath::LineToElement | 1 | A line. See also lineTo(). |

QPainterPath::CurveToElement | 2 | A curve. See also cubicTo() and quadTo(). |

QPainterPath::CurveToDataElement | 3 | The extra data required to describe a curve in a CurveToElement element. |

See also elementAt() and elementCount().

Constructs an empty QPainterPath object.

Creates a QPainterPath object with the given *startPoint* as its current position.

Creates a QPainterPath object that is a copy of the given *path*.

See also operator=().

Destroys this QPainterPath object.

Creates an ellipse within the specified *boundingRectangle* and adds it to the painter path as a closed subpath.

The ellipse is composed of a clockwise curve, starting and finishing at zero degrees (the 3 o'clock position).

QLinearGradient myGradient; QPen myPen; QRectF boundingRectangle; QPainterPath myPath; myPath.addEllipse(boundingRectangle); QPainter painter(this); painter.setBrush(myGradient); painter.setPen(myPen); painter.drawPath(myPath); |

See also arcTo(), QPainter::drawEllipse(), and Composing a QPainterPath.

This is an overloaded function.

Creates an ellipse within the bounding rectangle defined by its top-left corner at (*x*, *y*), *width* and *height*, and adds it to the painter path as a closed subpath.

This is an overloaded function.

Creates an ellipse positioned at *center* with radii *rx* and *ry*, and adds it to the painter path as a closed subpath.

This function was introduced in Qt 4.4.

Adds the given *path* to *this* path as a closed subpath.

See also connectPath() and Composing a QPainterPath.

Adds the given *polygon* to the path as an (unclosed) subpath.

Note that the current position after the polygon has been added, is the last point in *polygon*. To draw a line back to the first point, use the closeSubpath() function.

QLinearGradient myGradient; QPen myPen; QPolygonF myPolygon; QPainterPath myPath; myPath.addPolygon(myPolygon); QPainter painter(this); painter.setBrush(myGradient); painter.setPen(myPen); painter.drawPath(myPath); |

See also lineTo() and Composing a QPainterPath.

Adds the given *rectangle* to this path as a closed subpath.

The *rectangle* is added as a clockwise set of lines. The painter path's current position after the *rectangle* has been added is at the top-left corner of the rectangle.

QLinearGradient myGradient; QPen myPen; QRectF myRectangle; QPainterPath myPath; myPath.addRect(myRectangle); QPainter painter(this); painter.setBrush(myGradient); painter.setPen(myPen); painter.drawPath(myPath); |

See also addRegion(), lineTo(), and Composing a QPainterPath.

This is an overloaded function.

Adds a rectangle at position (*x*, *y*), with the given *width* and *height*, as a closed subpath.

Adds the given *region* to the path by adding each rectangle in the region as a separate closed subpath.

See also addRect() and Composing a QPainterPath.

Adds the given rectangle *rect* with rounded corners to the path.

The *xRadius* and *yRadius* arguments specify the radii of the ellipses defining the corners of the rounded rectangle. When *mode* is Qt::RelativeSize, *xRadius* and *yRadius* are specified in percentage of half the rectangle's width and height respectively, and should be in the range 0.0 to 100.0.

This function was introduced in Qt 4.4.

See also addRect().

This is an overloaded function.

Adds the given rectangle *x*, *y*, *w*, *h* with rounded corners to the path.

This function was introduced in Qt 4.4.

Adds the given *text* to this path as a set of closed subpaths created from the *font* supplied. The subpaths are positioned so that the left end of the text's baseline lies at the specified *point*.

QLinearGradient myGradient; QPen myPen; QFont myFont; QPointF baseline(x, y); QPainterPath myPath; myPath.addText(baseline, myFont, tr("Qt")); QPainter painter(this); painter.setBrush(myGradient); painter.setPen(myPen); painter.drawPath(myPath); |

See also QPainter::drawText() and Composing a QPainterPath.

This is an overloaded function.

Adds the given *text* to this path as a set of closed subpaths created from the *font* supplied. The subpaths are positioned so that the left end of the text's baseline lies at the point specified by (*x*, *y*).

Returns the angle of the path tangent at the percentage *t*. The argument *t* has to be between 0 and 1.

Positive values for the angles mean counter-clockwise while negative values mean the clockwise direction. Zero degrees is at the 3 o'clock position.

Note that similarly to the other percent methods, the percentage measurement is not linear with regards to the length if curves are present in the path. When curves are present the percentage argument is mapped to the t parameter of the Bezier equations.

Creates a move to that lies on the arc that occupies the given *rectangle* at *angle*.

Angles are specified in degrees. Clockwise arcs can be specified using negative angles.

This function was introduced in Qt 4.2.

See also moveTo() and arcTo().

This is an overloaded function.

Creates a move to that lies on the arc that occupies the QRectF(*x*, *y*, *width*, *height*) at *angle*.

This function was introduced in Qt 4.2.

Creates an arc that occupies the given *rectangle*, beginning at the specified *startAngle* and extending *sweepLength* degrees counter-clockwise.

Angles are specified in degrees. Clockwise arcs can be specified using negative angles.

Note that this function connects the starting point of the arc to the current position if they are not already connected. After the arc has been added, the current position is the last point in arc. To draw a line back to the first point, use the closeSubpath() function.

QLinearGradient myGradient; QPen myPen; QPointF center, startPoint; QPainterPath myPath; myPath.moveTo(center); myPath.arcTo(boundingRect, startAngle, sweepLength); QPainter painter(this); painter.setBrush(myGradient); painter.setPen(myPen); painter.drawPath(myPath); |

See also arcMoveTo(), addEllipse(), QPainter::drawArc(), QPainter::drawPie(), and Composing a QPainterPath.

This is an overloaded function.

Creates an arc that occupies the rectangle QRectF(*x*, *y*, *width*, *height*), beginning at the specified *startAngle* and extending *sweepLength* degrees counter-clockwise.

Returns the bounding rectangle of this painter path as a rectangle with floating point precision.

See also controlPointRect().

Closes the current subpath by drawing a line to the beginning of the subpath, automatically starting a new path. The current point of the new path is (0, 0).

If the subpath does not contain any elements, this function does nothing.

See also moveTo() and Composing a QPainterPath.

Connects the given *path* to *this* path by adding a line from the last element of this path to the first element of the given path.

See also addPath() and Composing a QPainterPath.

Returns true if the given *point* is inside the path, otherwise returns false.

See also intersects().

Returns true if the given *rectangle* is inside the path, otherwise returns false.

Returns true if the given path *p* is contained within the current path. Returns false if any edges of the current path and *p* intersect.

Set operations on paths will treat the paths as areas. Non-closed paths will be treated as implicitly closed.

This function was introduced in Qt 4.3.

See also intersects().

Returns the rectangle containing all the points and control points in this path.

This function is significantly faster to compute than the exact boundingRect(), and the returned rectangle is always a superset of the rectangle returned by boundingRect().

See also boundingRect().

Adds a cubic Bezier curve between the current position and the given *endPoint* using the control points specified by *c1*, and *c2*.

After the curve is added, the current position is updated to be at the end point of the curve.

QLinearGradient myGradient; QPen myPen; QPainterPath myPath; myPath.cubicTo(c1, c2, endPoint); QPainter painter(this); painter.setBrush(myGradient); painter.setPen(myPen); painter.drawPath(myPath); |

See also quadTo() and Composing a QPainterPath.

This is an overloaded function.

Adds a cubic Bezier curve between the current position and the end point (*endPointX*, *endPointY*) with control points specified by (*c1X*, *c1Y*) and (*c2X*, *c2Y*).

Returns the current position of the path.

Returns the element at the given *index* in the painter path.

See also ElementType, elementCount(), and isEmpty().

Returns the number of path elements in the painter path.

See also ElementType, elementAt(), and isEmpty().

Returns the painter path's currently set fill rule.

See also setFillRule().

Returns a path which is the intersection of this path's fill area and *p*'s fill area. Bezier curves may be flattened to line segments due to numerical instability of doing bezier curve intersections.

This function was introduced in Qt 4.3.

Returns true if any point in the given *rectangle* intersects the path; otherwise returns false.

There is an intersection if any of the lines making up the rectangle crosses a part of the path or if any part of the rectangle overlaps with any area enclosed by the path. This function respects the current fillRule to determine what is considered inside the path.

See also contains().

Returns true if the current path intersects at any point the given path *p*. Also returns true if the current path contains or is contained by any part of *p*.

Set operations on paths will treat the paths as areas. Non-closed paths will be treated as implicitly closed.

This function was introduced in Qt 4.3.

See also contains().

Returns true if either there are no elements in this path, or if the only element is a MoveToElement; otherwise returns false.

See also elementCount().

Returns the length of the current path.

Adds a straight line from the current position to the given *endPoint*. After the line is drawn, the current position is updated to be at the end point of the line.

See also addPolygon(), addRect(), and Composing a QPainterPath.

This is an overloaded function.

Draws a line from the current position to the point (*x*, *y*).

Moves the current point to the given *point*, implicitly starting a new subpath and closing the previous one.

See also closeSubpath() and Composing a QPainterPath.

This is an overloaded function.

Moves the current position to (*x*, *y*) and starts a new subpath, implicitly closing the previous path.

Returns percentage of the whole path at the specified length *len*.

Note that similarly to other percent methods, the percentage measurement is not linear with regards to the length, if curves are present in the path. When curves are present the percentage argument is mapped to the t parameter of the Bezier equations.

Returns the point at at the percentage *t* of the current path. The argument *t* has to be between 0 and 1.

Note that similarly to other percent methods, the percentage measurement is not linear with regards to the length, if curves are present in the path. When curves are present the percentage argument is mapped to the t parameter of the Bezier equations.

Adds a quadratic Bezier curve between the current position and the given *endPoint* with the control point specified by *c*.

After the curve is added, the current point is updated to be at the end point of the curve.

See also cubicTo() and Composing a QPainterPath.

This is an overloaded function.

Adds a quadratic Bezier curve between the current point and the endpoint (*endPointX*, *endPointY*) with the control point specified by (*cx*, *cy*).

Sets the x and y coordinate of the element at index *index* to *x* and *y*.

This function was introduced in Qt 4.2.

Sets the fill rule of the painter path to the given *fillRule*. Qt provides two methods for filling paths:

Qt::OddEvenFill (default) | Qt::WindingFill |
---|

See also fillRule().

Returns a simplified version of this path. This implies merging all subpaths that intersect, and returning a path containing no intersecting edges. Consecutive parallel lines will also be merged. The simplified path will always use the default fill rule, Qt::OddEvenFill. Bezier curves may be flattened to line segments due to numerical instability of doing bezier curve intersections.

This function was introduced in Qt 4.4.

Returns the slope of the path at the percentage *t*. The argument *t* has to be between 0 and 1.

Note that similarly to other percent methods, the percentage measurement is not linear with regards to the length, if curves are present in the path. When curves are present the percentage argument is mapped to the t parameter of the Bezier equations.

Returns a path which is *p*'s fill area subtracted from this path's fill area.

Set operations on paths will treat the paths as areas. Non-closed paths will be treated as implicitly closed. Bezier curves may be flattened to line segments due to numerical instability of doing bezier curve intersections.

This function was introduced in Qt 4.3.

Converts the path into a polygon using the QTransform *matrix*, and returns the polygon.

The polygon is created by first converting all subpaths to polygons, then using a rewinding technique to make sure that overlapping subpaths can be filled using the correct fill rule.

Note that rewinding inserts addition lines in the polygon so the outline of the fill polygon does not match the outline of the path.

See also toSubpathPolygons(), toFillPolygons(), and QPainterPath Conversion.

This is an overloaded function.

Converts the path into a list of polygons using the QTransform *matrix*, and returns the list.

The function differs from the toFillPolygon() function in that it creates several polygons. It is provided because it is usually faster to draw several small polygons than to draw one large polygon, even though the total number of points drawn is the same.

The toFillPolygons() function differs from the toSubpathPolygons() function in that it create only polygon for subpaths that have overlapping bounding rectangles.

Like the toFillPolygon() function, this function uses a rewinding technique to make sure that overlapping subpaths can be filled using the correct fill rule. Note that rewinding inserts addition lines in the polygons so the outline of the fill polygon does not match the outline of the path.

See also toSubpathPolygons(), toFillPolygon(), and QPainterPath Conversion.

This is an overloaded function.

Creates and returns a reversed copy of the path.

It is the order of the elements that is reversed: If a QPainterPath is composed by calling the moveTo(), lineTo() and cubicTo() functions in the specified order, the reversed copy is composed by calling cubicTo(), lineTo() and moveTo().

Converts the path into a list of polygons using the QTransform *matrix*, and returns the list.

This function creates one polygon for each subpath regardless of intersecting subpaths (i.e. overlapping bounding rectangles). To make sure that such overlapping subpaths are filled correctly, use the toFillPolygons() function instead.

See also toFillPolygons(), toFillPolygon(), and QPainterPath Conversion.

This is an overloaded function.

Translates all elements in the path by (*dx*, *dy*).

This function was introduced in Qt 4.6.

See also translated().

This is an overloaded function.

Translates all elements in the path by the given *offset*.

This function was introduced in Qt 4.6.

See also translated().

Returns a copy of the path that is translated by (*dx*, *dy*).

This function was introduced in Qt 4.6.

See also translate().

This is an overloaded function.

Returns a copy of the path that is translated by the given *offset*.

This function was introduced in Qt 4.6.

See also translate().

Returns a path which is the union of this path's fill area and *p*'s fill area.

Set operations on paths will treat the paths as areas. Non-closed paths will be treated as implicitly closed. Bezier curves may be flattened to line segments due to numerical instability of doing bezier curve intersections.

This function was introduced in Qt 4.3.

See also intersected() and subtracted().

Returns true if this painter path differs from the given *path*.

Note that comparing paths may involve a per element comparison which can be slow for complex paths.

See also operator==().

Returns the intersection of this path and the *other* path.

This function was introduced in Qt 4.5.

See also intersected(), operator&=(), united(), and operator|().

Intersects this path with *other* and returns a reference to this path.

This function was introduced in Qt 4.5.

See also intersected(), operator&(), and operator|=().

Returns the union of this path and the *other* path. This function is equivalent to operator|().

This function was introduced in Qt 4.5.

See also united(), operator+=(), and operator-().

Unites this path with *other*, and returns a reference to this path. This is equivalent to operator|=().

This function was introduced in Qt 4.5.

See also united(), operator+(), and operator-=().

Subtracts the *other* path from a copy of this path, and returns the copy.

This function was introduced in Qt 4.5.

See also subtracted(), operator-=(), and operator+().

Subtracts *other* from this path, and returns a reference to this path.

This function was introduced in Qt 4.5.

See also subtracted(), operator-(), and operator+=().

Assigns the given *path* to this painter path.

See also QPainterPath().

Returns true if this painterpath is equal to the given *path*.

Note that comparing paths may involve a per element comparison which can be slow for complex paths.

See also operator!=().

Returns the union of this path and the *other* path.

This function was introduced in Qt 4.5.

See also united(), operator|=(), intersected(), and operator&().

Unites this path with *other* and returns a reference to this path.

This function was introduced in Qt 4.5.

See also united(), operator|(), and operator&=().

Writes the given painter *path* to the given *stream*, and returns a reference to the *stream*.

See also Serializing Qt Data Types.

Reads a painter path from the given *stream* into the specified *path*, and returns a reference to the *stream*.

See also Serializing Qt Data Types.

X
