5.1. Dashboard

The Dashboard of the Axivion Suite is a small web application accessible via your browser that grants access to the erosion and quality characteristics of your software projects. Its installation is covered here.

In the following you can see an assortment of some of its features:

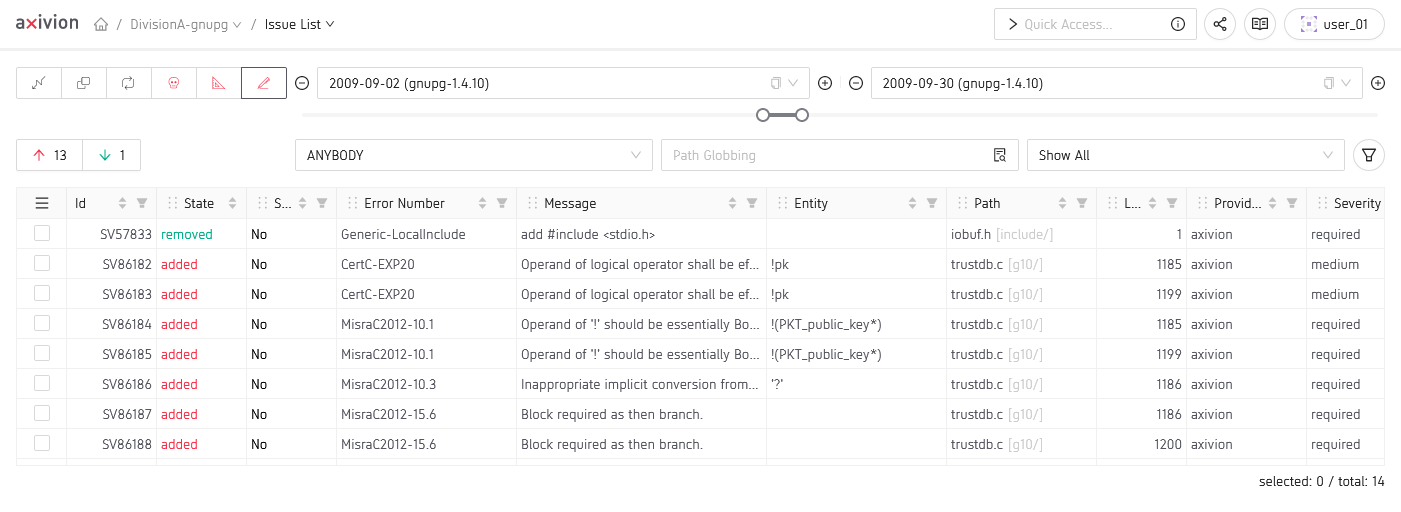

Issue Table showing issues removed and added between two versions.

Filterable Issue Table and Deltas

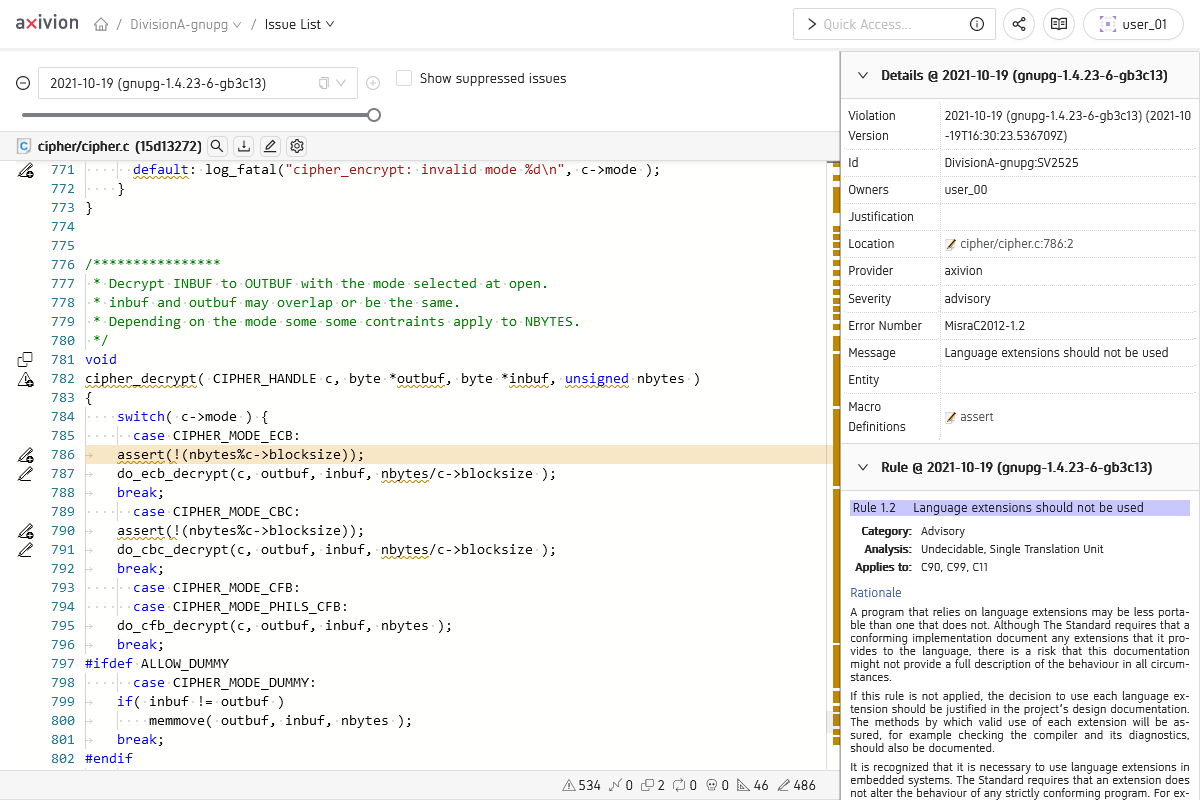

IssueView showing a violation of a Misra Rule

Detailed Issue Inspections with explanations of the violated rules

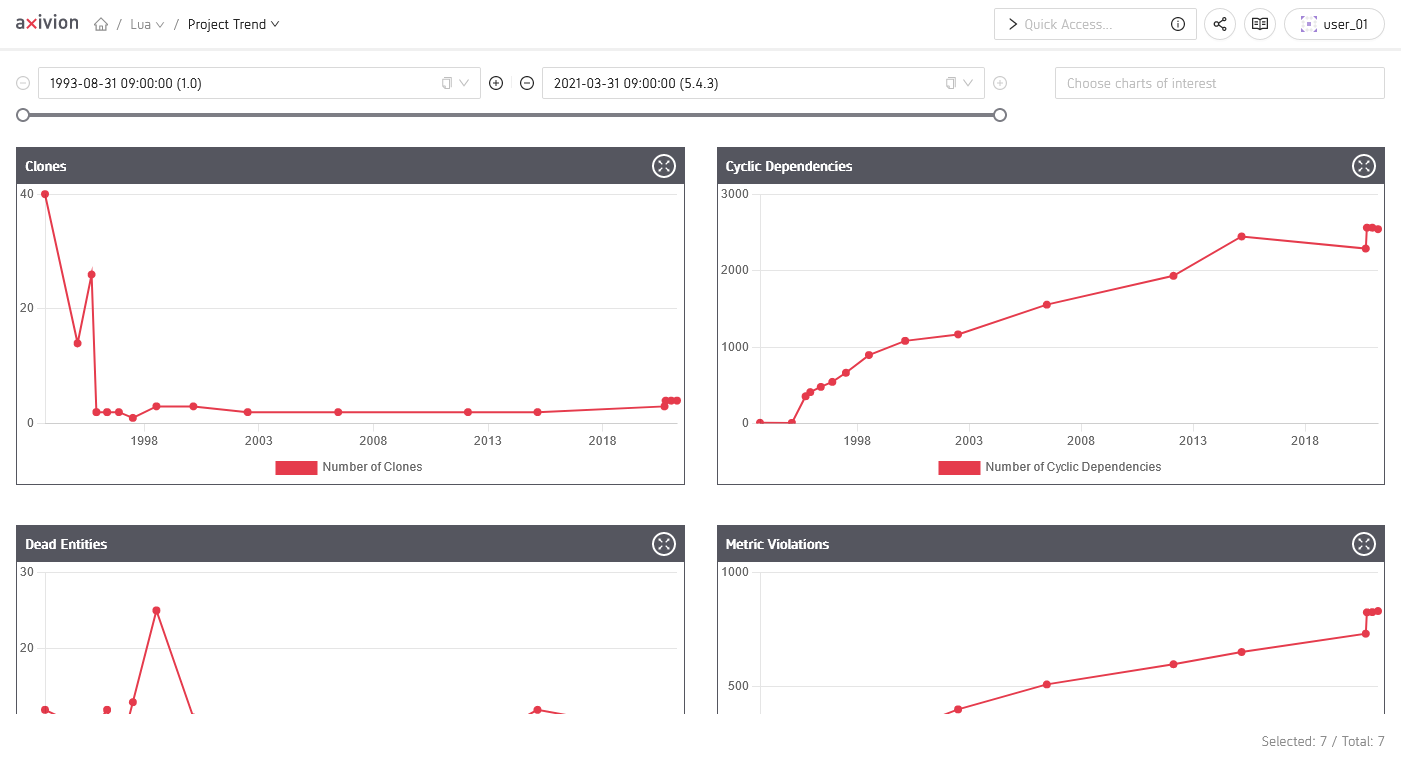

The Trend Page.

System Metric Charts
