Integrating QML and C++

QML applications often need to handle more advanced and performance-intensive tasks in C++. The most common and quickest way to do this is to expose the C++ class to the QML runtime, provided the C++ implementation is derived from QObject. Assuming that you have Qt 5.7 or later installed, the following step-by-step instructions guide you through the process of using the C++ class, BackEnd, in a QML application:

  1. Create a new project using the "Qt Quick Application" template in Qt Creator

    Note: Uncheck the With ui.qml file option in the Define Project Details section of New Project Wizard.

  2. Add a new C++ class called BackEnd to the project and replace its header file contents with:
    #ifndef BACKEND_H
    #define BACKEND_H

    #include <QObject>
    #include <QString>

    class BackEnd : public QObject
    {
        Q_OBJECT
        Q_PROPERTY(QString userName READ userName WRITE setUserName NOTIFY userNameChanged)

    public:
        explicit BackEnd(QObject *parent = nullptr);

        QString userName();
        void setUserName(const QString &userName);

    signals:
        void userNameChanged();

    private:
        QString m_userName;
    };

    #endif // BACKEND_H

    The Q_PROPERTY macro declares a property that could be accessed from QML.

  3. Replace its C++ file contents with:
    #include "backend.h"

    BackEnd::BackEnd(QObject *parent) :
        QObject(parent)
    {
    }

    QString BackEnd::userName()
    {
        return m_userName;
    }

    void BackEnd::setUserName(const QString &userName)
    {
        if (userName == m_userName)
            return;

        m_userName = userName;
        emit userNameChanged();
    }

    The setUserName function emits the userNameChanged signal every time m_userName value changes. The signal can be handled from QML using the onUserNameChanged handler.

  4. Include "backend.h" in main.cpp and register the class as a QML type under a import URL as shown below:
    #include <QGuiApplication>
    #include <QQmlApplicationEngine>

    #include "backend.h"

    int main(int argc, char *argv[])
    {
        QGuiApplication app(argc, argv);

        qmlRegisterType<BackEnd>("io.qt.examples.backend", 1, 0, "BackEnd");

        QQmlApplicationEngine engine;
        engine.load(QUrl(QStringLiteral("qrc:/main.qml")));

        return app.exec();
    }

    The BackEnd class is registered as a type, which is accessible from QML by importing the URL, "io.qt.examples.backend 1.0".

  5. Replace the contents of main.qml with the following code:
    import QtQuick 2.6
    import QtQuick.Controls 2.0
    import io.qt.examples.backend 1.0

    ApplicationWindow {
        id: root
        width: 300
        height: 480
        visible: true

        BackEnd {
            id: backend
        }

        TextField {
            text: backend.userName
            placeholderText: qsTr("User name")
            anchors.centerIn: parent

            onTextChanged: backend.userName = text
        }
    }

    The BackEnd instance lets you access the userName property, which is updated when the TextField's text property changes.

Now the application can be run.

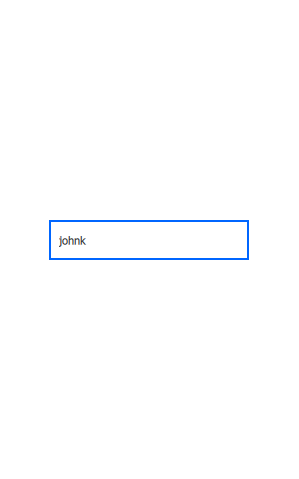

Application running on Ubuntu

Qt offers several methods to integrate C++ with QML, and the method discussed in this tutorial is just one of them. For more details about these methods, refer to Overview - QML and C++ Integration.
