Qt Quick 3D - Lights Example

Demonstrates the use of different light types.

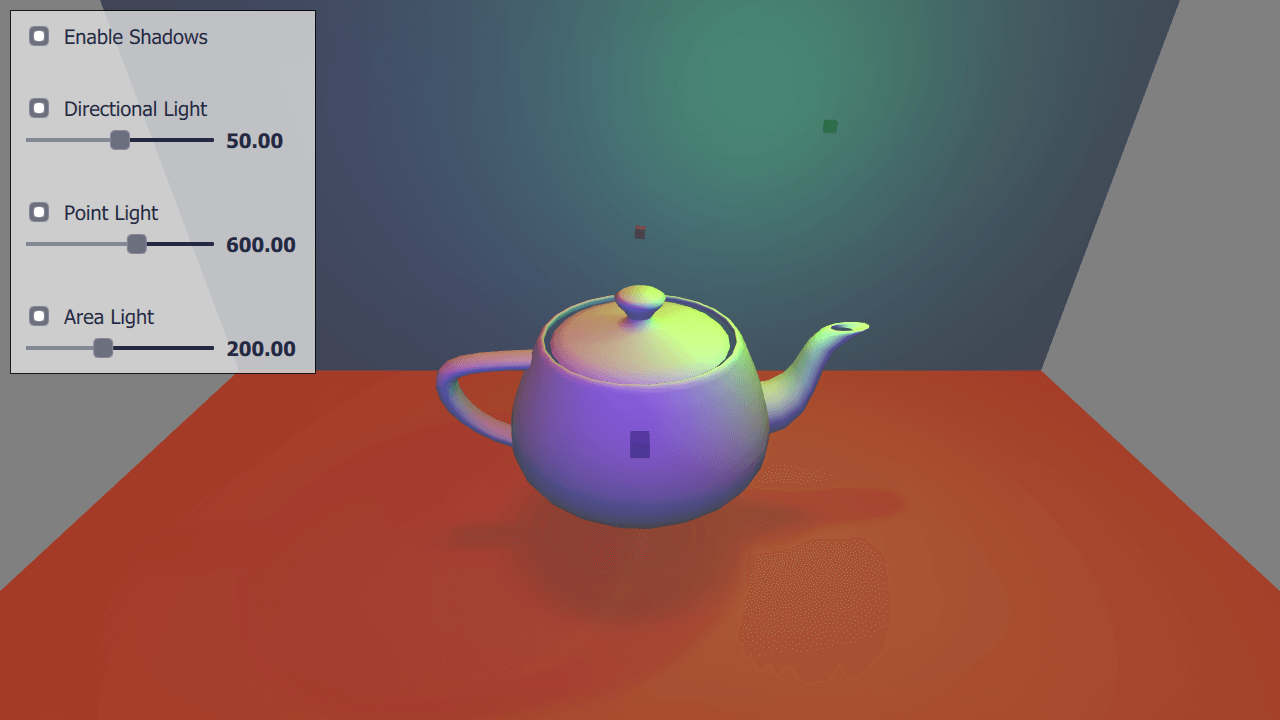

This example demonstrates using three different light types in an application.

Setting the Scene Lights

Directional Light

The directional light emits light in one direction from an unidentifiable source located infinitely far away. This is similar to the way sunlight works in real life. A directional light has infinite range and does not diminish.

We setup directional light to emit red color and animate its rotation around x-axis.

DirectionalLight {
    id: light1
    color: Qt.rgba(1.0, 0.1, 0.1, 1.0)
    ambientColor: Qt.rgba(0.1, 0.1, 0.1, 1.0)
    position: Qt.vector3d(0, 200, 0)
    rotation: Qt.vector3d(135, 90, 0)
    shadowMapQuality: Light.ShadowMapQualityHigh
    visible: checkBox1.checked
    castsShadow: checkBoxShadows.checked
    brightness: slider1.sliderValue
    SequentialAnimation on rotation {
        loops: Animation.Infinite
        PropertyAnimation {
            to: Qt.vector3d(45, 90, 0)
            duration: 2000
            easing.type: Easing.InOutQuad
        }
        PropertyAnimation {
            to: Qt.vector3d(135, 90, 0)
            duration: 2000
            easing.type: Easing.InOutQuad
        }
    }
}
Point Light

The point light can be described as a sphere, emitting light with equal strength in all directions from the center of the light. This is similar to the way a light bulb emits light.

We setup point light to emit green color and animate its position in x-coordinate.

PointLight {
    id: light2
    color: Qt.rgba(0.1, 1.0, 0.1, 1.0)
    ambientColor: Qt.rgba(0.1, 0.1, 0.1, 1.0)
    position: Qt.vector3d(0, 300, 0)
    shadowMapFar: 2000
    shadowMapQuality: Light.ShadowMapQualityHigh
    visible: checkBox2.checked
    castsShadow: checkBoxShadows.checked
    brightness: slider2.sliderValue
    SequentialAnimation on x {
        loops: Animation.Infinite
        NumberAnimation {
            to: 400
            duration: 2000
            easing.type: Easing.InOutQuad
        }
        NumberAnimation {
            to: 0
            duration: 2000
            easing.type: Easing.InOutQuad
        }
    }
}
Area Light

The area light is similar to the directional light, but instead of emitting equally bright light across the whole scene, the area light emits directional light from a rectangle shaped object. Aside from the size, an area light has the same characteristics and properties as the directional light.

We setup area light to emit blue color and animate its position in z-coordinate.

AreaLight {
    id: light3
    color: Qt.rgba(0.1, 0.1, 1.0, 1.0)
    ambientColor: Qt.rgba(0.1, 0.1, 0.1, 1.0)
    position: Qt.vector3d(-50, 250, -150)
    rotation: Qt.vector3d(90, 0, 0)
    width: 1000
    height: 200
    shadowMapFar: 2000
    shadowMapQuality: Light.ShadowMapQualityHigh
    visible: checkBox3.checked
    castsShadow: checkBoxShadows.checked
    brightness: slider3.sliderValue
    SequentialAnimation on z {
        loops: Animation.Infinite
        NumberAnimation {
            to: 150
            duration: 2000
            easing.type: Easing.InOutQuad
        }
        NumberAnimation {
            to: -150
            duration: 2000
            easing.type: Easing.InOutQuad
        }
    }
}

Setting the Scene Models

First we add two rectangle models to act as the floor and the back wall for our scene. These are useful for seeing light shadows.

Model {
    source: "#Rectangle"
    y: -200
    scale: Qt.vector3d(15, 15, 15)
    rotation: Qt.vector3d(90, 0, 0)
    materials: [
        DefaultMaterial {
            diffuseColor: Qt.rgba(0.8, 0.6, 0.4, 1.0)
        }
    ]
}
Model {
    source: "#Rectangle"
    z: 400
    scale: Qt.vector3d(15, 15, 15)
    materials: [
        DefaultMaterial {
            diffuseColor: Qt.rgba(0.8, 0.8, 0.9, 1.0)
        }
    ]
}

Then we add our main teapot model which is rotated around y-axis.

Model {
    source: "teapot.mesh"
    y: -100
    scale: Qt.vector3d(75, 75, 75)
    materials: [
        DefaultMaterial {
            diffuseColor: Qt.rgba(0.9, 0.9, 0.9, 1.0)
        }
    ]

    NumberAnimation  on rotation.y {
        loops: Animation.Infinite
        duration: 5000
        from: 0
        to: 360
    }
}

We also add small cube models to demonstrate position & rotation of each light type. These cubes scale bigger when user is accessing related sliders.

Model {
    source: "#Cube"
    position: light1.position
    rotation: light1.rotation
    property real size: slider1.highlight ? 0.2 : 0.1
    scale: Qt.vector3d(size, size, size)
    materials: [
        DefaultMaterial {
            diffuseColor: light1.color
            opacity: 0.4
        }
    ]
}
Model {
    source: "#Cube"
    position: light2.position
    rotation: light2.rotation
    property real size: slider2.highlight ? 0.2 : 0.1
    scale: Qt.vector3d(size, size, size)
    materials: [
        DefaultMaterial {
            diffuseColor: light2.color
            opacity: 0.4
        }
    ]
}
Model {
    source: "#Cube"
    position: light3.position
    rotation: light3.rotation
    property real size: slider3.highlight ? 0.2 : 0.1
    scale: Qt.vector3d(size, size, size)
    materials: [
        DefaultMaterial {
            diffuseColor: light3.color
            opacity: 0.4
        }
    ]
}

From the settings panel user can then enable shadows and control visibility and brightness of each light separately.
