Qt Graphs Integración con « Qt Quick » 3D

Dado que « Qt Graphs for 3D» se basa en « Qt Quick 3D», es posible integrar escenas 3D de « Qt Quick » en los gráficos.

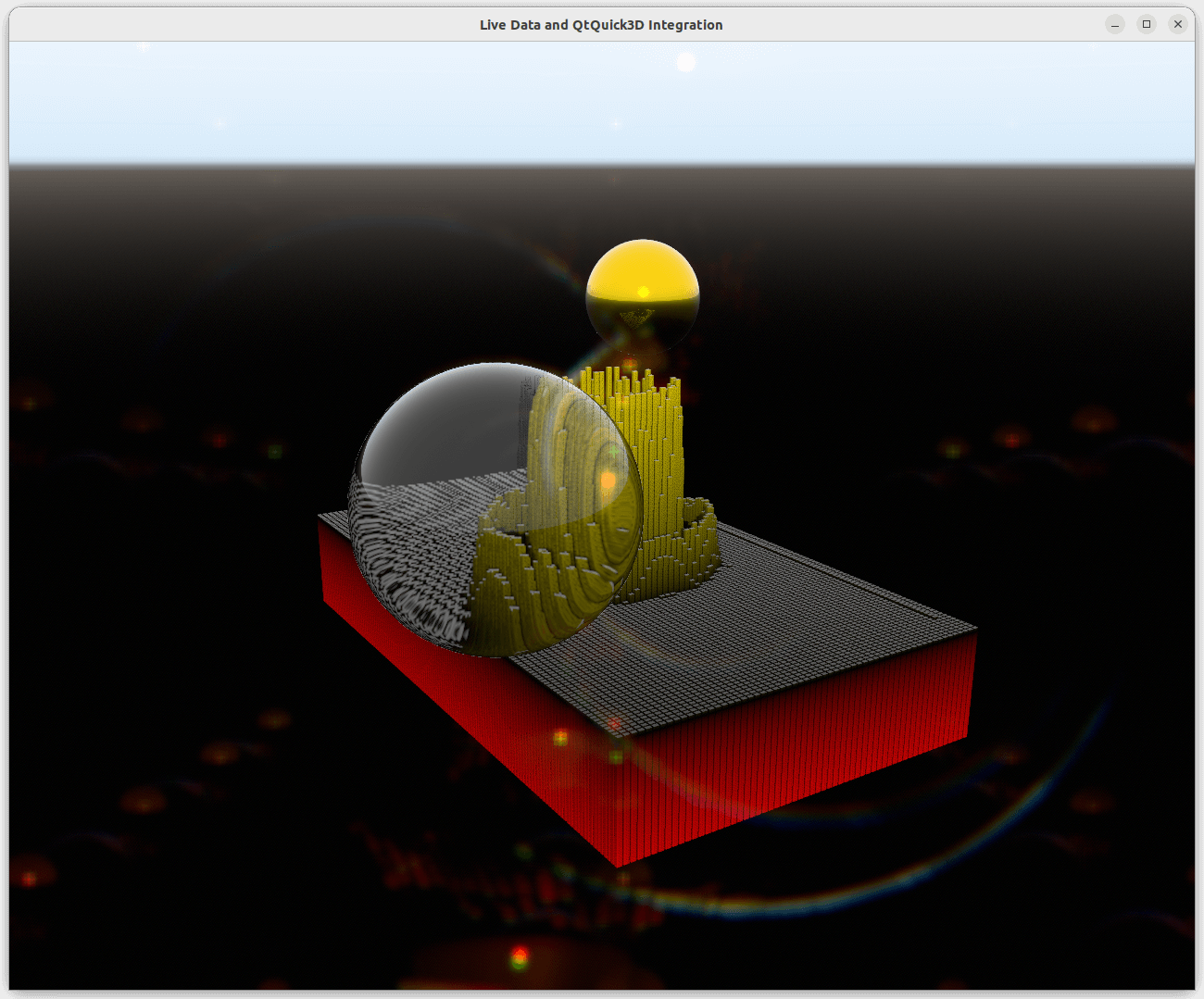

Gráfico de barras en 3D con esferas reflectantes sobre una plataforma roja

Entorno de la escena

Para ajustar el entorno de una escena de « Qt Quick 3D» en un gráfico, define « SceneEnvironment » o « ExtendedSceneEnvironment » en la propiedad « environment » del gráfico de la siguiente manera:

environment: ExtendedSceneEnvironment {
    aoEnabled: true
    aoDither: true
    ditheringEnabled: true
    lightProbe: Texture {
        textureData: ProceduralSkyTextureData {
            groundBottomColor: "black"
            skyTopColor: "white"
        }
    }
    backgroundMode: SceneEnvironment.SkyBox
    lensFlareEnabled: true
    lensFlareGhostCount: 10
    lensFlareApplyStarburstTexture: true
    lensFlareBloomBias: 0.4
}

Funciones no compatibles

No es posible anular el modo de suavizado ni el color de borrado de la escena, lo que significa que establecer un valor para « SceneEnvironment.antialiasingMode » y « SceneEnvironment.clearColor » no tiene ningún efecto. Sin embargo, si « backgroundMode » no está establecido en « SceneEnvironment.Color », el fondo se verá afectado por los ajustes.

Integración de escenas

Para integrar una escena 3D de Qt Quick en un gráfico, configura la propiedad importScene del gráfico con un Node que tenga los siguientes ajustes:

importScene: Node {
    Model {
        scale: Qt.vector3d(0.01, 0.01, 0.01)
        source: "#Sphere"
        x: 2.5
        z: 2
        y: 1
        castsReflections: false
        receivesReflections: true
        materials: [
            PrincipledMaterial {
                baseColor: "gold"
                metalness: 1.0
                roughness: 0.1
            }
        ]
        ReflectionProbe {
            boxSize: Qt.vector3d(6, 3, 5)
            boxOffset: Qt.vector3d(-1.5, -1, -1.5)
            parallaxCorrection: true
            quality: ReflectionProbe.High
        }
    }
    Model {
        scale: Qt.vector3d(0.01, 0.01, 0.01)
        source: "#Sphere"
        x: -2.5
        z: -2
        y: 1
        castsReflections: false
        receivesReflections: true
        materials: [
            PrincipledMaterial {
                baseColor: "white"
                metalness: 0.0
                roughness: 0.0
                transmissionFactor: 1.0
                thicknessFactor: 50
            }
        ]
    }
}

Añadir elementos de « Nodes » directamente como elementos secundarios del gráfico no funcionará, ya que el elemento secundario predeterminado de un gráfico es la serie correspondiente.
