Grafo de escena: material personalizado
Muestra cómo implementar un material personalizado en el grafo de escena de « Qt Quick ».

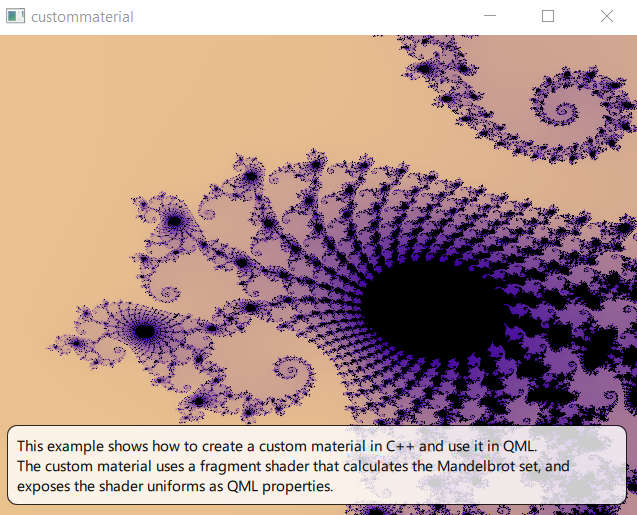

El ejemplo de material personalizado muestra cómo implementar un elemento que se renderiza utilizando un material con un shader de vértices y un shader de fragmentos personalizados.

Shader y material
La funcionalidad principal reside en el sombreador de fragmentos
// Copyright (C) 2023 The Qt Company Ltd.
// SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause
#version 440
layout(location = 0) in vec2 vTexCoord;
layout(location = 0) out vec4 fragColor;
// uniform block: 84 bytes
layout(std140, binding = 0) uniform buf {
mat4 qt_Matrix; // offset 0
float qt_Opacity; // offset 64
float zoom; // offset 68
vec2 center; // offset 72
int limit; // offset 80
} ubuf;
void main()
{
vec4 color1 = vec4(1.0, 0.85, 0.55, 1);
vec4 color2 = vec4(0.226, 0.0, 0.615, 1);
float aspect_ratio = -ubuf.qt_Matrix[0][0]/ubuf.qt_Matrix[1][1];
vec2 z, c;
c.x = (vTexCoord.x - 0.5) / ubuf.zoom + ubuf.center.x;
c.y = aspect_ratio * (vTexCoord.y - 0.5) / ubuf.zoom + ubuf.center.y;
int iLast;
z = c;
for (int i = 0; i < 1000000; i++) {
if (i >= ubuf.limit)
{
iLast = i;
break;
}
float x = (z.x * z.x - z.y * z.y) + c.x;
float y = (z.y * z.x + z.x * z.y) + c.y;
if ((x * x + y * y) > 4.0)
{
iLast = i;
break;
}
z.x = x;
z.y = y;
}
if (iLast == ubuf.limit) {
fragColor = vec4(0.0, 0.0, 0.0, 1.0);
} else {
float f = (iLast * 1.0) / ubuf.limit;
fragColor = mix(color1, color2, sqrt(f));
}
}Los sombreadores de fragmentos y de vértices se combinan en una subclase de ` QSGMaterialShader `.
class CustomShader : public QSGMaterialShader
{
public:
CustomShader()
{
setShaderFileName(VertexStage, QLatin1String(":/scenegraph/custommaterial/shaders/mandelbrot.vert.qsb"));
setShaderFileName(FragmentStage, QLatin1String(":/scenegraph/custommaterial/shaders/mandelbrot.frag.qsb"));
}
bool updateUniformData(RenderState &state,
QSGMaterial *newMaterial, QSGMaterial *oldMaterial) override;
};Una subclase de ` QSGMaterial ` encapsula el sombreador junto con el estado de renderizado. En este ejemplo, añadimos información de estado correspondiente a los uniformes del sombreador. El material se encarga de crear el sombreador reimplementando ` QSGMaterial::createShader()`.
class CustomMaterial : public QSGMaterial
{
public:
CustomMaterial();
QSGMaterialType *type() const override;
int compare(const QSGMaterial *other) const override;
QSGMaterialShader *createShader(QSGRendererInterface::RenderMode) const override
{
return new CustomShader;
}
struct {
float center[2];
float zoom;
int limit;
bool dirty;
} uniforms;
};Para actualizar los datos de los uniformes, reimplementamos ` QSGMaterialShader::updateUniformData()`.
bool CustomShader::updateUniformData(RenderState &state, QSGMaterial *newMaterial, QSGMaterial *oldMaterial)
{
bool changed = false;
QByteArray *buf = state.uniformData();
Q_ASSERT(buf->size() >= 84);
if (state.isMatrixDirty()) {
const QMatrix4x4 m = state.combinedMatrix();
memcpy(buf->data(), m.constData(), 64);
changed = true;
}
if (state.isOpacityDirty()) {
const float opacity = state.opacity();
memcpy(buf->data() + 64, &opacity, 4);
changed = true;
}
auto *customMaterial = static_cast<CustomMaterial *>(newMaterial);
if (oldMaterial != newMaterial || customMaterial->uniforms.dirty) {
memcpy(buf->data() + 68, &customMaterial->uniforms.zoom, 4);
memcpy(buf->data() + 72, &customMaterial->uniforms.center, 8);
memcpy(buf->data() + 80, &customMaterial->uniforms.limit, 4);
customMaterial->uniforms.dirty = false;
changed = true;
}
return changed;
}Elemento y nodo
Creamos un elemento personalizado para mostrar nuestro nuevo material:
#include <QQuickItem>
class CustomItem : public QQuickItem
{
Q_OBJECT
Q_PROPERTY(qreal zoom READ zoom WRITE setZoom NOTIFY zoomChanged)
Q_PROPERTY(int iterationLimit READ iterationLimit WRITE setIterationLimit NOTIFY iterationLimitChanged)
Q_PROPERTY(QPointF center READ center WRITE setCenter NOTIFY centerChanged)
QML_ELEMENT
public:
explicit CustomItem(QQuickItem *parent = nullptr);
qreal zoom() const
{
return m_zoom;
}
int iterationLimit() const
{
return m_limit;
}
QPointF center() const
{
return m_center;
}
public slots:
void setZoom(qreal zoom);
void setIterationLimit(int iterationLimit);
void setCenter(QPointF center);
signals:
void zoomChanged(qreal zoom);
void iterationLimitChanged(int iterationLimit);
void centerChanged(QPointF center);
protected:
QSGNode *updatePaintNode(QSGNode *, UpdatePaintNodeData *) override;
void geometryChange(const QRectF &newGeometry, const QRectF &oldGeometry) override;
private:
bool m_geometryChanged = true;
qreal m_zoom;
bool m_zoomChanged = true;
int m_limit;
bool m_limitChanged = true;
QPointF m_center;
bool m_centerChanged = true;
};La declaración de `CustomItem` añade tres propiedades correspondientes a los uniformes que queremos exponer a QML.
Q_PROPERTY(qreal zoom READ zoom WRITE setZoom NOTIFY zoomChanged)
Q_PROPERTY(int iterationLimit READ iterationLimit WRITE setIterationLimit NOTIFY iterationLimitChanged)
Q_PROPERTY(QPointF center READ center WRITE setCenter NOTIFY centerChanged)Al igual que con cualquier elemento personalizado de Qt Quick, la implementación se divide en dos: además de CustomItem, que reside en el hilo de la interfaz gráfica de usuario, creamos una subclase de QSGNode que reside en el hilo de renderizado.
class CustomNode : public QSGGeometryNode
{
public:
CustomNode()
{
auto *m = new CustomMaterial;
setMaterial(m);
setFlag(OwnsMaterial, true);
QSGGeometry *g = new QSGGeometry(QSGGeometry::defaultAttributes_TexturedPoint2D(), 4);
QSGGeometry::updateTexturedRectGeometry(g, QRect(), QRect());
setGeometry(g);
setFlag(OwnsGeometry, true);
}
void setRect(const QRectF &bounds)
{
QSGGeometry::updateTexturedRectGeometry(geometry(), bounds, QRectF(0, 0, 1, 1));
markDirty(QSGNode::DirtyGeometry);
}
void setZoom(qreal zoom)
{
auto *m = static_cast<CustomMaterial *>(material());
m->uniforms.zoom = zoom;
m->uniforms.dirty = true;
markDirty(DirtyMaterial);
}
void setLimit(int limit)
{
auto *m = static_cast<CustomMaterial *>(material());
m->uniforms.limit = limit;
m->uniforms.dirty = true;
markDirty(DirtyMaterial);
}
void setCenter(const QPointF ¢er)
{
auto *m = static_cast<CustomMaterial *>(material());
m->uniforms.center[0] = center.x();
m->uniforms.center[1] = center.y();
m->uniforms.dirty = true;
markDirty(DirtyMaterial);
}
};El nodo posee una instancia del material y cuenta con la lógica necesaria para actualizar el estado del mismo. El elemento mantiene las propiedades QML correspondientes. Es necesario duplicar la información del material, ya que el elemento y el material se ejecutan en hilos diferentes.
void CustomItem::setZoom(qreal zoom)
{
if (qFuzzyCompare(m_zoom, zoom))
return;
m_zoom = zoom;
m_zoomChanged = true;
emit zoomChanged(m_zoom);
update();
}
void CustomItem::setIterationLimit(int limit)
{
if (m_limit == limit)
return;
m_limit = limit;
m_limitChanged = true;
emit iterationLimitChanged(m_limit);
update();
}
void CustomItem::setCenter(QPointF center)
{
if (m_center == center)
return;
m_center = center;
m_centerChanged = true;
emit centerChanged(m_center);
update();
}La información se copia del elemento al grafo de escena en una reimplementación de QQuickItem::updatePaintNode(). Los dos hilos se encuentran en un punto de sincronización cuando se llama a la función, por lo que es seguro acceder a ambas clases.
QSGNode *CustomItem::updatePaintNode(QSGNode *old, UpdatePaintNodeData *)
{
auto *node = static_cast<CustomNode *>(old);
if (!node)
node = new CustomNode;
if (m_geometryChanged)
node->setRect(boundingRect());
m_geometryChanged = false;
if (m_zoomChanged)
node->setZoom(m_zoom);
m_zoomChanged = false;
if (m_limitChanged)
node->setLimit(m_limit);
m_limitChanged = false;
if (m_centerChanged)
node->setCenter(m_center);
m_centerChanged = false;
return node;
}El resto del ejemplo
La aplicación es una sencilla aplicación QML, con un ` QGuiApplication ` y un ` QQuickView ` al que pasamos un archivo .qml.
En el archivo QML, creamos el «customitem» que anclamos para que ocupe toda la raíz.
CustomItem {
property real t: 1
anchors.fill: parent
center: Qt.point(-0.748, 0.1);
iterationLimit: 3 * (zoom + 30)
zoom: t * t / 10
NumberAnimation on t {
from: 1
to: 60
duration: 30*1000;
running: true
loops: Animation.Infinite
}
}Para que el ejemplo resulte un poco más interesante, añadimos una animación para cambiar el nivel de zoom y el límite de iteraciones. El centro permanece constante.
