SCXML Invoke

Invoca una máquina de estados anidada compilada.

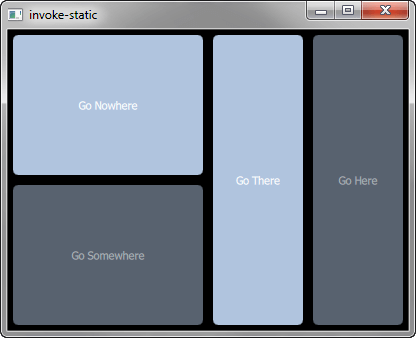

Ventana con cuatro paneles: «No vayas a ningún sitio», «Ve a algún sitio», «Ve allí» y «Ve aquí»

Invoke muestra cómo utilizar el elemento « <invoke> » con máquinas de estados anidadas generadas, en las que el archivo SCXML se compila en una clase de C++. El elemento « <invoke> » se utiliza para crear una instancia de un servicio externo.

Ejecución del ejemplo

Puede ejecutar el ejemplo desde:

Iniciar la máquina de estados

En statemachine.scxml, especificamos una máquina de estados con el nombre DirectionsStateMachine, de tipo http://www.w3.org/TR/scxml/, para invocarla:

<scxml
    xmlns="http://www.w3.org/2005/07/scxml"
    version="1.0"
    name="DirectionsStateMachine"
    initial="anyplace"
>
    <state id="anyplace">
        <transition event="goNowhere" target="nowhere"/>
        <transition event="goSomewhere" target="somewhere"/>

        <state id="nowhere"/>
        <state id="somewhere">
            <invoke type="http://www.w3.org/TR/scxml/">
                <content>
                    <scxml name="anywhere" version="1.0">
                        <state id="here">
                            <transition event="goThere" target="there"/>
                        </state>
                        <state id="there">
                            <transition event="goHere" target="here"/>
                        </state>
                    </scxml>
                </content>
            </invoke>
        </state>
    </state>
</scxml>

Compilación de la máquina de estados

Enlazamos con el módulo « Qt SCXML » añadiendo las siguientes líneas a los archivos de compilación del ejemplo.

invoke.pro al utilizar qmake:
QT += qml scxml

A continuación, especificamos la máquina de estados que se va a compilar:

STATECHARTS = statemachine.scxml
CMakeLists.txt al utilizar cmake:
find_package(Qt6 REQUIRED COMPONENTS Core Gui Qml Scxml)

target_link_libraries(invoke PRIVATE
    Qt6::Core
    Qt6::Gui
    Qt6::Qml
    Qt6::Scxml
)

A continuación, especificamos la máquina de estados que se va a compilar:

qt6_add_statecharts(invoke
    statemachine.scxml
)

Las directivas de diagramas de estados STATECHARTS o qt6_add_statecharts invocan el compilador Qt SCXML, qscxmlc, que se ejecuta automáticamente para generar statemachine.h y statemachine.cpp, que luego se añaden adecuadamente como encabezados y archivos fuente para la compilación.

Declaración de la máquina de estados como elemento QML

La máquina de estados se declara como un elemento QML de la siguiente manera:

struct DirectionsStateMachineRegistration
{
    Q_GADGET
    QML_FOREIGN(DirectionsStateMachine)
    QML_NAMED_ELEMENT(DirectionsStateMachine)
    QML_ADDED_IN_VERSION(1, 0)
};

Instanciación de la máquina de estados

Instanciamos el elemento ` DirectionsStateMachine ` generado en el archivo ` MainView.qml `, de la siguiente manera:

    DirectionsStateMachine {
        id: stateMachine
        running: true
    }

Proyecto de ejemplo en code.qt.io
