Ejemplo sencillo de diseño con anclajes

Muestra el diseño de anclajes en una escena de vista gráfica.

El ejemplo «Diseño sencillo con anclajes» muestra el uso básico de la clase QGraphicsAnchorLayout.

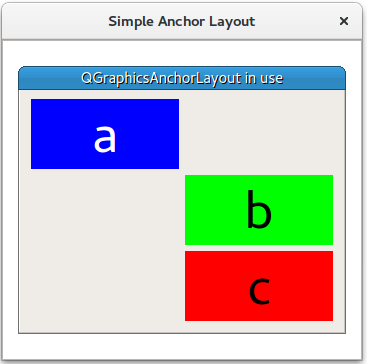

Aplicación que utiliza diseños de anclaje para colocar widgets

El ejemplo comienza creando un ` QGraphicsScene ` (scene), tres widgets (a, b y c) y un `QGraphicsAnchorLayout` (layout).

    QGraphicsScene scene;

    Widget *a = new Widget(Qt::blue, Qt::white, "a");
    a->setPreferredSize(100, 100);
    Widget *b = new Widget(Qt::green, Qt::black, "b");
    b->setPreferredSize(100, 100);
    Widget *c = new Widget(Qt::red, Qt::black, "c");
    c->setPreferredSize(100, 100);

    QGraphicsAnchorLayout *layout = new QGraphicsAnchorLayout;

En primer lugar, fija la esquina superior izquierda del elemento a a la esquina superior izquierda de layout. Esto se puede hacer en dos pasos:

    layout->addAnchor(a, Qt::AnchorTop, layout, Qt::AnchorTop);
    layout->addAnchor(a, Qt::AnchorLeft, layout, Qt::AnchorLeft);

O en un solo paso:

    layout->addCornerAnchors(a, Qt::TopLeftCorner, layout, Qt::TopLeftCorner);

A continuación, el anclaje derecho de a se fija al anclaje izquierdo de b, y la parte superior del elemento b se fija a la parte inferior de a.

    layout->addAnchor(b, Qt::AnchorLeft, a, Qt::AnchorRight);
    layout->addAnchor(b, Qt::AnchorTop, a, Qt::AnchorBottom);

Coloca un tercer widget c debajo del widget b:

    layout->addAnchor(b, Qt::AnchorBottom, c, Qt::AnchorTop);

Los elementos b y c están anclados entre sí horizontalmente:

    layout->addAnchors(b, c, Qt::Horizontal);

El elemento c está anclado al punto inferior derecho de layout

    layout->addCornerAnchors(c, Qt::BottomRightCorner, layout, Qt::BottomRightCorner);

Por último, QGraphicsWidget w se muestra en QGraphicsView view .

    auto w = new QGraphicsWidget(nullptr, Qt::Window | Qt::CustomizeWindowHint | Qt::WindowTitleHint);
    w->setPos(20, 20);
    w->setMinimumSize(100, 100);
    w->setPreferredSize(320, 240);
    w->setLayout(layout);
    w->setWindowTitle(QApplication::translate("simpleanchorlayout", "QGraphicsAnchorLayout in use"));
    scene.addItem(w);

    QGraphicsView view;
    view.setScene(&scene);
    view.setWindowTitle(QApplication::translate("simpleanchorlayout", "Simple Anchor Layout"));

    view.resize(360, 320);
    view.show();

    return app.exec();
