Qt Graphs 集成Qt Quick 3D
由于Qt Graphs for 3D 基于Qt Quick 3D ,因此可以将Qt Quick 3D 场景集成到图形中。
场景环境
要在图形中调整Qt Quick 3D 场景环境,请在图形的environment
属性中定义SceneEnvironment
或ExtendedSceneEnvironment
,如下所示:
environment: ExtendedSceneEnvironment { aoEnabled: true aoDither: true ditheringEnabled: true lightProbe: Texture { textureData: ProceduralSkyTextureData { groundBottomColor: "black" skyTopColor: "white" } } backgroundMode: SceneEnvironment.SkyBox lensFlareEnabled: true lensFlareGhostCount: 10 lensFlareApplyStarburstTexture: true lensFlareBloomBias: 0.4 }
不支持的功能
覆盖抗锯齿模式或场景透明色不起作用,这意味着为SceneEnvironment.antialiasingMode
和SceneEnvironment.clearColor
设置值不起作用。但是,如果backgroundMode
没有设置为SceneEnvironment.Color
,背景将受到设置的影响。

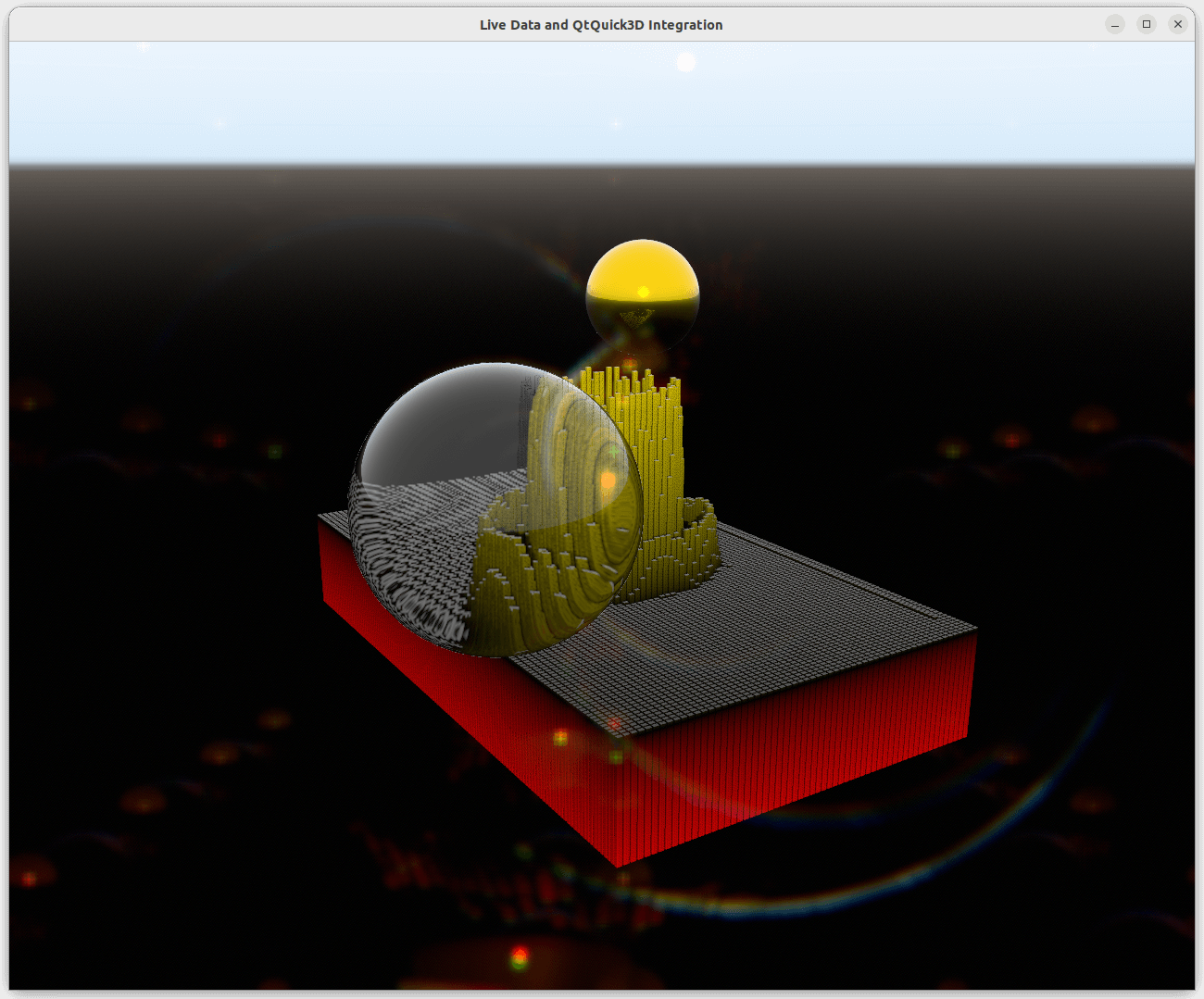

场景集成
要将Qt Quick 3D 场景集成到图形中,请将图形的importScene
属性设置为Node
,并进行以下设置:
importScene: Node { Model { scale: Qt.vector3d(0.01, 0.01, 0.01) source: "#Sphere" x: 2.5 z: 2 y: 1 castsReflections: false receivesReflections: true materials: [ PrincipledMaterial { baseColor: "gold" metalness: 1.0 roughness: 0.1 } ] ReflectionProbe { boxSize: Qt.vector3d(6, 3, 5) boxOffset: Qt.vector3d(-1.5, -1, -1.5) parallaxCorrection: true quality: ReflectionProbe.High } } Model { scale: Qt.vector3d(0.01, 0.01, 0.01) source: "#Sphere" x: -2.5 z: -2 y: 1 castsReflections: false receivesReflections: true materials: [ PrincipledMaterial { baseColor: "white" metalness: 0.0 roughness: 0.0 transmissionFactor: 1.0 thicknessFactor: 50 } ] } }
直接将Nodes 添加为图形的子代将不起作用,因为图形的默认子代是相应的系列。
