DTLS 客户端

本例演示如何实现客户端 DTLS 连接。

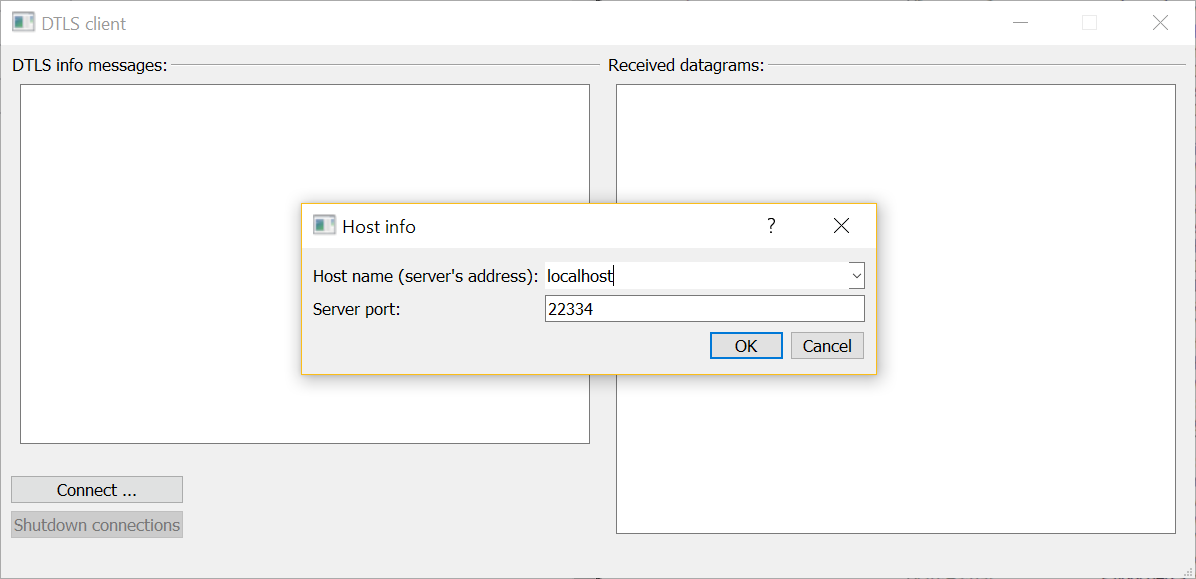

DTLS 客户端示例截图。

注意： DTLS 客户端示例应与DTLS 服务器示例同时运行。

示例中的 DTLS 客户端可以与一个或多个 DTLS 服务器建立多个 DTLS 连接。客户端 DTLS 连接由 DtlsAssociation 类实现。该类使用QUdpSocket 读写数据报，并使用QDtls 进行加密：

class DtlsAssociation : public QObject
{
    Q_OBJECT

public:
    DtlsAssociation(const QHostAddress &address, quint16 port,
                    const QString &connectionName);
    ~DtlsAssociation();
    void startHandshake();

signals:
    void errorMessage(const QString &message);
    void warningMessage(const QString &message);
    void infoMessage(const QString &message);
    void serverResponse(const QString &clientInfo, const QByteArray &datagraam,
                        const QByteArray &plainText);

private slots:
    void udpSocketConnected();
    void readyRead();
    void handshakeTimeout();
    void pskRequired(QSslPreSharedKeyAuthenticator *auth);
    void pingTimeout();

private:
    QString name;
    QUdpSocket socket;
    QDtls crypto;

    QTimer pingTimer;
    unsigned ping = 0;

    Q_DISABLE_COPY(DtlsAssociation)
};

构造函数为新的 DTLS 连接设置最小 TLS 配置，并设置服务器的地址和端口：

    ...
auto configuration = QSslConfiguration::defaultDtlsConfiguration();
configuration.setPeerVerifyMode(QSslSocket::VerifyNone);
crypto.setPeer(address, port);
crypto.setDtlsConfiguration(configuration);
    ...

QDtls::handshakeTimeout() 信号连接到 handleTimeout() 槽，以处理握手阶段的数据包丢失和重传：

    ...
connect(&crypto, &QDtls::handshakeTimeout, this, &DtlsAssociation::handshakeTimeout);
    ...

为确保只接收来自服务器的数据报，我们将 UDP 套接字连接到服务器：

    ...
socket.connectToHost(address.toString(), port);
    ...

QUdpSocket::readyRead() 信号连接到 readyRead() 时隙：

    ...
connect(&socket, &QUdpSocket::readyRead, this, &DtlsAssociation::readyRead);
    ...

当与服务器的安全连接建立后，DtlsAssociation 对象将使用定时器向服务器发送 ping 短消息：

pingTimer.setInterval(5000);
connect(&pingTimer, &QTimer::timeout, this, &DtlsAssociation::pingTimeout);

startHandshake() 开始与服务器握手：

void DtlsAssociation::startHandshake()
{
    if (socket.state() != QAbstractSocket::ConnectedState) {
        emit infoMessage(tr("%1: connecting UDP socket first ...").arg(name));
        connect(&socket, &QAbstractSocket::connected, this, &DtlsAssociation::udpSocketConnected);
        return;
    }

    if (!crypto.doHandshake(&socket))
        emit errorMessage(tr("%1: failed to start a handshake - %2").arg(name, crypto.dtlsErrorString()));
    else
        emit infoMessage(tr("%1: starting a handshake").arg(name));
}

readyRead() 槽读取服务器发送的数据报：

QByteArray dgram(socket.pendingDatagramSize(), Qt::Uninitialized);
const qint64 bytesRead = socket.readDatagram(dgram.data(), dgram.size());
if (bytesRead <= 0) {
    emit warningMessage(tr("%1: spurious read notification?").arg(name));
    return;
}

dgram.resize(bytesRead);

如果握手已经完成，则对该数据报进行解密：

if (crypto.isConnectionEncrypted()) {
    const QByteArray plainText = crypto.decryptDatagram(&socket, dgram);
    if (plainText.size()) {
        emit serverResponse(name, dgram, plainText);
        return;
    }

    if (crypto.dtlsError() == QDtlsError::RemoteClosedConnectionError) {
        emit errorMessage(tr("%1: shutdown alert received").arg(name));
        socket.close();
        pingTimer.stop();
        return;
    }

    emit warningMessage(tr("%1: zero-length datagram received?").arg(name));
} else {

否则，我们尝试继续握手：

    if (!crypto.doHandshake(&socket, dgram)) {
        emit errorMessage(tr("%1: handshake error - %2").arg(name, crypto.dtlsErrorString()));
        return;
    }

握手完成后，我们发送第一条 ping 消息：

    if (crypto.isConnectionEncrypted()) {
        emit infoMessage(tr("%1: encrypted connection established!").arg(name));
        pingTimer.start();
        pingTimeout();
    } else {

pskRequired()槽提供握手阶段所需的预共享密钥（PSK）：

void DtlsAssociation::pskRequired(QSslPreSharedKeyAuthenticator *auth)
{
    Q_ASSERT(auth);

    emit infoMessage(tr("%1: providing pre-shared key ...").arg(name));
    auth->setIdentity(name.toLatin1());
    auth->setPreSharedKey(QByteArrayLiteral("\x1a\x2b\x3c\x4d\x5e\x6f"));
}

注：为简洁起见，pskRequired() 的定义过于简化。QSslPreSharedKeyAuthenticator 类的文档详细解释了如何正确执行此插槽。

pingTimeout() 向服务器发送加密信息：

void DtlsAssociation::pingTimeout()
{
    static const QString message = QStringLiteral("I am %1, please, accept our ping %2");
    const qint64 written = crypto.writeDatagramEncrypted(&socket, message.arg(name).arg(ping).toLatin1());
    if (written <= 0) {
        emit errorMessage(tr("%1: failed to send a ping - %2").arg(name, crypto.dtlsErrorString()));
        pingTimer.stop();
        return;
    }

    ++ping;
}

在握手阶段，客户端必须处理由于数据包丢失而可能发生的超时。handshakeTimeout() 插槽会重新传输握手信息：

void DtlsAssociation::handshakeTimeout()
{
    emit warningMessage(tr("%1: handshake timeout, trying to re-transmit").arg(name));
    if (!crypto.handleTimeout(&socket))
        emit errorMessage(tr("%1: failed to re-transmit - %2").arg(name, crypto.dtlsErrorString()));
}

在客户端连接被销毁之前，必须关闭其 DTLS 连接：

DtlsAssociation::~DtlsAssociation()
{
    if (crypto.isConnectionEncrypted())
        crypto.shutdown(&socket);
}

用户界面会显示错误信息、信息和来自服务器的解密响应：

const QString colorizer(QStringLiteral("<font color=\"%1\">%2</font><br>"));

void MainWindow::addErrorMessage(const QString &message)
{
    ui->clientMessages->insertHtml(colorizer.arg(QStringLiteral("Crimson"), message));
}

void MainWindow::addWarningMessage(const QString &message)
{
    ui->clientMessages->insertHtml(colorizer.arg(QStringLiteral("DarkOrange"), message));
}

void MainWindow::addInfoMessage(const QString &message)
{
    ui->clientMessages->insertHtml(colorizer.arg(QStringLiteral("DarkBlue"), message));
}

void MainWindow::addServerResponse(const QString &clientInfo, const QByteArray &datagram,
                                   const QByteArray &plainText)
{
    static const QString messageColor = QStringLiteral("DarkMagenta");
    static const QString formatter = QStringLiteral("<br>---------------"
                                                    "<br>%1 received a DTLS datagram:<br> %2"
                                                    "<br>As plain text:<br> %3");

    const QString html = formatter.arg(clientInfo, QString::fromUtf8(datagram.toHex(' ')),
                                       QString::fromUtf8(plainText));
    ui->serverMessages->insertHtml(colorizer.arg(messageColor, html));
}

示例项目 @ code.qt.io
