场景图 - Metal 纹理导入

演示如何使用直接通过 Metal 创建的纹理。

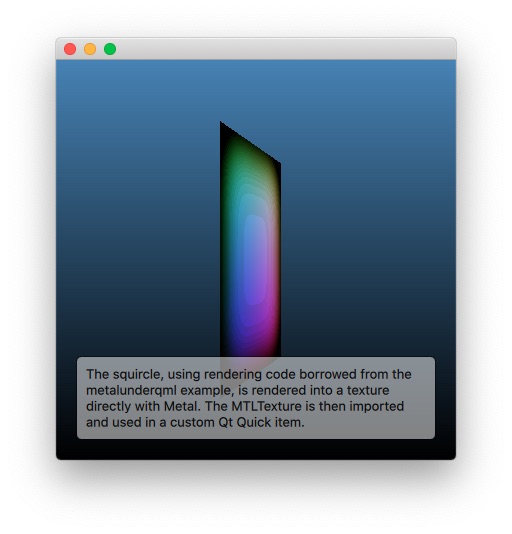

将“Squircle”渲染为 Metal 纹理，并在 <span translate=Qt Quick 控件中显示" src="images/metaltextureimport-example.jpg" title="将“Squircle”渲染为 Metal 纹理，并在 Qt Quick 控件中显示"/>

“Metal 纹理导入”示例演示了应用程序如何在Qt Quick 场景中导入并使用MTLTexture。在集成原生 Metal 渲染时，这为底层覆盖（underlay）或叠加（overlay）方法提供了一种替代方案。 在许多情况下，通过纹理（即先将3D内容“扁平化”）是将自定义3D内容与Qt Quick 提供的2D UI元素集成和混合的最佳选择。

import MetalTextureImport
CustomTextureItem {
    id: renderer
    anchors.fill: parent
    anchors.margins: 10

    SequentialAnimation on t {
        NumberAnimation { to: 1; duration: 2500; easing.type: Easing.InQuad }
        NumberAnimation { to: 0; duration: 2500; easing.type: Easing.OutQuad }
        loops: Animation.Infinite
        running: true
    }

该应用程序以 CustomTextureItem 为名，提供了一个自定义的QQuickItem 子类。该类在 QML 中被实例化。t 属性的值也会进行动画效果处理。

class CustomTextureItem : public QQuickItem
{
    Q_OBJECT
    Q_PROPERTY(qreal t READ t WRITE setT NOTIFY tChanged)
    QML_ELEMENT

public:
    CustomTextureItem();

    qreal t() const { return m_t; }
    void setT(qreal t);

signals:
    void tChanged();

protected:
    QSGNode *updatePaintNode(QSGNode *, UpdatePaintNodeData *) override;
    void geometryChange(const QRectF &newGeometry, const QRectF &oldGeometry) override;

private slots:
    void invalidateSceneGraph();

private:
    void releaseResources() override;

    CustomTextureNode *m_node = nullptr;
    qreal m_t = 0;
};

自定义项的实现涉及重写QQuickItem::updatePaintNode()方法，以及与几何变化和清理相关的函数和槽。

class CustomTextureNode : public QSGTextureProvider, public QSGSimpleTextureNode
{
    Q_OBJECT

public:
    CustomTextureNode(QQuickItem *item);
    ~CustomTextureNode();

    QSGTexture *texture() const override;

    void sync();

我们还需要一个场景图节点。与其直接从 `QSGNode` 派生，我们不妨使用 `QSGSimpleTextureNode `，它预先实现了一些功能，使用起来更为便捷。

QSGNode *CustomTextureItem::updatePaintNode(QSGNode *node, UpdatePaintNodeData *)
{
    CustomTextureNode *n = static_cast<CustomTextureNode *>(node);

    if (!n && (width() <= 0 || height() <= 0))
        return nullptr;

    if (!n) {
        m_node = new CustomTextureNode(this);
        n = m_node;
    }

    m_node->sync();

    n->setTextureCoordinatesTransform(QSGSimpleTextureNode::NoTransform);
    n->setFiltering(QSGTexture::Linear);
    n->setRect(0, 0, width(), height());

    window()->update(); // ensure getting to beforeRendering() at some point

    return n;
}

该项的 updatePaintNode() 函数将在渲染线程（若存在）上调用，此时主（GUI）线程会被阻塞。在此，如果尚未创建节点，则创建一个新节点并对其进行更新。 在此处访问位于主线程上的 Qt 对象是安全的，因此 sync() 会从QQuickItem 或QQuickWindow 中计算并复制所需的值。

CustomTextureNode::CustomTextureNode(QQuickItem *item)
    : m_item(item)
{
    m_window = m_item->window();
    connect(m_window, &QQuickWindow::beforeRendering, this, &CustomTextureNode::render);
    connect(m_window, &QQuickWindow::screenChanged, this, [this]() {
        if (m_window->effectiveDevicePixelRatio() != m_dpr)
            m_item->update();
    });

该节点不仅依赖典型的QQuickItem -QSGNode 更新序列，还会连接到QQuickWindow::beforeRendering()。 此时，通过在 Qt Quick 场景图的命令缓冲区中针对该纹理编码完整的渲染通道，Metal 纹理的内容将被更新。beforeRendering() 是执行此操作的合适位置，因为该信号是在Qt Quick 开始编码其自身的渲染命令之前发出的。 在此示例中，若选择QQuickWindow::beforeRenderPassRecording()则会出错。

void CustomTextureNode::sync()
{
    m_dpr = m_window->effectiveDevicePixelRatio();
    const QSize newSize = m_window->size() * m_dpr;
    bool needsNew = false;

    if (!texture())
        needsNew = true;

    if (newSize != m_size) {
        needsNew = true;
        m_size = newSize;
    }

    if (needsNew) {
        delete texture();
        [m_texture release];

        QSGRendererInterface *rif = m_window->rendererInterface();
        m_device = (id<MTLDevice>) rif->getResource(m_window, QSGRendererInterface::DeviceResource);
        Q_ASSERT(m_device);

        MTLTextureDescriptor *desc = [[MTLTextureDescriptor alloc] init];
        desc.textureType = MTLTextureType2D;
        desc.pixelFormat = MTLPixelFormatRGBA8Unorm;
        desc.width = m_size.width();
        desc.height = m_size.height();
        desc.mipmapLevelCount = 1;
        desc.resourceOptions = MTLResourceStorageModePrivate;
        desc.storageMode = MTLStorageModePrivate;
        desc.usage = MTLTextureUsageShaderRead | MTLTextureUsageRenderTarget;
        m_texture = [m_device newTextureWithDescriptor: desc];
        [desc release];

        QSGTexture *wrapper = QNativeInterface::QSGMetalTexture::fromNative(m_texture, m_window, m_size);

        qDebug() << "Got QSGTexture wrapper" << wrapper << "for an MTLTexture of size" << m_size;

        setTexture(wrapper);
    }
    m_t = float(static_cast<CustomTextureItem *>(m_item)->t());

在复制所需值之后，`sync()` 还会执行一些图形资源的初始化工作。首先从场景图中查询 `MTLDevice`。一旦获得 `MTLTexture`，便通过 `QNativeInterface::QSGOpenGLTexture::fromNative()` 创建一个包装（而非拥有）它的 `QSGTexture `。最后，通过调用基类的 `setTexture()` 函数，将 `QSGTexture ` 与底层材质关联起来。

void CustomTextureNode::render()
{
    if (!m_initialized)
        return;

    // Render to m_texture.
    MTLRenderPassDescriptor *renderpassdesc = [MTLRenderPassDescriptor renderPassDescriptor];
    MTLClearColor c = MTLClearColorMake(0, 0, 0, 1);
    renderpassdesc.colorAttachments[0].loadAction = MTLLoadActionClear;
    renderpassdesc.colorAttachments[0].storeAction = MTLStoreActionStore;
    renderpassdesc.colorAttachments[0].clearColor = c;
    renderpassdesc.colorAttachments[0].texture = m_texture;

    QSGRendererInterface *rif = m_window->rendererInterface();
    id<MTLCommandBuffer> cb = (id<MTLCommandBuffer>) rif->getResource(m_window, QSGRendererInterface::CommandListResource);
    Q_ASSERT(cb);
    id<MTLRenderCommandEncoder> encoder = [cb renderCommandEncoderWithDescriptor: renderpassdesc];

    const QQuickWindow::GraphicsStateInfo &stateInfo(m_window->graphicsStateInfo());
    void *p = [m_ubuf[stateInfo.currentFrameSlot] contents];
    memcpy(p, &m_t, 4);

    MTLViewport vp;
    vp.originX = 0;
    vp.originY = 0;
    vp.width = m_size.width();
    vp.height = m_size.height();
    vp.znear = 0;
    vp.zfar = 1;
    [encoder setViewport: vp];

    [encoder setFragmentBuffer: m_ubuf[stateInfo.currentFrameSlot] offset: 0 atIndex: 0];
    [encoder setVertexBuffer: m_vbuf offset: 0 atIndex: 1];
    [encoder setRenderPipelineState: m_pipeline];
    [encoder drawPrimitives: MTLPrimitiveTypeTriangleStrip vertexStart: 0 vertexCount: 4 instanceCount: 1 baseInstance: 0];

    [encoder endEncoding];
}

render() 方法（该方法与 beforeRendering() 槽连接）使用在 sync() 中创建的缓冲区和管道状态对象来编码渲染命令。

示例项目 @ code.qt.io
