PathCurve QML Type

Define un punto en una curva de Catmull-Rom. Más...

Import Statement: import QtQuick

Propiedades

Descripción detallada

PathCurve ofrece una forma sencilla de especificar una curva que pase directamente por un conjunto de puntos. Normalmente se utilizan varias PathCurves en serie, tal y como muestra el siguiente ejemplo:

import QtQuick

Canvas {
    width: 400; height: 200
    contextType: "2d"

    Path {
        id: myPath
        startX: 0; startY: 100

        PathCurve { x: 75; y: 75 }
        PathCurve { x: 200; y: 150 }
        PathCurve { x: 325; y: 25 }
        PathCurve { x: 400; y: 100 }
    }

    onPaint: {
        context.strokeStyle = Qt.rgba(.4,.6,.8);
        context.path = myPath;
        context.stroke();
    }
}

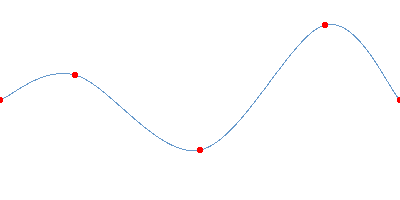

Este ejemplo genera la siguiente trayectoria (con el punto inicial y los puntos de la PathCurve resaltados en rojo):

Curva de Catmull-Rom que pasa por cinco puntos resaltados en rojo y forma un patrón ondulado

Véase también Path, PathLine, PathQuad, PathCubic, PathArc y PathSvg.

Documentación de la propiedad

relativeX : real

relativeY : real

Define el punto final de la curva con respecto a su punto inicial.

Si se especifican tanto una posición final relativa como una absoluta para un mismo eje, se utilizará la posición relativa.

Se pueden combinar posiciones relativas y absolutas; por ejemplo, es válido establecer una x relativa y una y absoluta.

Véase también x y y.

x : real

y : real

Define el punto final de la curva.

Véase también relativeX y relativeY.
