Uso de ejes de valores logarítmicos

Nota: Esto forma parte del ejemplo «Galería de gráficos con widgets ».

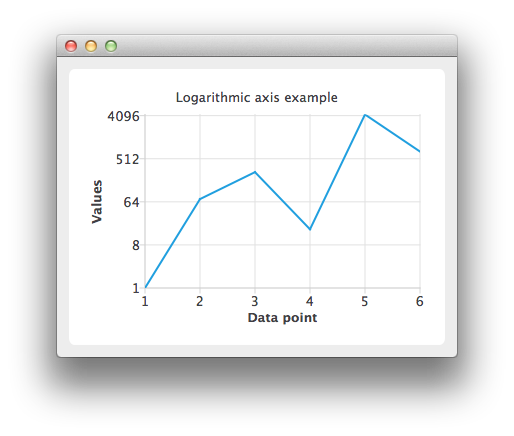

Captura de pantalla en la que se muestra un gráfico de líneas en el que los valores del eje Y son logarítmicos

Crea una instancia de QLineSeries y añádele algunos datos.

auto series = new QLineSeries;
*series << QPointF(1.0, 1.0) << QPointF(2.0, 73.0) << QPointF(3.0, 268.0) << QPointF(4.0, 17.0)
        << QPointF(5.0, 4325.0) << QPointF(6.0, 723.0);

Para representar los datos en el gráfico, necesitamos una instancia de QChart. Añádele la serie, oculta la leyenda y establece el título del gráfico.

auto chart = new QChart;
chart->addSeries(series);
chart->legend()->hide();
chart->setTitle("Logarithmic Axis");

Crea los ejes. Añádelos al gráfico y vincúlalos a la serie.

auto axisX = new QValueAxis;
axisX->setTitleText("Data point");
axisX->setLabelFormat("%i");
axisX->setTickCount(series->count());
chart->addAxis(axisX, Qt::AlignBottom);
series->attachAxis(axisX);

auto axisY = new QLogValueAxis;
axisY->setTitleText("Values");
axisY->setLabelFormat("%g");
axisY->setBase(8.0);
axisY->setMinorTickCount(-1);
chart->addAxis(axisY, Qt::AlignLeft);
series->attachAxis(axisY);

A continuación, crea un objeto QChartView con QChart como parámetro.

createDefaultChartView(chart);

El gráfico ya está listo para mostrarse.
