Personalización de leyendas

Nota: Esto es parte del ejemplo de la Galería de Gráficos con QML.

Aquí le mostramos cómo crear su propia leyenda personalizada en lugar de utilizar la leyenda incorporada de la API ChartView.

La vista principal de la aplicación muestra un gráfico de áreas apiladas. Así es como se crea una de las áreas apiladas. Ver ChartViewStacked.qml y AnimatedAreaSeries.qml.

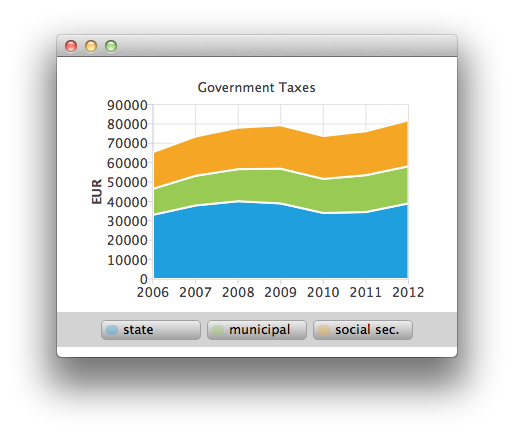

Captura de pantalla que muestra los impuestos del gobierno como múltiples gráficos de área apilados unos sobre otros, siendo el gráfico naranja el de la seguridad social, el verde el municipal y el azul el estatal.

AnimatedAreaSeries {
    id: municipalSeries
    name: "municipal"
    axisX: axisX
    axisY: axisY
    borderWidth: 0
    upperSeries: LineSeries {
        id: municipalUpper
        XYPoint { x: 2006; y: 33119 + 13443 }
        XYPoint { x: 2007; y: 37941 + 15311 }
        XYPoint { x: 2008; y: 40122 + 16552 }
        XYPoint { x: 2009; y: 38991 + 17904 }
        XYPoint { x: 2010; y: 34055 + 17599 }
        XYPoint { x: 2011; y: 34555 + 19002 }
        XYPoint { x: 2012; y: 38991 + 19177 }
    }
    lowerSeries: stateUpper
}

Al pasar el ratón por encima de la leyenda se resaltará la serie sobre la que se pase el ratón. (ver CustomLegend.qml).

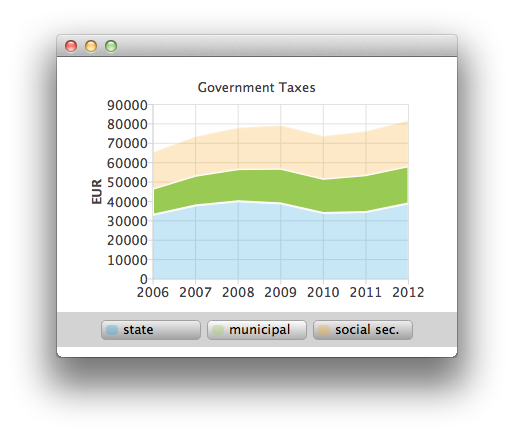

Captura de pantalla que muestra que si el ratón pasa por encima de una de las tres leyendas (estatal, municipal, seguridad social), se resaltará el área asociada.

Row {
    id: legendRow
    anchors.centerIn: parent
    spacing: 10

    Repeater {
        id: legendRepeater
        model: legend.seriesCount
        delegate: legendDelegate
    }
}
Component {
    id: legendDelegate
    Rectangle {
        id: rect
    ...
        MouseArea {
            id: mouseArea
            anchors.fill: parent
            hoverEnabled: true
            onEntered: {
                rect.gradient = buttonGradientHovered;
                legend.entered(label.text);
            }
            onExited: {
                rect.gradient = buttonGradient;
                legend.exited(label.text);
                marker.opacity = 0.3;
                marker.height = 10;
            }
            onClicked: {
                legend.selected(label.text);
                marker.opacity = 1.0;
                marker.height = 12;
            }
        }

También puede seleccionar una de las áreas apiladas para verla más de cerca como una serie de líneas haciendo clic con el ratón (ver ChartViewHighlighted.qml).

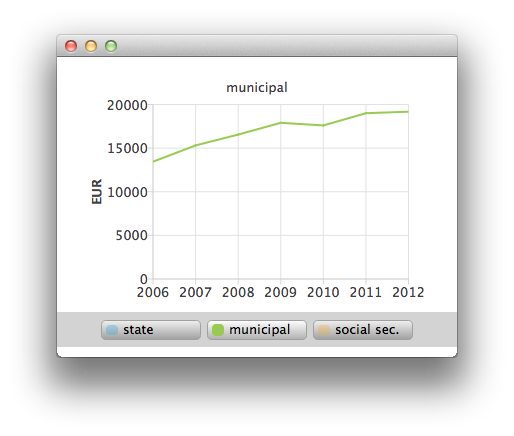

Captura de pantalla que muestra que si se pulsa un gráfico de área de los tres, se mostrará el curso del área.

ChartView {
    id: chartViewHighlighted

    property variant selectedSeries

    signal clicked

    legend.visible: false
    margins.top: 10
    margins.bottom: 0
    antialiasing: true

    LineSeries {
        id: lineSeries

        axisX: ValueAxis {
            min: 2006
            max: 2012
            labelFormat: "%.0f"
            tickCount: 7
        }
        axisY: ValueAxis {
            id: axisY
            titleText: "EUR"
            min: 0
            max: 40000
            labelFormat: "%.0f"
            tickCount: 5
        }
    }
