Qt Quick Ejemplos: efectos de sombreado

Un ejemplo de Qt Quick que muestra el uso de efectos de sombreador.

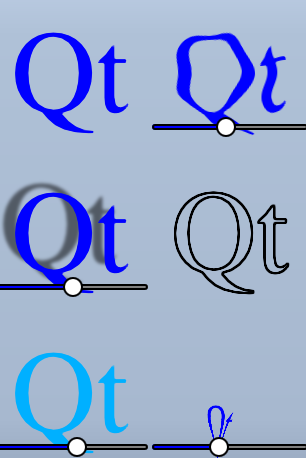

Texto Qt con diversos efectos de sombreado, como «genie», «outline», «shadow» y «wobble»

Este ejemplo muestra algunos efectos visuales que se pueden crear con los sombreadores en Qt Quick. Aplica cinco efectos diferentes a un texto y a un par de imágenes. Para obtener más información, visita «Conceptos importantes en Qt Quick » - Graphical Effects

Ejecución del ejemplo

Puede ejecutar el ejemplo desde:

Uso de ShaderEffect

El tipo ` ShaderEffect ` suele operar sobre otros tipos, utilizando un ` ShaderEffectSource`:

ShaderEffectSource {
    id: theSource
    sourceItem: theItem
}

En el fragmento de código anterior, ` theItem ` es el identificador de un objeto QML complejo del archivo.

Los ShaderEffects pueden utilizar este ShaderEffectSource como textura en su fragment shader:

fragmentShader: "content/shaders/wobble.frag.qsb"

Para admitir múltiples API gráficas, no solo OpenGL, el código fuente del sombreador no está incrustado en QML. El archivo .qsb al que se hace referencia es un paquete de sombreadores pregenerado que contiene múltiples variantes del código del sombreador. Qt Quick selecciona el shader adecuado en tiempo de ejecución, en función de la API gráfica (Vulkan, Metal, Direct3D 11 u OpenGL) utilizada en ese momento. El archivo .qsb se genera fuera de línea y se incluye con el ejecutable a través del sistema de recursos de Qt.

Puedes utilizar cualquier propiedad personalizada de ShaderEffect en tu sombreador. Esto facilita mucho la creación de código de sombreador animado:

property variant source: theSource
property real bend
property real minimize
property real side: genieSlider.value
SequentialAnimation on bend {
    loops: Animation.Infinite
    NumberAnimation { to: 1; duration: 700; easing.type: Easing.InOutSine }
    PauseAnimation { duration: 1600 }
    NumberAnimation { to: 0; duration: 700; easing.type: Easing.InOutSine }
    PauseAnimation { duration: 1000 }
}
SequentialAnimation on minimize {
    loops: Animation.Infinite
    PauseAnimation { duration: 300 }
    NumberAnimation { to: 1; duration: 700; easing.type: Easing.InOutSine }
    PauseAnimation { duration: 1000 }
    NumberAnimation { to: 0; duration: 700; easing.type: Easing.InOutSine }
    PauseAnimation { duration: 1300 }
}

ShaderEffects también puede tener un sombreador de vértices personalizado. Al establecer la propiedad «mesh» en ShaderEffect, se proporcionan más vértices para manipular, lo que permite crear más efectos.

mesh: Qt.size(10, 10)
vertexShader: "content/shaders/genie.vert.qsb"

Proyecto de ejemplo en code.qt.io
