Qt Canvas Painter - 갤러리 예제

Qt Quick 애플리케이션에서 QCanvasPainter 의 기능을 보여줍니다.

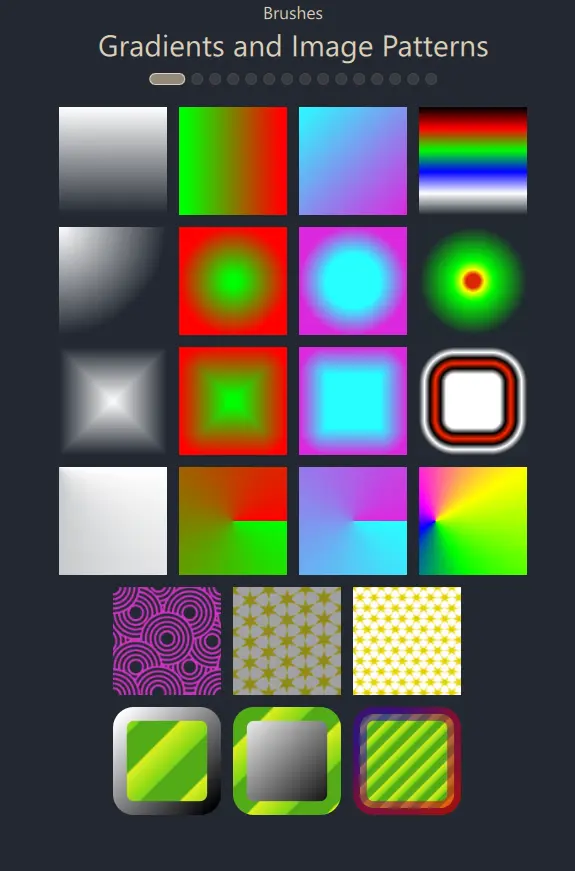

‘그라데이션 및 이미지 패턴’이라는 제목의 브러시 갤러리로, 그라데이션 견본과 패턴 타일이 격자 형태로 배열되어 있습니다.

갤러리 예제는 QCanvasPainter 가 제공하는 다양한 기능을 보여주는 Qt Quick 애플리케이션입니다.

사용자 인터페이스는 본질적으로 ListView 이며, 여기서 델리게이트는 C++로 구현되어 QML에 노출된 GalleryItem 입니다.

class GalleryItem : public QCanvasPainterItem
{
    Q_OBJECT
    QML_NAMED_ELEMENT(GalleryItem)
    Q_PROPERTY(int galleryView READ galleryView WRITE setGalleryView NOTIFY galleryViewChanged)
    Q_PROPERTY(float animationTime READ animationTime WRITE setAnimationTime NOTIFY animationTimeChanged)
    Q_PROPERTY(float animationSine READ animationSine WRITE setAnimationSine NOTIFY animationSineChanged)
    Q_PROPERTY(float animState READ animState WRITE setAnimState NOTIFY animStateChanged)

Qt 5와 OpenGL을 사용했다면 GalleryItem은 QQuickPaintedItem 의 서브클래스가 될 수 있었을 것입니다. Qt 6과 Canvas Painter를 사용함에 따라, 우리는 QQuickPaintedItem 및 QPainter의 일반 소프트웨어 렌더링을 사용하는 대신 QCanvasPainter 을 통해 가속화된 렌더링을 제공하는 QCanvasPainterItem 을 상속받은 서브클래스를 만들 것입니다.

GalleryItem의 구현은 간단합니다. 가상 함수 createItemRenderer()을 재구현하여, QCanvasPainterItemRenderer 의 서브클래스인 GalleryItemRenderer의 인스턴스를 생성합니다.

GalleryItem::GalleryItem(QQuickItem *parent)
:  QCanvasPainterItem(parent)
{
}

QCanvasPainterItemRenderer* GalleryItem::createItemRenderer() const
{
    return new GalleryItemRenderer();
}

실제 그리기 처리는 이 클래스에서 구현됩니다:

class GalleryItemRenderer : public QCanvasPainterItemRenderer
{
public:
    explicit GalleryItemRenderer();
    ~GalleryItemRenderer();

    void initializeResources(QCanvasPainter *painter) override;
    void synchronizeData(QCanvasPainterItem *item) override;
    void paint(QCanvasPainter *painter) override;

initializeResources()는 QImage 를 통해 로드된 이미지와 사용자 정의 브러시용 셰이더를 등록합니다.

void GalleryItemRenderer::initializeResources(QCanvasPainter *painter)
{
    QCanvasPainter::ImageFlags flags = QCanvasPainter::ImageFlag::Repeat | QCanvasPainter::ImageFlag::GenerateMipmaps;
    m_patternImage = painter->addImage(QImage(":/images/pattern1.png"), flags);
    m_patternImage2 = painter->addImage(QImage(":/images/pattern2.png"), flags);
    m_patternImage3 = painter->addImage(QImage(":/images/pattern3.png"), flags);
    m_testImage = painter->addImage(QImage(":/images/qt_development_white.png"));
    m_gradientImage1 = painter->addImage(QImage(":/images/gradient1.png"));
    m_gradientImage2 = painter->addImage(QImage(":/images/gradient2.png"));
    m_gradientImage3 = painter->addImage(QImage(":/images/gradient3.png"));
    image3Gray = painter->addImage(QImage(":/images/face-smile-bw.png"));
    image3Plain = painter->addImage(QImage(":/images/pattern2.png"));
    image3Nearest = painter->addImage(QImage(":/images/pattern2.png"),
                                        QCanvasPainter::ImageFlag::Nearest);
    image3Mips = painter->addImage(QImage(":/images/pattern2.png"),
                                     QCanvasPainter::ImageFlag::GenerateMipmaps);
    image3NearestMips = painter->addImage(QImage(":/images/pattern2.png"),
                                            QCanvasPainter::ImageFlag::Nearest | QCanvasPainter::ImageFlag::GenerateMipmaps);
    m_customBrush.setFragmentShader(":/qcgalleryexample/brush1.frag.qsb");
    m_customBrush2.setFragmentShader(":/qcgalleryexample/brush2.frag.qsb");
    m_customBrush3.setFragmentShader(":/qcgalleryexample/brush3.frag.qsb");
    m_customBrush3.setVertexShader(":/qcgalleryexample/brush3.vert.qsb");
    m_customBrush4.setFragmentShader(":/qcgalleryexample/brush4.frag.qsb");
    // Enable iTime animations
    m_customBrush.setAnimationRunning(true);
    m_customBrush2.setAnimationRunning(true);
    m_customBrush3.setAnimationRunning(true);
    m_customBrush4.setAnimationRunning(true);
}

synchronizeData()는 나중에 Qt Quick 장면 그래프의 렌더링 스레드에서 안전하게 액세스할 수 있도록 GalleryItem 데이터를 복사하는 역할을 합니다:

void GalleryItemRenderer::synchronizeData(QCanvasPainterItem *item)
{
    // Setting values here synchronized
    GalleryItem *realItem = static_cast<GalleryItem*>(item);
    if (realItem) {
        m_animationTime = realItem->animationTime();
        m_animationSine = realItem->animationSine();
        m_animState = realItem->animState();
        m_viewIndex = realItem->galleryView();
        if (!qFuzzyCompare(m_previousWidth, width()) ||
            !qFuzzyCompare(m_previousHeight, height())) {
            m_sizeChanged = true;
            m_previousWidth = width();
            m_previousHeight = height();
        } else {
            m_sizeChanged = false;
        }
        loadTigerPath();
    }

}

paint() 구현은 ListView 에서 제공하는 현재 인덱스에 따라 QCanvasPainter 를 사용하여 렌더링합니다:

void GalleryItemRenderer::paint(QCanvasPainter *painter)
{
    Q_UNUSED(painter)

    // Views not currently centered to have reduced
    // alpha and saturation.
    m_viewAlpha = 0.2 + 0.8 * m_animState;
    m_viewSaturation = m_animState;
    painter->setGlobalAlpha(m_viewAlpha);
    painter->setGlobalSaturation(m_viewSaturation);
    m_topMargin = height() * 0.02f;
    switch (m_viewIndex) {
    case 0:
        drawRectsWithLinearGradient();
        drawRectsWithRadialGradient();
        drawRectsWithBoxGradient();
        drawRectsWithConicalGradients();
        drawRectsWithImagePattern();
        drawRectsWithBrushStroke();
        break;
    case 1:
        drawImages();
        break;
    case 2:
        drawGridPatterns();
        break;

여기서 호출되는 함수들은 QCanvasPainter API를 사용하여 렌더링을 수행합니다. 예를 들어:

void GalleryItemRenderer::drawRectsWithBrushStroke()
{
    int rects = 3;
    float margin = width()*0.02f;
    float border = margin + margin * m_animationSine;
    float w = (width() - margin) / (rects+2) - margin;
    float w2 = w - border;
    float posX = w + 2 * margin + border/2;
    float posY = m_topMargin + 5*(w+margin) + border/2;

    QRectF rect1(posX,posY,w2,w2);
    painter()->setLineWidth(border);
    painter()->setFillStyle(QCanvasImagePattern(m_patternImage3));
    QCanvasLinearGradient g1(posX, posY, posX+w2, posY+w2);
    g1.setStartColor("#ffffff");
    g1.setEndColor("#000000");
    painter()->setStrokeStyle(g1);
    painter()->beginPath();
    painter()->roundRect(rect1, border);
    painter()->fill();
    painter()->stroke();
    posX += w + margin;

자세한 내용은 아래 링크된 전체 예제 소스 코드를 확인하세요.

예제 프로젝트 @ code.qt.io
