GammaAdjust QML Type

改变源项的亮度。更多

Import Statement: import Qt5Compat.GraphicalEffects
Since: QtGraphicalEffects 1.0
Inherits:

Item

属性

详细说明

GammaAdjust 根据预先定义为幂律表达式的曲线应用于每个像素,其中属性 gamma 用作倒数缩放指数。详情请参考gamma 的属性文档。

来源应用效果

示例

下面的示例展示了如何应用该效果。

import QtQuick
import Qt5Compat.GraphicalEffects

Item {
    width: 300
    height: 300

    Image {
        id: bug
        source: "images/bug.jpg"
        sourceSize: Qt.size(parent.width, parent.height)
        smooth: true
        visible: false
    }

    GammaAdjust {
        anchors.fill: bug
        source: bug
        gamma: 0.45
    }
}

属性文档

cached : bool

此属性允许缓存效果输出像素,以提高渲染性能。

每次更改源或效果属性时,都必须更新缓存中的像素。由于需要额外的内存缓冲区来存储效果输出,因此会增加内存消耗。

建议在动画源或特效属性时禁用缓存。

默认情况下,该属性设置为false


gamma : real

该属性定义了根据等式改变每个像素亮度的变化系数:

luminance = pow(original_luminance, 1.0 / gamma); // The luminance is assumed to be between 0.0 and 1.0

将伽玛值设为 1.0 以下会使图像变暗,设为 1.0 以上会使图像变亮。

数值范围从 0.0(最暗)到 inf(最亮)。默认情况下,该属性设置为1.0 (无变化)。

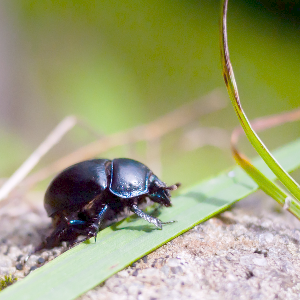

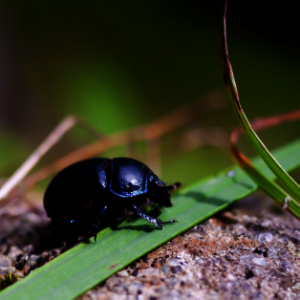

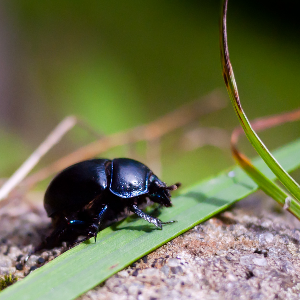

不同伽玛值的输出示例

gamma: 0.5 gamma: 1.0 伽玛值:2.0

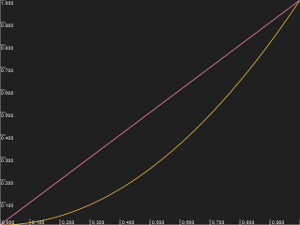

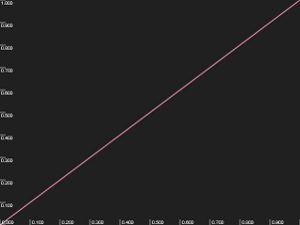

上述图像的像素亮度曲线。

红色曲线:默认伽玛值(1.0)
黄色曲线:应用的效果
X 轴:像素原始亮度
Y轴:应用效果后的像素亮度

source : variant

该属性定义了要调整亮度的源项。

注意: 不支持让效果包含自身,例如将源设置为效果的父项。
