QStyleOptionToolBar Class

The QStyleOptionToolBar class is used to describe the parameters for drawing a toolbar. More...

Header: #include <QStyleOptionToolBar>
CMake: find_package(Qt6 REQUIRED COMPONENTS Widgets)
target_link_libraries(mytarget PRIVATE Qt6::Widgets)
qmake: QT += widgets
Inherits: QStyleOption

Public Types

enum StyleOptionType { Type }
enum StyleOptionVersion { Version }
enum ToolBarFeature { None, Movable }
flags ToolBarFeatures
enum ToolBarPosition { Beginning, Middle, End, OnlyOne }

Public Functions

QStyleOptionToolBar()
QStyleOptionToolBar(const QStyleOptionToolBar &other)

Public Variables

QStyleOptionToolBar::ToolBarFeatures features
int lineWidth
int midLineWidth
QStyleOptionToolBar::ToolBarPosition positionOfLine
QStyleOptionToolBar::ToolBarPosition positionWithinLine
Qt::ToolBarArea toolBarArea

Detailed Description

QStyleOptionToolBar contains all the information that QStyle functions need to draw QToolBar.

The QStyleOptionToolBar class holds the lineWidth and the midLineWidth for drawing the widget. It also stores information about which area the toolbar should be located in, whether it is movable or not, which position the toolbar line should have (positionOfLine), and the toolbar's position within the line (positionWithinLine).

In addition, the class provides a couple of enums: The ToolBarFeature enum is used to describe whether a toolbar is movable or not, and the ToolBarPosition enum is used to describe the position of a toolbar line, as well as the toolbar's position within the line.

For performance reasons, there are few member functions and the access to the member variables is direct (i.e., using the . or -> operator). This makes the structures straightforward to use and emphasizes that these are simply parameters used by the style functions.

See also QStyleOption.

Member Type Documentation

enum QStyleOptionToolBar::StyleOptionType

This enum is used to hold information about the type of the style option, and is defined for each QStyleOption subclass.

ConstantValueDescription
QStyleOptionToolBar::TypeSO_ToolBarThe type of style option provided (SO_ToolBar for this class).

The type is used internally by QStyleOption, its subclasses, and qstyleoption_cast() to determine the type of style option. In general you do not need to worry about this unless you want to create your own QStyleOption subclass and your own styles.

See also StyleOptionVersion.

enum QStyleOptionToolBar::StyleOptionVersion

This enum is used to hold information about the version of the style option, and is defined for each QStyleOption subclass.

ConstantValueDescription
QStyleOptionToolBar::Version11

The version is used by QStyleOption subclasses to implement extensions without breaking compatibility. If you use qstyleoption_cast(), you normally do not need to check it.

See also StyleOptionType.

enum QStyleOptionToolBar::ToolBarFeature
flags QStyleOptionToolBar::ToolBarFeatures

This enum is used to describe whether a toolbar is movable or not.

ConstantValueDescription
QStyleOptionToolBar::None0x0The toolbar cannot be moved. The default value.
QStyleOptionToolBar::Movable0x1The toolbar is movable, and a handle will appear when holding the cursor over the toolbar's boundary.

The ToolBarFeatures type is a typedef for QFlags<ToolBarFeature>. It stores an OR combination of ToolBarFeature values.

See also features and QToolBar::isMovable().

enum QStyleOptionToolBar::ToolBarPosition

This enum is used to describe the position of a toolbar line, as well as the toolbar's position within the line.

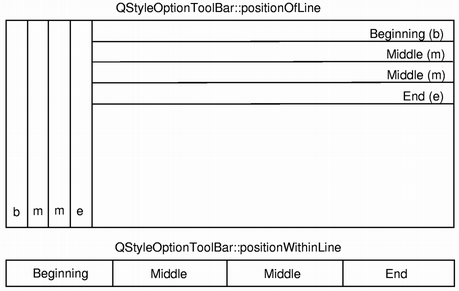

The order of the positions within a line starts at the top of a vertical line, and from the left within a horizontal line. The order of the positions for the lines is always from the parent widget's boundary edges.

ConstantValueDescription
QStyleOptionToolBar::Beginning0The toolbar is located at the beginning of the line, or the toolbar line is the first of several lines. There can only be one toolbar (and only one line) with this position.
QStyleOptionToolBar::Middle1The toolbar is located in the middle of the line, or the toolbar line is in the middle of several lines. There can several toolbars (and lines) with this position.
QStyleOptionToolBar::End2The toolbar is located at the end of the line, or the toolbar line is the last of several lines. There can only be one toolbar (and only one line) with this position.
QStyleOptionToolBar::OnlyOne3There is only one toolbar or line. This is the default value of the positionOfLine and positionWithinLine variables.

See also positionWithinLine and positionOfLine.

Member Function Documentation

QStyleOptionToolBar::QStyleOptionToolBar()

Constructs a QStyleOptionToolBar, initializing the members variables to their default values.

QStyleOptionToolBar::QStyleOptionToolBar(const QStyleOptionToolBar &other)

Constructs a copy of the other style option.

Member Variable Documentation

QStyleOptionToolBar::ToolBarFeatures QStyleOptionToolBar::features

This variable holds whether the toolbar is movable or not.

The default value is None.

int QStyleOptionToolBar::lineWidth

This variable holds the line width for drawing the toolbar.

The default value is 0.

int QStyleOptionToolBar::midLineWidth

This variable holds the mid-line width for drawing the toolbar.

The default value is 0.

QStyleOptionToolBar::ToolBarPosition QStyleOptionToolBar::positionOfLine

This variable holds the position of the toolbar line.

The default value is QStyleOptionToolBar::OnlyOne.

QStyleOptionToolBar::ToolBarPosition QStyleOptionToolBar::positionWithinLine

This variable holds the position of the toolbar within a line.

The default value is QStyleOptionToolBar::OnlyOne.

Qt::ToolBarArea QStyleOptionToolBar::toolBarArea

This variable holds the location for drawing the toolbar.

The default value is Qt::TopToolBarArea.

See also Qt::ToolBarArea.
