Editing Easing Curves

You can use Easing Curve Editor to edit the easing curve between two keyframes.

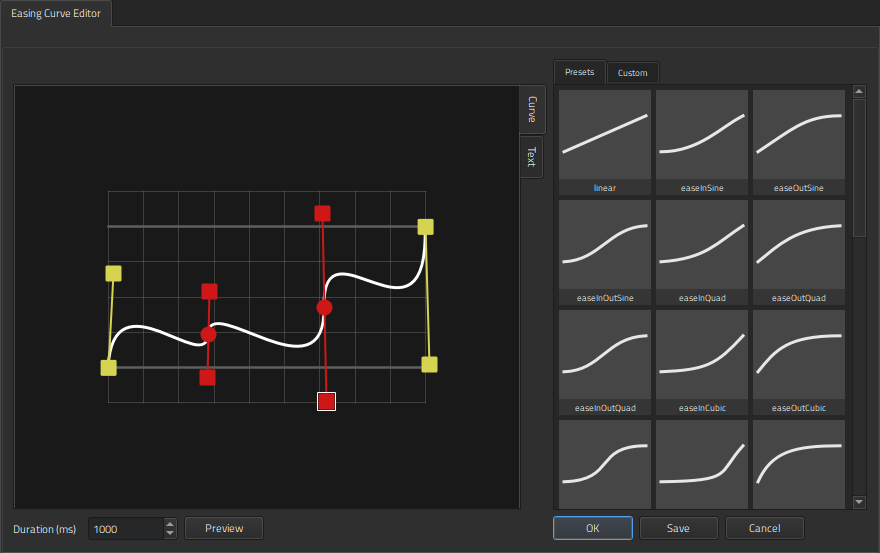

"Easing Curve Editor"

You can use the preset curves or modify them by dragging the curve handles around. You can add points to the curve and drag them and the point handles to modify the curve. When you are happy with the curve, you can save it as a custom curve. For more information about easing curve types, see the technical documentation for easing curves.

To zoom into and out of the easing curve editor, use the mouse roller. To reset the zoom factor, right-click in the picker and select Reset Zoom.

You can also use the more advanced Curve Editor that shows the interpolated values of an animated property over the animation range.

The animation curves present a more readable view of the animation by showing the effective values of the animated properties over the animation range. In order to do so, they need to be converted to and from easing curves. This comes with the following side effects:

  • Interpolation between identical current and previous keyframe values is meaningless regardless of what the easing curve looks like.
  • Some easing curves are not trivially mappable to animation curves and are therefore painted in a different color and without handles.

Attaching Easing Curves to Keyframes

To attach easing curves to keyframes:

  1. Right-click a keyframe in Timeline and select Easing Curve Editor in the context menu.
  2. Select an easing curve in the Presets tab.
  3. In the Duration (ms) field, select the duration of the easing function in milliseconds.
  4. Select Preview to preview the curve.
  5. Select OK to attach the easing curve to the keyframe, close Easing Curve Editor, and return to Timeline.

When you attach easing curves to keyframes, the shape of the keyframe marker on a keyframe track in Timeline changes from to a marker that describes the type of the selected easing curve.

Customizing Easing Curves

To customize easing curves:

  1. In Easing Curve Editor, select an easing curve in the Presets tab.
  2. Drag the curve handles to modify the curve.
  3. Right-click in the editor, and select Add Point to add points to the curve.
  4. Drag the points or the point handles to modify the curve. If the curve becomes invalid, it turns red in the editor and the Save button is disabled.
  5. Select Save to save your changes to the curve.
  6. In the Name field, enter a name for the custom curve, and then select OK to save the curve in the Custom tab.

To paste easing curve definitions to Easing Curve Editor as text, select the Text tab.
