Positioning Components

The position of a component in a UI can be either absolute or relative to other components. The visual components exist at a particular location in the screen coordinate system at any instant in time. The x and y coordinates of a visual component are relative to those of its visual parent, with the top-left corner having the coordinate (0, 0).

If you are designing a static UI, manual positioning provides the most efficient form of positioning components. For a dynamic UI, you can employ the following positioning methods:

Setting Bindings

Property binding is a declarative way of specifying the value of a property. Binding allows a property value to be expressed as a JavaScript expression that defines the value relative to other property values or data accessible in the application. The property value is automatically kept up to date if the other properties or data values change.

Property bindings are created implicitly whenever a property is assigned a JavaScript expression. To set JavaScript expressions as values of properties in the Properties view, select the (Actions) menu next to a property, and then select Set Binding.

"Actions menu"

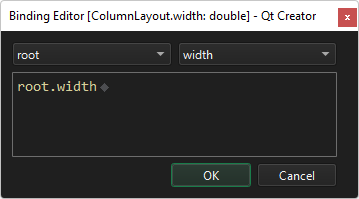

In Binding Editor, select a component and a property from lists of available components and their properties.

"Binding Editor"

Alternatively, start typing a string and press Ctrl+Space to display a list of properties, IDs, and code snippets. When you enter a period (.) after a property name, a list of available values is displayed. Press Enter to accept the first suggestion in the list and to complete the code.

When a binding is set, the Actions menu icon changes to . To remove bindings, select Actions > Reset.

You can set bindings also in Connection View > Bindings. For more information, see Adding Bindings Between Properties.

For more information on the JavaScript environment provided, see Integrating QML and JavaScript.

Bindings are a black box for Qt Creator and using them might have a negative impact on performance, so consider setting anchors and margins for components, instead. For example, instead of setting parent.width for a component, you could anchor the component to its sibling components on the left and the right.

Setting Anchors and Margins

In an anchor-based layout, each component can be thought of as having a set of invisible anchor lines: top, bottom, left, right, fill, horizontal center, vertical center, and baseline.

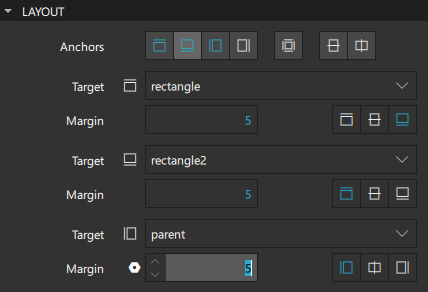

In Properties > Layout, you can set anchors and margins for components. To set the anchors of a component, click the anchor buttons. You can combine the top/bottom, left/right, and horizontal/vertical anchors to anchor components in the corners of the parent component or center them horizontally or vertically within the parent component.

"Anchor buttons"

For convenience, you can click the (Fill to Parent) toolbar button to apply fill anchors to a component and the (Reset Anchors) button to reset the anchors to their saved state.

You can specify the baseline anchor in Text Editor.

For performance reasons, you can only anchor a component to its siblings and direct parent. By default, a component is anchored to its parent when you use the anchor buttons. Select a sibling of the component in the Target field to anchor to it instead.

Arbitrary anchoring is not supported. For example, you cannot specify: anchor.left: parent.right. You have to specify: anchor.left: parent.left. When you use the anchor buttons, anchors to the parent component are always specified to the same side. However, anchors to sibling components are specified to the opposite side: anchor.left: sibling.right. This allows you to keep sibling components together.

In the following image, Rectangle 2 is anchored to Rectangle 1 on its left and to the bottom of its parent.

"Anchoring sibling components"

The anchors for Rectangle 2 are specified as follows in code:

Rectangle {
    id: rectangle2
    anchors.left: rectangle1.right
    anchors.leftMargin: 78
    anchors.bottom: parent.bottom
    anchors.bottomMargin: 200
    //
}

Margins specify the amount of empty space to leave to the outside of a component. Margins only have meaning for anchors. They do not take any effect when using layouts or absolute positioning.

Aligning and Distributing Components

When you're working with a group of components, you can select them to align and distribute them evenly. As the positions of the components are fixed, you cannot apply these functions to anchored components. For scalability, you can anchor the aligned and distributed components when your design is ready.

"Aligning sibling components"

Select the buttons in the Align group to align the top/bottom or left/right edges of the components in the group to the one farthest away from the center of the group. For example, when left-aligning, the components are aligned to the leftmost component. You can also align the horizontal/vertical centers of components, or both, as in the image above.

In the Align to field, select whether to align the components in respect to the selection, the root component, or a key component that you select in the Key object field. The key component must be a part of the selection.

You can distribute either components or the spacing between them. If the components or spacing cannot be distributed to equal pixel values without ending up with half pixels, you receive a notification. You can either allow Qt Design Studio to distribute components or spacing using the closest values possible or tweak your design so that the components and spacing can be distributed perfectly.

When distributing components, you can select whether the distance between them is calculated from their top/bottom or left/right edges or their horizontal/vertical center.

"Distribute components buttons"

You can distribute spacing either evenly within a target area or at specified distances, calculated from a starting point.

You can select the orientation in which the components are distributed evenly within the target area: horizontally along the x axis or vertically along the y axis.

"Distribute spacing evenly"

Alternatively, you can distribute spacing in pixels by selecting one of the starting point buttons: left/right or top/bottom edge of the target area, or its horizontal/vertical center. Note that some components might end up outside the target area.

"Distribute spacing in pixels"

You can set the space between components in pixels. You can disable the distribution of spacing in pixels by clicking the button.

Using Positioners

Positioner components are containers that manage the positions of their child components. For many use cases, the best positioner to use is a simple column, row, flow, or grid. You can use the components available in Library > Components > Default Components > Positioner to position the children of a component in these formations in the most efficient manner possible.

To position several components in a Column, Row, Flow, or Grid, select the components in Form Editor, and then select Position in the context menu.

Column Positioner

A Column positions its child components along a single column. It can be used as a convenient way to vertically position a series of components without using anchors.

"Column properties"

For all positioners, you can specify the spacing between the child components that they contain in the Spacing field.

In addition, you can specify the vertical and horizontal padding between content and the left, right, top, and bottom edges of components as values of the fields in the Padding group.

Row and Flow Positioners

A Row positions its child components along a single row. It can be used as a convenient way to horizontally position a series of components without using anchors.

The Flow component positions its child components like words on a page, wrapping them to create rows or columns of components.

"Flow properties"

For flow and row positioners, you can also set the direction of a flow to either left-to-right or top-to-bottom in the Flow field. Components are positioned next to to each other according to the value you set in the Layout direction field until the width or height of the Flow component is exceeded, then wrapped to the next row or column.

You can set the layout direction to either LeftToRight or RightToLeft in the Layout direction field. If the width of the row is explicitly set, the left anchor remains to the left of the row and the right anchor remains to the right of it.

Grid Positioner

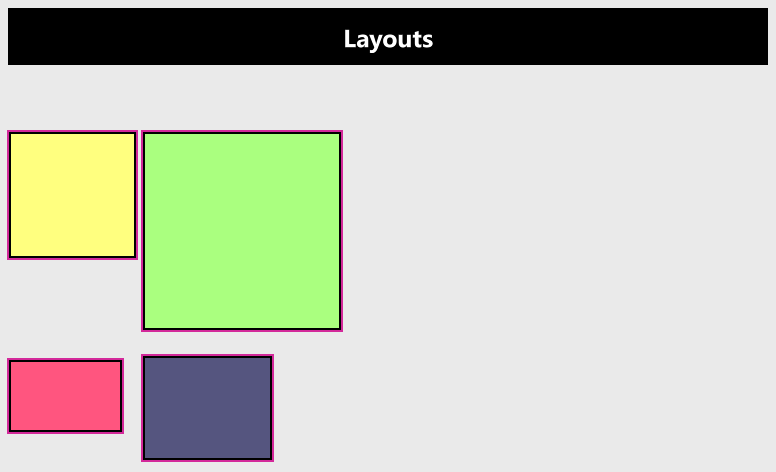

A Grid creates a grid of cells that is large enough to hold all of its child components, and places these components in the cells from left to right and top to bottom. Each component is positioned at the top-left corner of its cell with position (0, 0).

Qt Creator generates the grid based on the positions of the child components in Form Editor. You can modify the number of rows and columns in the Rows and Columns fields.

"Grid properties"

In addition to the flow and layout direction, you can set the horizontal and vertical alignment of grid components. By default, grid components are vertically aligned to the top. Horizontal alignment follows the value of the Layout direction field. For example, when layout direction is set to LeftToRight, the components are aligned on the left.

To mirror the layout, set the layout direction to RightToLeft. To also mirror the horizontal alignment of components, select AlignRight in the Horizontal item alignment field.

Summary of Positioners

The following table lists the positioners that you can use to arrange components in UIs. They are available in Library > Components > Default Components > Positioner.

IconNamePurpose
ColumnArranges its child components vertically.
RowArranges its child components horizontally.
GridArranges its child components so that they are aligned in a grid and are not overlapping.
FlowArranges its child components side by side, wrapping as necessary.

Using Layouts

Since Qt 5.1, you can use QML types in the Qt Quick Layouts module to arrange components in UIs. Unlike positioners, layouts manage both the positions and sizes of their child components, and are therefore well suited for dynamic and resizable UIs. However, this means that you should not specify fixed positions and sizes for the child components in the Geometry group in Properties, unless their implicit sizes are not satisfactory.

You can use anchors or the width and height properties of the layout itself to specify its size in respect to its non-layout parent component. However, do not anchor the child components within layouts.

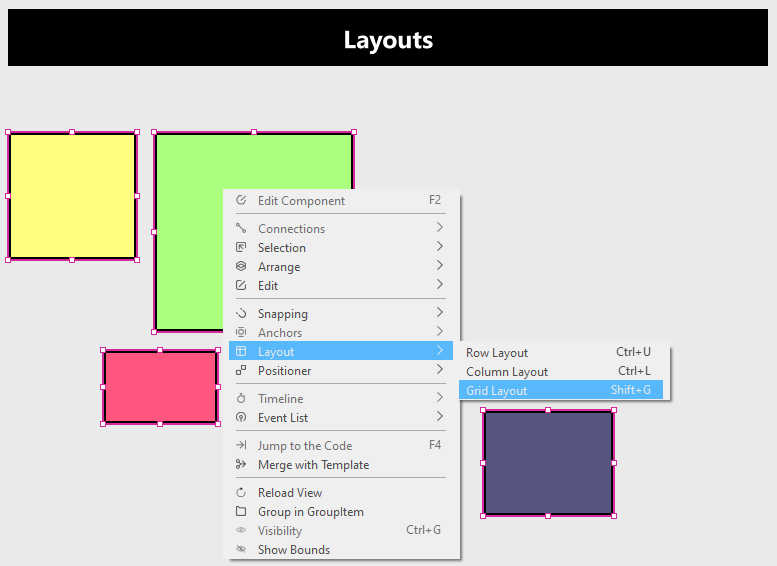

To arrange several components in a column, row, grid, or Stack Layout, select the components in Form Editor, and then select Layout in the context menu.

You can also click the (Column Layout), (Row Layout), and (Grid Layout) toolbar buttons to apply layouts to the selected components.

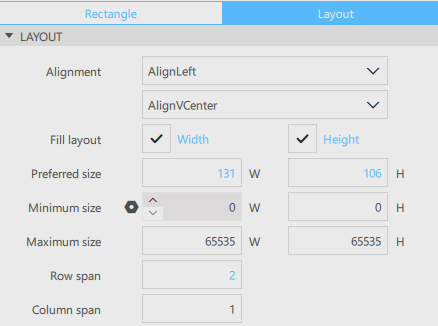

To make a component within a layout as wide as possible while respecting the given constraints, select the component in Form Editor, and then select Layout > Fill Width in the context menu. To make the component as high as possible, select Fill Height.

Layout Properties

A Grid Layout component provides a way of dynamically arranging components in a grid. If the grid layout is resized, all its child components are rearranged. If you want a layout with just one row or one column, use the Row Layout or Column Layout component.

The child components of row and column layout components are automatically positioned either horizontally from left to right as rows or vertically from top to bottom as columns. The number of the child components determines the width of the row or the height of the column. You can specify the spacing between the child components in the Spacing field.

The child components of grid layout components are arranged according to the Flow property. When the direction of a flow is set to LeftToRight, child components are positioned next to to each other until the the number of Columns is reached. Then, the auto-positioning wraps back to the beginning of the next row.

"Grid Layout properties"

If you set the direction of the flow to TopToBottom, child components are auto-positioned vertically using the value of the Rows field to determine the maximum number of rows.

You can set the layout direction to either LeftToRight or RightToLeft in the Layout direction field. When you select RightToLeft, the alignment of the components will be mirrored.

You can specify the spacing between rows and columns in the Row spacing and Column spacing fields.

Stack Layout

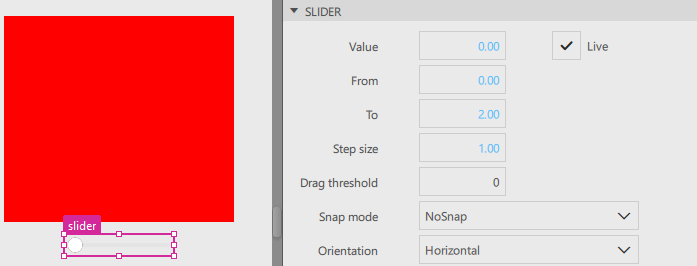

To add components to a Stack Layout, select the button next to the component name in Form Editor. To move between components, select the (Previous) and (Next) buttons.

To add a tab bar to a stack layout, right-click on the Stack Layout in Navigator to access the context menu, and select Stacked Container > Add Tab Bar.

To raise or lower the stacking order of a component, select Stacked Container > Increase Index or Decrease Index.

Summary of Layouts

The following table lists the layout components that you can use to arrange components in UIs. They are available in Library > Components > Qt Quick Layouts.

IconNamePurpose
Column LayoutProvides a grid layout with only one column.
Row LayoutProvides a grid layout with only one row.
Grid LayoutProvides a way of dynamically arranging components in a grid.
Stack LayoutProvides a stack of components where only one component is visible at a time.

Organizing Components

You can use the Frame and Group Box controls to draw frames around groups of controls.

The following table lists the UI controls that you can use to organize components in UIs (since Qt 5.7). The Location column indicates the location of the component in Library > Components.

IconNameLocationPurpose
FrameQt Quick ControlsA visual frame around a group of controls.
Group BoxQt Quick ControlsA titled visual frame around a group of controls.
PageQt Quick ControlsA styled page control with support for a header and footer.
PaneQt Quick ControlsA background that matches the application style and theme.
