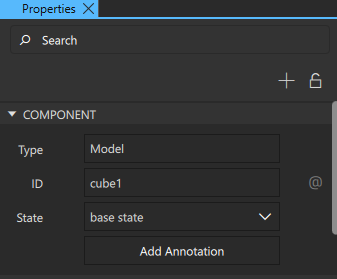

The Properties view displays all the properties of the selected component. The properties are grouped by type. The top part of the view displays properties that are common to all components, such as type name, ID, position, size, and visibility.

"Basic component properties"

The bottom part of the view displays properties that have been defined for the component type. For example, the following image displays the predefined properties you can set for Rectangle and Text components.

"Rectangle and Text properties"

Summary of Properties View Buttons

The following table lists the Properties view buttons:

IconTooltipRead More
Adds a property alias that you can use from outside of the component for the root component. You can use a menu item in the actions menu to add property aliases for property values of child components.Adding Property Aliases
Opens a menu with actions for:
  • Resetting property values to their default values
  • Setting property bindings
  • Creating property aliases
  • Inserting keyframes for timeline animations
Indicates that the value of the property is bound to the value of another property. Opens the same menu as the action icon.Adding Bindings Between Properties

Viewing Changes in Properties

The default values of properties are displayed in white color, while the values that you specify explicitly are highlighted with blue color. In addition, property changes in states are highlighted with blue.

This allows you to easily see which values are set in the component file for this component instance and which values are default characteristics of a component.

When editing states, you can easily see which values are explicitly set in the current state and which values are derived from the base state.

The following images illustrate this. In the base state, the Position (1) and Size (2) values are explicitly set and highlighted.

"Explicitly set properties"

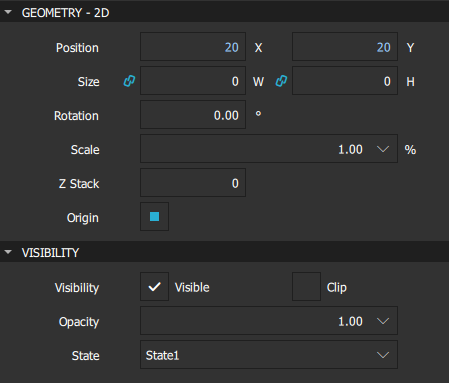

In State1, only Position is explicitly set and highlighted.

"Explicitly set properties"

Resetting a property sets it back to the default value and removes the value from the component file.

Note: As a result, all boolean values can be visualized in four different ways.

For example, visibility can be visualized as follows:

TRUEThe component is visible by default. The visibility might be overridden by the visibility set in the base state.

TRUE (highlighted)The component is explicitly set to visible.

FALSEThe component is hidden by default. The visibility might be overridden by the visibility set in the base state.

FALSE (hightlighted)The component is explicitly set to hidden.


To modify the values of common properties of multiple components simultaneously, select the components in Navigator or Form Editor:

  • On Windows, press and hold Ctrl and Shift, and then click the components to select them.
  • On macOS, press Shift to select a range of components or Cmd to select multiple single components.

You can lock other components in Navigator to make multiselection easier.

Getting Help for Properties
