Qml Weather

Esta es una demostración básica que muestra cómo utilizar los diferentes tipos de gráficos mediante QML.

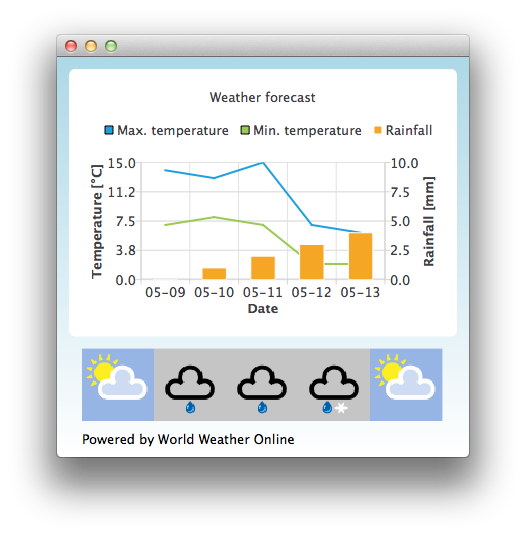

Captura de pantalla en la que se muestran tres gráficos diferentes con tres ejes (temperatura, fecha y precipitaciones); el primero representa la temperatura máxima mediante un gráfico de líneas en azul; el segundo, la temperatura mínima, también mediante un gráfico de líneas en verde; y el tercero, las precipitaciones mediante un gráfico de barras en naranja.

Por defecto, la aplicación utiliza datos de prueba estáticos para simular una previsión meteorológica. También puedes obtener un identificador de aplicación en http://www.worldweatheronline.com/ para acceder a la API meteorológica proporcionada por World Weather Online. A continuación, puedes indicar tu identificador de aplicación como parámetro en el ejecutable de Qml Weather para que utilice datos en tiempo real.

Por ejemplo:

bin\qmlweather.exe 1234567890abcdef123456

Ejecución del ejemplo

Puedes ejecutar el ejemplo desde:

Uso de gráficos en aplicaciones de Qt Quick

La aplicación de ejemplo utiliza un ChartView y varias series para visualizar datos meteorológicos:

ChartView {
    id: chartView
    title: "Weather forecast"
    BarCategoryAxis {
        id: barCategoriesAxis
        titleText: "Date"
    }

    ValueAxis{
        id: valueAxisY2
        min: 0
        max: 10
        titleText: "Rainfall [mm]"
    }

    ValueAxis {
        id: valueAxisX
        // Hide the value axis; it is only used to map the line series to bar categories axis
        visible: false
        min: 0
        max: 5
    }

    ValueAxis{
        id: valueAxisY
        min: 0
        max: 15
        titleText: "Temperature [°C]"
    }

    LineSeries {
        id: maxTempSeries
        axisX: valueAxisX
        axisY: valueAxisY
        name: "Max. temperature"
    }

    LineSeries {
        id: minTempSeries
        axisX: valueAxisX
        axisY: valueAxisY
        name: "Min. temperature"
    }

    BarSeries {
        id: myBarSeries
        axisX: barCategoriesAxis
        axisYRight: valueAxisY2
        BarSet {
            id: rainfallSet
            label: "Rainfall"
        }
    }

Para obtener datos de previsión meteorológica, realizamos una solicitud HTTP GET a World Weather Online. Solicitamos la respuesta en formato JSON.

// Make HTTP GET request and parse the result
var xhr = new XMLHttpRequest;
xhr.open("GET",
         "http://free.worldweatheronline.com/feed/weather.ashx?q=Jyv%c3%a4skyl%c3%a4,Finland&format=json&num_of_days=5&key="
         + weatherAppKey);
xhr.onreadystatechange = function() {
    if (xhr.readyState == XMLHttpRequest.DONE) {
        var a = JSON.parse(xhr.responseText);
        parseWeatherData(a);
    }
}
xhr.send();

La respuesta JSON contiene una matriz de datos de previsión:

// Loop through the parsed JSON
for (var i in weatherData.data.weather) {
    var weatherObj = weatherData.data.weather[i];

A continuación, se utiliza como datos de entrada para nuestras series y para un ListModel que empleamos como contenedor de las URL de los iconos meteorológicos:

// Store temperature values, rainfall and weather icon.
// The temperature values begin from 0.5 instead of 0.0 to make the start from the
// middle of the rainfall bars. This makes the temperature lines visually better
// synchronized with the rainfall bars.
maxTempSeries.append(Number(i) + 0.5, weatherObj.tempMaxC);
minTempSeries.append(Number(i) + 0.5, weatherObj.tempMinC);
rainfallSet.append(weatherObj.precipMM);
weatherImageModel.append({"imageSource":weatherObj.weatherIconUrl[0].value});

Proyecto de ejemplo en code.qt.io
