Qt Quick Física 3D: ejemplo de formas personalizadas

Muestra cómo utilizar diferentes formas.

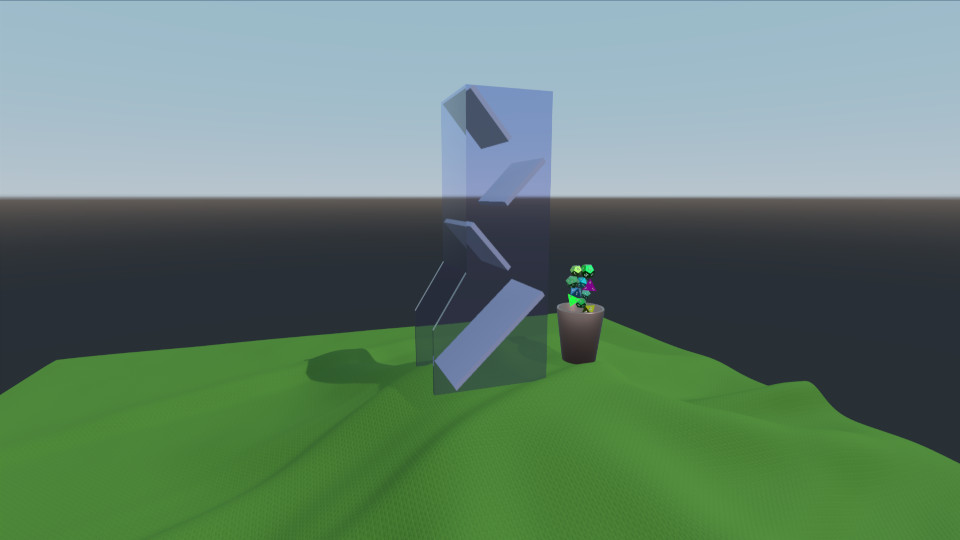

Captura de pantalla de una escena en 3D en la que se ve una estructura rectangular transparente que contiene figuras geométricas sólidas, situada sobre un terreno verde con un pequeño objeto multicolor en una maceta junto a ella

Este ejemplo muestra cómo cargar y generar varias mallas de cuerpos rígidos, así como animarlas. La escena consta de una torre de dados, un mantel, una taza y un puñado de dados. La taza está animada para recoger los dados que se generan y colocarlos en la torre de dados. A continuación, los dados rodarán hacia abajo y saldrán al mantel.

Entorno

Como es habitual, contamos con un ` PhysicsWorld ` y un ` View3D`. En el ` View3D ` tenemos nuestro entorno, que configura un «lightprobe»:

environment: SceneEnvironment {
    clearColor: "white"
    backgroundMode: SceneEnvironment.SkyBox
    antialiasingMode: SceneEnvironment.MSAA
    antialiasingQuality: SceneEnvironment.High
    lightProbe: proceduralSky
}

Texturas

Definimos cuatro texturas que se utilizarán para el skybox, el mantel y los números de los dados:

Texture {
    id: proceduralSky
    textureData: ProceduralSkyTextureData {
        sunLongitude: -115
    }
}

Texture {
    id: weaveNormal
    source: "maps/weave.png"
    scaleU: 200
    scaleV: 200
    generateMipmaps: true
    mipFilter: Texture.Linear
}
Texture {
    id: numberNormal
    source: "maps/numbers-normal.png"
}

Texture {
    id: numberFill
    source: "maps/numbers.png"
    generateMipmaps: true
    mipFilter: Texture.Linear
}

Escena

Tenemos un nodo que contiene nuestra escena con la cámara y una luz direccional:

id: scene
scale: Qt.vector3d(2, 2, 2)
PerspectiveCamera {
    id: camera
    position: Qt.vector3d(-45, 25, 60)
    eulerRotation: Qt.vector3d(-6, -33, 0)
    clipFar: 1000
    clipNear: 0.1
}

DirectionalLight {
    eulerRotation: Qt.vector3d(-45, 25, 0)
    castsShadow: true
    brightness: 1
    shadowMapQuality: Light.ShadowMapQualityHigh
    pcfFactor: 0.1
    shadowBias: 1
}

Mantel

Añadimos el mantel, que es un « StaticRigidBody » compuesto por un modelo con una textura de tejido y un « HeightFieldShape » para las colisiones.

StaticRigidBody {
    position: Qt.vector3d(-15, -8, 0)
    id: tablecloth

    Model {
        geometry: HeightFieldGeometry {
            id: tableclothGeometry
            extents: Qt.vector3d(150, 20, 150)
            source: "maps/cloth-heightmap.png"
            smoothShading: false
        }
        materials: PrincipledMaterial {
            baseColor: "#447722"
            roughness: 0.8
            normalMap: weaveNormal
            normalStrength: 0.7
        }
    }

    collisionShapes: HeightFieldShape {
        id: hfShape
        extents: tableclothGeometry.extents
        source: "maps/cloth-heightmap.png"
    }
}

Taza

Definimos la taza como un « DynamicRigidBody » con un «Model» y un « TriangleMeshShape » como forma de colisión. Tiene un «Behavior» en las propiedades « eulerRotation » y « position », ya que estas forman parte de una animación.

DynamicRigidBody {
    id: diceCup
    isKinematic: true
    mass: 0
    property vector3d bottomPos: Qt.vector3d(11, 6, 0)
    property vector3d topPos: Qt.vector3d(11, 45, 0)
    property vector3d unloadPos: Qt.vector3d(0, 45, 0)
    position: bottomPos
    kinematicPivot: Qt.vector3d(0, 6, 0)
    kinematicPosition: bottomPos
    collisionShapes: TriangleMeshShape {
        id: cupShape
        source: "meshes/simpleCup.mesh"
    }
    Model {
        source: "meshes/cup.mesh"
        materials: PrincipledMaterial {
            baseColor: "#cc9988"
            roughness: 0.3
            metalness: 1
        }
    }
}

Torre

La torre es simplemente un « StaticRigidBody » con un «Model» y un « TriangleMeshShape » para la colisión.

StaticRigidBody {
    id: diceTower
    x: -4
    Model {
        id: testModel
        source: "meshes/tower.mesh"
        materials: [
            PrincipledMaterial {
                baseColor: "#ccccce"
                roughness: 0.3
            },
            PrincipledMaterial {
                id: glassMaterial
                baseColor: "#aaaacc"
                transmissionFactor: 0.95
                thicknessFactor: 1
                roughness: 0.05
            }
        ]
    }
    collisionShapes: TriangleMeshShape {
        id: triShape
        source: "meshes/tower.mesh"
    }
}

Dados

Para generar los dados utilizamos un «Component» con un objeto QML «Die» personalizado y un « Repeater3D ».

Component {
    id: diceComponent
    Die {}
}

Repeater3D {
    id: dicePool
    model: 25
    delegate: diceComponent
    delegateModelAccess: DelegateModel.ReadWrite
    function restore() {
        for (let i = 0; i < count; i++) {
            (objectAt(i) as Die).restore()
        }
    }
}

El objeto «Die» contiene un « DynamicRigidBody » con un « ConvexMeshShape » y un «Model». La posición, el color, la escala y la fuente de la malla se generan aleatoriamente para cada dado.

DynamicRigidBody {
    id: thisBody
    required property int index

    Texture {
        id: numberNormal
        source: "maps/numbers-normal.png"
    }

    Texture {
        id: numberFill
        source: "maps/numbers.png"
        generateMipmaps: true
        mipFilter: Texture.Linear
    }

    function randomInRange(min, max) {
        return Math.random() * (max - min) + min
    }

    function restore() {
        reset(initialPosition, eulerRotation)
    }

    scale: Qt.vector3d(scaleFactor, scaleFactor, scaleFactor)
    eulerRotation: Qt.vector3d(randomInRange(0, 360),
                               randomInRange(0, 360),
                               randomInRange(0, 360))

    property vector3d initialPosition: Qt.vector3d(11 + 1.5 * Math.cos(index/(Math.PI/4)),
                                                   6 + index * 1.5,
                                                   0)
    position: initialPosition

    property real scaleFactor: randomInRange(0.8, 1.4)
    property color baseCol: Qt.hsla(randomInRange(0, 1),
                                    randomInRange(0.6, 1.0),
                                    randomInRange(0.4, 0.7),
                                    1.0)

    collisionShapes: ConvexMeshShape {
        id: diceShape
        source: Math.random() < 0.25 ? "meshes/icosahedron.mesh"
              : Math.random() < 0.5 ? "meshes/dodecahedron.mesh"
              : Math.random() < 0.75 ? "meshes/octahedron.mesh"
                                     : "meshes/tetrahedron.mesh"
    }

    Model {
        id: thisModel
        source: diceShape.source
        receivesShadows: false
        materials: PrincipledMaterial {
            metalness: 1.0
            roughness: thisBody.randomInRange(0.2, 0.6)
            baseColor: thisBody.baseCol
            emissiveMap: numberFill
            emissiveFactor: Qt.vector3d(1, 1, 1)
            normalMap: numberNormal
            normalStrength: 0.75
        }
    }
}

Animación

Para que los dados se desplacen del vaso a la torre de dados, animamos el vaso, lo movemos hacia arriba y luego lo volcamos. Para asegurarnos de que la animación se mantenga sincronizada con la simulación física, utilizamos un ` AnimationController `, que conectamos a la señal ` onFrameDone ` del ` PhysicsWorld`. Tras cada fotograma simulado, avanzamos la animación con el intervalo de tiempo transcurrido.

Connections {
    target: physicsWorld
    property real totalAnimationTime: 7500
    function onFrameDone(timeStep) {
        let progressStep = timeStep / totalAnimationTime
        animationController.progress += progressStep
        if (animationController.progress >= 1) {
            animationController.completeToEnd()
            animationController.reload()
            animationController.progress = 0
        }
    }
}

AnimationController {
    id: animationController
    animation: SequentialAnimation {
        PauseAnimation { duration: 2500 }
        PropertyAnimation {
            target: diceCup
            property: "kinematicPosition"
            to: diceCup.topPos
            duration: 2500
        }
        ParallelAnimation {
            PropertyAnimation {
                target: diceCup
                property: "kinematicEulerRotation.z"
                to: 130
                duration: 1500
            }
            PropertyAnimation {
                target: diceCup
                property: "kinematicPosition"
                to: diceCup.unloadPos
                duration: 1500
            }
        }
        PauseAnimation { duration: 1000 }
        ParallelAnimation {
            PropertyAnimation {
                target: diceCup
                property: "kinematicEulerRotation.z"
                to: 0
                duration: 1500
            }
            PropertyAnimation {
                target: diceCup
                property: "kinematicPosition"
                to: diceCup.topPos
                duration: 1500
            }
        }
        PropertyAnimation { target: diceCup; property: "kinematicPosition"; to: diceCup.bottomPos; duration: 1500 }
        PauseAnimation { duration: 2000 }
        ScriptAction { script: dicePool.restore() }
    }
}

Controlador

Por último, se añade un WasdController para poder controlar la cámara mediante el teclado:

WasdController {
    keysEnabled: true
    controlledObject: camera
    speed: 0.2
}
