Displace QML Type

根据给定的位移贴图移动源项的像素。更多

Import Statement: import Qt5Compat.GraphicalEffects
Since: QtGraphicalEffects 1.0
Inherits:

Item

属性

详细说明

来源位移源应用的效果

示例

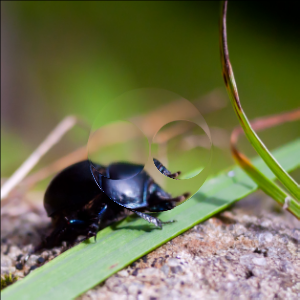

下面的示例展示了如何应用效果。

import QtQuick
import Qt5Compat.GraphicalEffects

Item {
    width: 300
    height: 300

    Image {
        id: bug
        source: "images/bug.jpg"
        sourceSize: Qt.size(parent.width, parent.height)
        smooth: true
        visible: false
    }

    Rectangle {
        id: displacement
        color: Qt.rgba(0.5, 0.5, 1.0, 1.0)
        anchors.fill: parent
        visible: false
        Image {
            anchors.centerIn: parent
            source: "images/glass_normal.png"
            sourceSize: Qt.size(parent.width/2, parent.height/2)
            smooth: true
        }
    }

    Displace {
        anchors.fill: bug
        source: bug
        displacementSource: displacement
        displacement: 0.1
    }
}

属性文档

cached : bool

此属性允许缓存效果输出像素,以提高渲染性能。

每次更改源或效果属性时,都必须更新缓存中的像素。由于需要额外的内存缓冲区来存储效果输出,因此会增加内存消耗。

建议在动画源或特效属性时禁用缓存。

默认情况下,该属性设置为false


displacement : real

该属性定义了位移的比例。比例越大,像素的位移越大。设置为 0.0 时不会产生位移。

该值范围为-1.0(最大位移倒置,根据displacementSource )至 1.0(最大位移,根据displacementSource )。默认情况下,该属性设置为0.0 (无位移)。

不同位移值的输出示例

位移:-0.2 位移0.0 displacement:0.2

displacementSource : variant

此属性定义了用作位移贴图的项目。位移源项会被渲染到中间像素缓冲区中。结果中的红色和绿色分量值决定了像素与源项目的位移。

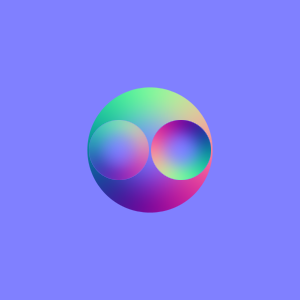

位移贴图的格式与切线空间法线贴图类似,大多数三维建模工具都可以创建位移贴图。许多图像处理工具都支持生成法线贴图。另外,这种效果的位移贴图也可以是一个 QML 元素,并对其进行适当着色。与任何 QML 元素一样,它也可以被动画化。建议位移贴图的大小与source 的大小相匹配。

置换数据以 RGBA 格式解释。对于每个像素:红色通道存储 x 轴位移,绿色通道存储 y 轴位移。蓝色和阿尔法通道将被忽略。

假设红色通道值 1.0 为全红(0.0 为无红),则此效果认为像素分量值 0.5 不会产生任何位移。高于 0.5 的值会使像素向左移动,低于 0.5 的值会使像素向右移动。同样,绿色通道值高于 0.5 会使像素向上位移,而低于 0.5 则会使像素向下位移。实际的像素位移量取决于displacement 属性。


source : variant

该属性根据displacementSource 中的数据定义了像素位移的源项。

注: 不支持让效果包含自身,例如将源设置为效果的父项。
