QML 视频录制器
使用Qt Quick.QML 录制音频和视频

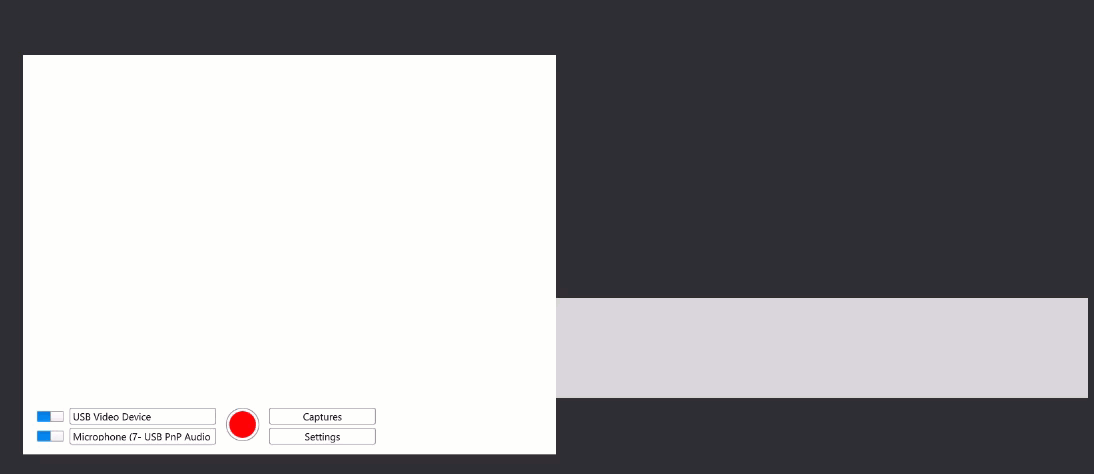

QML Recorder演示了一个简单的应用程序，它可以使用麦克风、摄像头或屏幕捕捉，单独或一起录制音频和视频。
运行示例
要从 Qt Creator，打开Welcome 模式，从Examples 选择示例。更多信息，请参阅Qt Creator: 教程：构建并运行。
概述
本示例的核心是一个 QML应用程序，请参见 Qt Quick 。本文档将重点介绍该示例如何使用Qt Multimedia QML Types.
该示例使用连接到CaptureSession 的 QMLCamera 和AudioInput 类型。然后使用MediaRecorder 对象录制捕获的音频和视频。
除了QtMultimedia 之外，还使用了Qt Quick Windows、Controls 和 Layouts 的功能来实现图形用户界面和功能。这里不涉及播放，请参阅QML 媒体播放器示例。
该示例演示了以下内容：
- 可选择输入设备。
- 关闭输入类型。
- 对捕获进行设置，如质量、编解码器选择、文件格式和分配元数据。
- 存储并播放捕获的文件。
录制
应用程序实现了录制功能。
捕获会话
在main.qml 中，captureSession 是这样声明的：
CaptureSession { id: captureSession recorder: recorder audioInput: controls.audioInput camera: controls.camera screenCapture: controls.screenCapture windowCapture: controls.windowCapture videoOutput: videoOutput }
记录器
在main.qml 中，MediaRecorder recorder 处理录制媒体以及捕获文件缩略图并将其附加到 ListModel 中，mediaList 。
MediaRecorder { id: recorder onRecorderStateChanged: (state) => { if (state === MediaRecorder.StoppedState) { root.contentOrientation = Qt.PrimaryOrientation mediaList.append() } else if (state === MediaRecorder.RecordingState && captureSession.camera) { // lock orientation while recording and create a preview image root.contentOrientation = root.screen.orientation; videoOutput.grabToImage(function(res) { mediaList.mediaThumbnail = res.url }) } } onActualLocationChanged: (url) => { mediaList.mediaUrl = url } onErrorOccurred: { recorderErrorText.text = recorder.errorString; recorderError.open(); } }
mediaList 在 中声明Frame mediaListFrame
Frame { id: mediaListFrame height: 150 width: parent.width anchors.bottom: controlsFrame.top x: controls.capturesVisible ? 0 : parent.width background: Rectangle { anchors.fill: parent color: palette.base opacity: 0.8 } Behavior on x { NumberAnimation { duration: 200 } } MediaList { id: mediaList anchors.fill: parent playback: playback

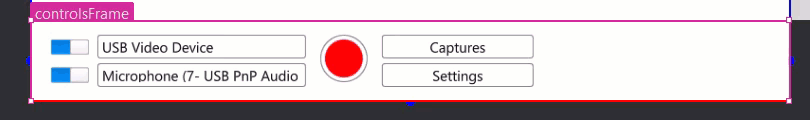

控制
这些控件在Controls.qml 中定义，并在 main.qml 中声明。
它的根是Row ，其中包含Columns inputControls ,recordButton,optionButtons, 它们分别在各自的 .qml 文件中定义。
选择视频源
在VideoSourceSelect.qml 中定义的VideoSourceSlect 由Switch 和ComboBox 组成，可让用户从可用的摄像机中进行选择。
Row { id: root height: Style.height property Camera selectedCamera: cameraAvailable ? camera : null property ScreenCapture selectedScreenCapture: screenAvailable ? screenCapture : null property WindowCapture selectedWindowCapture: windowAvailable ? windowCapture : null property bool sourceAvailable: typeof comboBox.currentValue !== 'undefined' && comboBox.currentValue.type !== 'toggler' && videoSourceSwitch.checked property bool cameraAvailable: sourceAvailable && comboBox.currentValue.type === 'camera' property bool screenAvailable: sourceAvailable && comboBox.currentValue.type === 'screen' property bool windowAvailable: sourceAvailable && comboBox.currentValue.type === 'window' Component.onCompleted: { videoSourceModel.populate() for (var i = 0; i < videoSourceModel.count; i++) { if (videoSourceModel.get(i).value.type !== 'toggler') { comboBox.currentIndex = i break } } } Camera { id: camera active: cameraAvailable } ScreenCapture { id: screenCapture active: screenAvailable } WindowCapture { id: windowCapture active: windowAvailable } MediaDevices { id: mediaDevices onVideoInputsChanged: { videoSourceModel.populate() for (var i = 0; i < videoSourceModel.count; i++) { if (videoSourceModel.get(i).value.type !== 'toggler') { comboBox.currentIndex = i break } } } } Switch { id: videoSourceSwitch anchors.verticalCenter: parent.verticalCenter checked: true } ListModel { id: videoSourceModel property var enabledSources: { 'camera': true, 'screen': true, 'window': false } function toggleEnabledSource(type) { enabledSources[type] = !enabledSources[type] populate() } function appendItem(text, value) { append({ text: text, value: value}) } function appendToggler(name, sourceType) { appendItem((enabledSources[sourceType] ? "- Hide " : "+ Show ") + name, { type: 'toggler', 'sourceType': sourceType }) } function populate() { clear() appendToggler('Cameras', 'camera') if (enabledSources['camera']) for (var camera of mediaDevices.videoInputs) appendItem(camera.description, { type: 'camera', camera: camera }) appendToggler('Screens', 'screen') if (enabledSources['screen']) for (var screen of Application.screens) appendItem(screen.name, { type: 'screen', screen: screen }) appendToggler('Windows', 'window') if (enabledSources['window']) for (var window of windowCapture.capturableWindows()) appendItem(window.description, { type: 'window', window: window }) } }
comboBox在上述代码段中声明的.qml 文件分配当前视频源。
ComboBox { id: comboBox width: Style.widthLong height: Style.height background: StyleRectangle { anchors.fill: parent } model: videoSourceModel displayText: typeof currentValue === 'undefined' || currentValue.type === 'toggler' ? "Unavailable" : currentText font.pointSize: Style.fontSize textRole: "text" valueRole: "value" onCurrentValueChanged: { if (typeof currentValue === 'undefined') return if (currentValue.type === 'screen') screenCapture.screen = currentValue.screen else if (currentValue.type === 'camera') camera.cameraDevice = currentValue.camera
选择音频输入
实现方式与选择视频源相同，在AudioInputSelect.qml 中定义如下：
Row { id: root height: Style.height property AudioInput selected: available ? audioInput : null property bool available: (typeof comboBox.currentValue !== 'undefined') && audioSwitch.checked Component.onCompleted: { audioInputModel.populate() comboBox.currentIndex = 0 } MediaDevices { id: mediaDevices } AudioInput { id: audioInput; muted: !audioSwitch.checked } Switch { id: audioSwitch; height: Style.height; checked: true } ListModel { id: audioInputModel property var audioInputs: mediaDevices.audioInputs function populate() { audioInputModel.clear() for (var audioDevice of audioInputs) audioInputModel.append({ text: audioDevice.description, value: { type: 'audioDevice', audioDevice: audioDevice } }) } } ComboBox { id: comboBox width: Style.widthLong height: Style.height background: StyleRectangle { anchors.fill: parent } model: audioInputModel textRole: "text" font.pointSize: Style.fontSize displayText: typeof currentValue === 'undefined' ? "unavailable" : currentText valueRole: "value"
