财富服务器

演示如何为网络服务创建服务器。

本示例旨在与财富客户端示例或阻塞财富客户端示例同时运行。

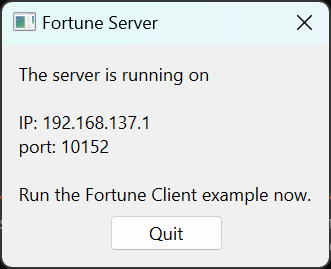

财富服务器示例截图

它使用QTcpServer 接受传入的 TCP 连接,并使用基于QDataStream 的简单数据传输协议向连接的客户端(来自富贵客户端示例)写入富贵,然后关闭连接。

class Server : public QDialog
{
    Q_OBJECT

public:
    explicit Server(QWidget *parent = nullptr);

private slots:
    void sendFortune();

private:
    void initServer();

    QLabel *statusLabel = nullptr;
    QTcpServer *tcpServer = nullptr;
    QList<QString> fortunes;
};

服务器使用一个只有一个插槽的简单类来实现,用于处理传入的连接。

    tcpServer = new QTcpServer(this);
    if (!tcpServer->listen()) {
        QMessageBox::critical(this, tr("Fortune Server"),
                              tr("Unable to start the server: %1.")
                              .arg(tcpServer->errorString()));
        close();
        return;
    }
    QString ipAddress;
    const QList<QHostAddress> ipAddressesList = QNetworkInterface::allAddresses();
    // use the first non-localhost IPv4 address
    for (const QHostAddress &entry : ipAddressesList) {
        if (entry != QHostAddress::LocalHost && entry.toIPv4Address()) {
            ipAddress = entry.toString();
            break;
        }
    }
    // if we did not find one, use IPv4 localhost
    if (ipAddress.isEmpty())
        ipAddress = QHostAddress(QHostAddress::LocalHost).toString();
    statusLabel->setText(tr("The server is running on\n\nIP: %1\nport: %2\n\n"
                            "Run the Fortune Client example now.")
                         .arg(ipAddress).arg(tcpServer->serverPort()));

在构造函数中,我们的服务器对象会调用QTcpServer::listen() 来设置QTcpServer ,以便在任意端口上监听所有地址。然后在标签中显示QTcpServer 选定的端口,以便用户知道财富客户端应该连接到哪个端口。

fortunes << tr("You've been leading a dog's life. Stay off the furniture.")
         << tr("You've got to think about tomorrow.")
         << tr("You will be surprised by a loud noise.")
         << tr("You will feel hungry again in another hour.")
         << tr("You might have mail.")
         << tr("You cannot kill time without injuring eternity.")
         << tr("Computers are not intelligent. They only think they are.");

我们的服务器会生成一个随机运势列表,发送给连接的客户端。

connect(tcpServer, &QTcpServer::newConnection, this, &Server::sendFortune);

当客户端连接到我们的服务器时,QTcpServer 将发出QTcpServer::newConnection() 。反过来,这将调用我们的 sendFortune() 槽:

void Server::sendFortune()
{
    QByteArray block;
    QDataStream out(&block, QIODevice::WriteOnly);
    out.setVersion(QDataStream::Qt_6_5);

    out << fortunes[QRandomGenerator::global()->bounded(fortunes.size())];

这个槽的目的是从我们的财富列表中随机选择一行,使用QDataStream 将其编码为QByteArray ,然后写入连接的套接字。这是使用QTcpSocket 传输二进制数据的常用方法。首先,我们创建一个QByteArray 和一个QDataStream 对象,将字节数组传递给QDataStream 的构造函数。然后,我们显式地将QDataStream 的协议版本设置为QDataStream::Qt_5_10 ,以确保我们能与未来版本的 Qt XML 客户端通信(请参阅QDataStream::setVersion() )。我们继续以流方式输入随机财富。

    QTcpSocket *clientConnection = tcpServer->nextPendingConnection();
    connect(clientConnection, &QAbstractSocket::disconnected,
            clientConnection, &QObject::deleteLater);

然后,我们调用QTcpServer::nextPendingConnection() 返回代表连接服务器端的QTcpSocket 。通过将QTcpSocket::disconnected() 连接到QObject::deleteLater() ,我们可以确保套接字在断开连接后被删除。

    clientConnection->write(block);
    clientConnection->disconnectFromHost();
}

我们使用QTcpSocket::write() 写入已编码的财富值,最后调用QTcpSocket::disconnectFromHost() ,在QTcpSocket 完成向网络写入财富值后关闭连接。由于QTcpSocket 是异步工作的,因此数据将在该函数返回后写入,控制权回到 Qt 的事件循环。然后,套接字将关闭,进而导致QObject::deleteLater() 删除套接字。

示例项目 @ code.qt.io

另请参阅 " 财富客户端 ""线程财富服务器"。
