场景图 - QML 下的 Direct3D 11

演示如何在Qt Quick 场景下直接使用 Direct3D 11 进行渲染。

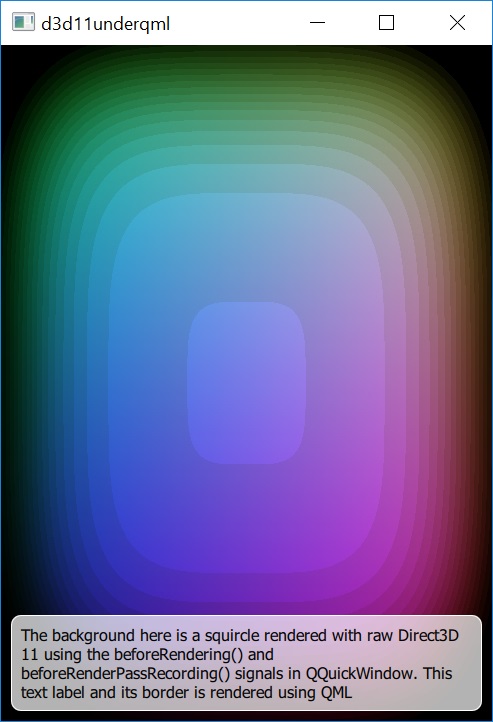

Direct3D 11 Under QML 示例展示了应用程序如何利用QQuickWindow::beforeRendering() 信号在Qt Quick 场景下绘制自定义 D3D11 内容。该信号在场景图开始渲染之前的每一帧开始时发出,因此响应该信号的任何 D3D11 绘制调用都将堆叠到Qt Quick 项下。

作为替代方案,希望在Qt Quick 场景之上渲染 D3D11 内容的应用程序可以通过连接QQuickWindow::afterRendering() 信号来实现。

在这个示例中,我们还将看到如何让 QML 暴露的值影响 D3D11 渲染。我们使用 QML 文件中的NumberAnimation 来动画阈值,绘制松鼠的 HLSL 着色程序会使用该值。

该示例在大多数方面与OpenGL Under QMLMetal Under QMLVulkan Under QML示例相同,都是通过不同的本地 API 渲染相同的自定义内容。

示例项目 @ code.qt.io
