缓存 SQL 表

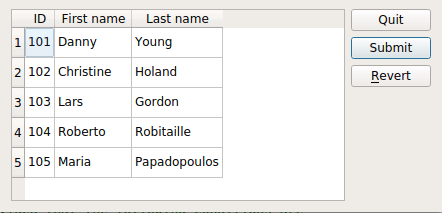

缓存表示例展示了如何使用表视图访问数据库,缓存对数据的任何更改,直到用户使用推送按钮明确提交这些更改。
该示例包含一个单独的类TableEditor
,它是一个自定义对话窗口部件,允许用户修改存储在数据库中的数据。我们将首先回顾该类的定义以及如何使用该类,然后再看看该类的实现。
TableEditor 类定义
TableEditor
类继承于QWidget ,使表格编辑器部件成为一个顶层对话窗口。
class TableEditor : public QWidget { Q_OBJECT public: explicit TableEditor(const QString &tableName, QWidget *parent = nullptr); private slots: void submit(); private: QPushButton *submitButton; QPushButton *revertButton; QPushButton *quitButton; QDialogButtonBox *buttonBox; QSqlTableModel *model; };
TableEditor
构造函数需要两个参数:第一个参数是TableEditor
对象将操作的数据库表的引用。另一个是指向父窗口部件的指针,并传递给基类构造函数。
请注意QSqlTableModel 变量声明:正如我们将在本例中看到的,QSqlTableModel 类可用于为QTableView 等视图类提供数据。QSqlTableModel 类提供了一个可编辑的数据模型,可以从一个表中读写数据库记录。它建立在低级的QSqlQuery 类之上,后者提供了执行和操作 SQL 语句的方法。
我们还将展示如何使用表视图来缓存对数据的任何更改,直到用户明确要求提交这些更改。因此,除了模型和编辑器按钮外,我们还需要声明一个submit()
插槽。
连接数据库 |
---|
在使用TableEditor 类之前,我们必须创建一个与包含要编辑的表的数据库的连接:int main(int argc, char *argv[]) { QApplication app(argc, argv); if (!createConnection()) return 1; TableEditor editor("person"); editor.show(); return app.exec(); }
static bool createConnection() { QSqlDatabase db = QSqlDatabase::addDatabase("QSQLITE"); db.setDatabaseName(":memory:"); if (!db.open()) { QMessageBox::critical(nullptr, QObject::tr("Cannot open database"), QObject::tr("Unable to establish a database connection.\n" "This example needs SQLite support. Please read " "the Qt SQL driver documentation for information how " "to build it.\n\n" "Click Cancel to exit."), QMessageBox::Cancel); return false; } QSqlQuery query; query.exec("create table person (id int primary key, " "firstname varchar(20), lastname varchar(20))"); query.exec("insert into person values(101, 'Danny', 'Young')"); query.exec("insert into person values(102, 'Christine', 'Holand')"); query.exec("insert into person values(103, 'Lars', 'Gordon')"); query.exec("insert into person values(104, 'Roberto', 'Robitaille')"); query.exec("insert into person values(105, 'Maria', 'Papadopoulos')"); query.exec("create table items (id int primary key," "imagefile int," "itemtype varchar(20)," "description varchar(100))"); query.exec("insert into items " "values(0, 0, 'Qt'," "'Qt is a full development framework with tools designed to " "streamline the creation of stunning applications and " "amazing user interfaces for desktop, embedded and mobile " "platforms.')"); query.exec("insert into items " "values(1, 1, 'Qt Quick'," "'Qt Quick is a collection of techniques designed to help " "developers create intuitive, modern-looking, and fluid " "user interfaces using a CSS & JavaScript like language.')"); query.exec("insert into items " "values(2, 2, 'Qt Creator'," "'Qt Creator is a powerful cross-platform integrated " "development environment (IDE), including UI design tools " "and on-device debugging.')"); query.exec("insert into items " "values(3, 3, 'Qt Project'," "'The Qt Project governs the open source development of Qt, " "allowing anyone wanting to contribute to join the effort " "through a meritocratic structure of approvers and " "maintainers.')"); query.exec("create table images (itemid int, file varchar(20))"); query.exec("insert into images values(0, 'images/qt-logo.png')"); query.exec("insert into images values(1, 'images/qt-quick.png')"); query.exec("insert into images values(2, 'images/qt-creator.png')"); query.exec("insert into images values(3, 'images/qt-project.png')"); return true; }
|
TableEditor 类的实现
类的实现只包括两个函数,即构造函数和submit()
槽。在构造函数中,我们创建并自定义数据模型和各种窗口元素:
TableEditor::TableEditor(const QString &tableName, QWidget *parent) : QWidget(parent) { model = new QSqlTableModel(this); model->setTable(tableName); model->setEditStrategy(QSqlTableModel::OnManualSubmit); model->select(); model->setHeaderData(0, Qt::Horizontal, tr("ID")); model->setHeaderData(1, Qt::Horizontal, tr("First name")); model->setHeaderData(2, Qt::Horizontal, tr("Last name"));
首先,我们创建数据模型,并设置希望模型运行的 SQL 数据库表。请注意,QSqlTableModel::setTable() 函数不会从表中选择数据,它只会获取字段信息。因此,我们稍后会调用QSqlTableModel::select() 函数,用表中的数据填充模型。可以通过指定筛选器和排序条件来自定义选择(详情请查看QSqlTableModel 类文档)。
我们还设置了模型的编辑策略。编辑策略决定了用户在视图中所做的更改何时实际应用到数据库。由于我们希望在用户明确提交之前缓存表视图(即模型)中的更改,因此我们选择QSqlTableModel::OnManualSubmit 策略。其他选择是QSqlTableModel::OnFieldChange 和QSqlTableModel::OnRowChange 。
最后,我们使用setHeaderData() 函数设置视图标题中显示的标签,该函数由模型继承自QSqlQueryModel 类。
QTableView *view = new QTableView; view->setModel(model); view->resizeColumnsToContents();
然后,我们创建表格视图。QTableView 类提供了表格视图的默认模型/视图实现,也就是说,它实现了显示来自模型的项目的表格视图。它还允许用户编辑项目,并将更改存储在模型中。要创建只读视图,可使用视图继承自QAbstractItemView 类的editTriggers 属性设置适当的标记。
为了让视图显示我们的数据,我们使用setModel() 函数将模型传递给视图。
submitButton = new QPushButton(tr("Submit")); submitButton->setDefault(true); revertButton = new QPushButton(tr("&Revert")); quitButton = new QPushButton(tr("Quit")); buttonBox = new QDialogButtonBox(Qt::Vertical); buttonBox->addButton(submitButton, QDialogButtonBox::ActionRole); buttonBox->addButton(revertButton, QDialogButtonBox::ActionRole); buttonBox->addButton(quitButton, QDialogButtonBox::RejectRole);
TableEditor
的按钮是普通的QPushButton 对象。我们将它们添加到按钮框中,以确保按钮以适合当前 widget 风格的布局显示。这样做的理由是,对话框和消息框中的按钮布局通常符合该平台的界面指南。QDialogButtonBox 允许开发人员添加按钮,并会自动使用适合用户桌面环境的布局。
对话框的大多数按钮都遵循一定的作用。使用addButton() 函数向按钮框添加按钮时,必须使用QDialogButtonBox::ButtonRole 枚举指定按钮的角色。另外,QDialogButtonBox 也提供了几个标准按钮(如OK,Cancel,Save )供您使用。它们以标志的形式存在,因此您可以在构造函数中将它们连在一起。
connect(submitButton, &QPushButton::clicked, this, &TableEditor::submit); connect(revertButton, &QPushButton::clicked, model, &QSqlTableModel::revertAll); connect(quitButton, &QPushButton::clicked, this, &TableEditor::close);
我们将Quit 按钮连接到表格编辑器的close() 插槽,将Submit 按钮连接到我们的私有submit()
插槽。后者将负责数据交易。最后,我们将Revert 按钮连接到模型的revertAll() 插槽,还原所有待处理的更改(即恢复原始数据)。
QHBoxLayout *mainLayout = new QHBoxLayout; mainLayout->addWidget(view); mainLayout->addWidget(buttonBox); setLayout(mainLayout); setWindowTitle(tr("Cached Table")); }
最后,我们将按钮框和表格视图添加到布局中,将布局安装到表格编辑器部件上,并设置编辑器的窗口标题。
void TableEditor::submit() { model->database().transaction(); if (model->submitAll()) { model->database().commit(); } else { model->database().rollback(); QMessageBox::warning(this, tr("Cached Table"), tr("The database reported an error: %1") .arg(model->lastError().text())); } }
每当用户点击Submit 按钮保存更改时,就会调用submit()
槽。
首先,我们使用QSqlDatabase::transaction() 函数开始数据库事务。数据库事务是与数据库管理系统或类似系统交互的一个单元,它以一种独立于其他事务的连贯、可靠的方式进行处理。使用QSqlTableModel::database() 函数可以获得所使用数据库的指针。
然后,我们尝试提交所有待处理的更改,即模型的修改项。如果没有错误发生,我们就使用QSqlDatabase::commit() 函数将事务提交到数据库(请注意,在某些数据库中,如果数据库上有一个活动的QSqlQuery ,该函数将不起作用)。否则,我们将使用QSqlDatabase::rollback() 函数执行事务回滚,并向用户发出警告。
