PySide6.QtGui.QPainterPath¶

class QPainterPath¶

The QPainterPath class provides a container for painting operations, enabling graphical shapes to be constructed and reused. More_…

Synopsis¶

Methods¶

def __init__()
def addEllipse()
def addPath()
def addPolygon()
def addRect()
def addRegion()
def addRoundedRect()
def addText()
def angleAtPercent()
def arcMoveTo()
def arcTo()
def boundingRect()
def capacity()
def clear()
def closeSubpath()
def connectPath()
def contains()
def controlPointRect()
def cubicTo()
def currentPosition()
def elementAt()
def elementCount()
def fillRule()
def intersected()
def intersects()
def isEmpty()
def length()
def lineTo()
def moveTo()
def __ne__()
def __and__()
def __iand__()
def __mul__()
def __add__()
def __iadd__()
def __sub__()
def __isub__()
def __eq__()
def __or__()
def __ior__()
def percentAtLength()
def pointAtPercent()
def quadTo()
def reserve()
def setElementPositionAt()
def setFillRule()
def simplified()
def slopeAtPercent()
def subtracted()
def swap()
def toFillPolygon()
def toFillPolygons()
def toReversed()
def toSubpathPolygons()
def translate()
def translated()
def united()

Note

This documentation may contain snippets that were automatically translated from C++ to Python. We always welcome contributions to the snippet translation. If you see an issue with the translation, you can also let us know by creating a ticket on https:/bugreports.qt.io/projects/PYSIDE

Detailed Description¶

Warning

This section contains snippets that were automatically translated from C++ to Python and may contain errors.

A painter path is an object composed of a number of graphical building blocks, such as rectangles, ellipses, lines, and curves. Building blocks can be joined in closed subpaths, for example as a rectangle or an ellipse. A closed path has coinciding start and end points. Or they can exist independently as unclosed subpaths, such as lines and curves.

A QPainterPath object can be used for filling, outlining, and clipping. To generate fillable outlines for a given painter path, use the QPainterPathStroker class. The main advantage of painter paths over normal drawing operations is that complex shapes only need to be created once; then they can be drawn many times using only calls to the drawPath() function.

QPainterPath provides a collection of functions that can be used to obtain information about the path and its elements. In addition it is possible to reverse the order of the elements using the toReversed() function. There are also several functions to convert this painter path object into a polygon representation.

Composing a QPainterPath¶

A QPainterPath object can be constructed as an empty path, with a given start point, or as a copy of another QPainterPath object. Once created, lines and curves can be added to the path using the lineTo() , arcTo() , cubicTo() and quadTo() functions. The lines and curves stretch from the currentPosition() to the position passed as argument.

The currentPosition() of the QPainterPath object is always the end position of the last subpath that was added (or the initial start point). Use the moveTo() function to move the currentPosition() without adding a component. The moveTo() function implicitly starts a new subpath, and closes the previous one. Another way of starting a new subpath is to call the closeSubpath() function which closes the current path by adding a line from the currentPosition() back to the path’s start position. Note that the new path will have (0, 0) as its initial currentPosition() .

QPainterPath class also provides several convenience functions to add closed subpaths to a painter path: addEllipse() , addPath() , addRect() , addRegion() and addText() . The addPolygon() function adds an unclosed subpath. In fact, these functions are all collections of moveTo() , lineTo() and cubicTo() operations.

In addition, a path can be added to the current path using the connectPath() function. But note that this function will connect the last element of the current path to the first element of given one by adding a line.

Below is a code snippet that shows how a QPainterPath object can be used:

qpainterpath-construction1

path = QPainterPath()
path.addRect(20, 20, 60, 60)
path.moveTo(0, 0)
path.cubicTo(99, 0, 50, 50, 99, 99)
path.cubicTo(0, 99, 50, 50, 0, 0)
painter = QPainter(self)
painter.fillRect(0, 0, 100, 100, Qt.white)
painter.setPen(QPen(QColor(79, 106, 25), 1, Qt.SolidLine,
                    Qt.FlatCap, Qt.MiterJoin))
painter.setBrush(QColor(122, 163, 39))
painter.drawPath(path)

The painter path is initially empty when constructed. We first add a rectangle, which is a closed subpath. Then we add two bezier curves which together form a closed subpath even though they are not closed individually. Finally we draw the entire path. The path is filled using the default fill rule, Qt::OddEvenFill. Qt provides two methods for filling paths:

Qt::OddEvenFill

Qt::WindingFill

See the Qt::FillRule documentation for the definition of the rules. A painter path’s currently set fill rule can be retrieved using the fillRule() function, and altered using the setFillRule() function.

QPainterPath Information¶

The QPainterPath class provides a collection of functions that returns information about the path and its elements.

The currentPosition() function returns the end point of the last subpath that was added (or the initial start point). The elementAt() function can be used to retrieve the various subpath elements, the number of elements can be retrieved using the elementCount() function, and the isEmpty() function tells whether this QPainterPath object contains any elements at all.

The controlPointRect() function returns the rectangle containing all the points and control points in this path. This function is significantly faster to compute than the exact boundingRect() which returns the bounding rectangle of this painter path with floating point precision.

Finally, QPainterPath provides the contains() function which can be used to determine whether a given point or rectangle is inside the path, and the intersects() function which determines if any of the points inside a given rectangle also are inside this path.

QPainterPath Conversion¶

For compatibility reasons, it might be required to simplify the representation of a painter path: QPainterPath provides the toFillPolygon() , toFillPolygons() and toSubpathPolygons() functions which convert the painter path into a polygon. The toFillPolygon() returns the painter path as one single polygon, while the two latter functions return a list of polygons.

The toFillPolygons() and toSubpathPolygons() functions are provided because it is usually faster to draw several small polygons than to draw one large polygon, even though the total number of points drawn is the same. The difference between the two is the number of polygons they return: The toSubpathPolygons() creates one polygon for each subpath regardless of intersecting subpaths (i.e. overlapping bounding rectangles), while the toFillPolygons() functions creates only one polygon for overlapping subpaths.

The toFillPolygon() and toFillPolygons() functions first convert all the subpaths to polygons, then uses a rewinding technique to make sure that overlapping subpaths can be filled using the correct fill rule. Note that rewinding inserts additional lines in the polygon so the outline of the fill polygon does not match the outline of the path.

Examples¶

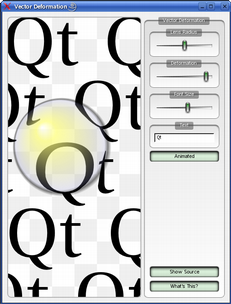

Qt provides the Painter Paths Example and the Vector Deformation example which are located in Qt’s example directory.

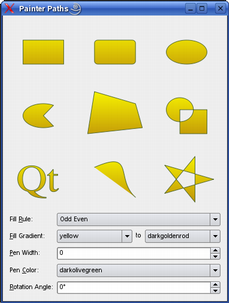

The Painter Paths Example shows how painter paths can be used to build complex shapes for rendering and lets the user experiment with the filling and stroking. The Vector Deformation Example shows how to use QPainterPath to draw text.

Painter Paths Example

Vector Deformation Example

See also

QPainterPathStroker QPainter QRegion Painter Paths Example

class ElementType¶

This enum describes the types of elements used to connect vertices in subpaths.

Note that elements added as closed subpaths using the addEllipse() , addPath() , addPolygon() , addRect() , addRegion() and addText() convenience functions, is actually added to the path as a collection of separate elements using the moveTo() , lineTo() and cubicTo() functions.

Constant

Description

QPainterPath.MoveToElement

A new subpath. See also moveTo() .

QPainterPath.LineToElement

A line. See also lineTo() .

QPainterPath.CurveToElement

A curve. See also cubicTo() and quadTo() .

QPainterPath.CurveToDataElement

The extra data required to describe a curve in a CurveToElement element.

See also

elementAt() elementCount()

Constant	Description
QPainterPath.MoveToElement	A new subpath. See also `moveTo()` .
QPainterPath.LineToElement	A line. See also `lineTo()` .
QPainterPath.CurveToElement	A curve. See also `cubicTo()` and `quadTo()` .
QPainterPath.CurveToDataElement	The extra data required to describe a curve in a CurveToElement element.

__init__()¶

Constructs an empty QPainterPath object.

__init__(other)

Parameters:: other – QPainterPath

Creates a QPainterPath object that is a copy of the given path.

See also

operator=()

__init__(startPoint)

Parameters:: startPoint – QPointF

Creates a QPainterPath object with the given startPoint as its current position.

addEllipse(rect)¶

Parameters:: rect – QRectF

Warning

This section contains snippets that were automatically translated from C++ to Python and may contain errors.

Creates an ellipse within the specified boundingRectangle and adds it to the painter path as a closed subpath.

The ellipse is composed of a clockwise curve, starting and finishing at zero degrees (the 3 o’clock position).

qpainterpath-addellipse1

myGradient = QLinearGradient()
myPen = QPen()
boundingRectangle = QRectF()
myPath = QPainterPath()
myPath.addEllipse(boundingRectangle)
painter = QPainter(self)
painter.setBrush(myGradient)
painter.setPen(myPen)
painter.drawPath(myPath)

See also

arcTo() drawEllipse() Composing a QPainterPath

addEllipse(center, rx, ry)

Parameters:

center – QPointF
rx – float
ry – float

This is an overloaded function.

Creates an ellipse positioned at center with radii rx and ry, and adds it to the painter path as a closed subpath.

addEllipse(x, y, w, h)

Parameters:

x – float
y – float
w – float
h – float

This is an overloaded function.

Creates an ellipse within the bounding rectangle defined by its top-left corner at (x, y), width and height, and adds it to the painter path as a closed subpath.

addPath(path)¶

Parameters:: path – QPainterPath

Adds the given path to this path as a closed subpath.

See also

connectPath() Composing a QPainterPath

addPolygon(polygon)¶

Parameters:: polygon – QPolygonF

Warning

This section contains snippets that were automatically translated from C++ to Python and may contain errors.

Adds the given polygon to the path as an (unclosed) subpath.

Note that the current position after the polygon has been added, is the last point in polygon. To draw a line back to the first point, use the closeSubpath() function.

qpainterpath-addpolygon1

myGradient = QLinearGradient()
myPen = QPen()
myPolygon = QPolygonF()
myPath = QPainterPath()
myPath.addPolygon(myPolygon)
painter = QPainter(self)
painter.setBrush(myGradient)
painter.setPen(myPen)
painter.drawPath(myPath)

See also

lineTo() Composing a QPainterPath

addRect(rect)¶

Parameters:: rect – QRectF

Warning

This section contains snippets that were automatically translated from C++ to Python and may contain errors.

Adds the given rectangle to this path as a closed subpath.

The rectangle is added as a clockwise set of lines. The painter path’s current position after the rectangle has been added is at the top-left corner of the rectangle.

qpainterpath-addrectangle1

myGradient = QLinearGradient()
myPen = QPen()
myRectangle = QRectF()
myPath = QPainterPath()
myPath.addRect(myRectangle)
painter = QPainter(self)
painter.setBrush(myGradient)
painter.setPen(myPen)
painter.drawPath(myPath)

See also

addRegion() lineTo() Composing a QPainterPath

addRect(x, y, w, h)

Parameters:

x – float
y – float
w – float
h – float

This is an overloaded function.

Adds a rectangle at position (x, y), with the given width and height, as a closed subpath.

addRegion(region)¶

Parameters:: region – QRegion

Adds the given region to the path by adding each rectangle in the region as a separate closed subpath.

See also

addRect() Composing a QPainterPath

addRoundedRect(rect, xRadius, yRadius[, mode=Qt.AbsoluteSize])¶

Parameters:

rect – QRectF
xRadius – float
yRadius – float
mode – SizeMode

Adds the given rectangle rect with rounded corners to the path.

The xRadius and yRadius arguments specify the radii of the ellipses defining the corners of the rounded rectangle. When mode is Qt::RelativeSize, xRadius and yRadius are specified in percentage of half the rectangle’s width and height respectively, and should be in the range 0.0 to 100.0.

See also

addRect()

addRoundedRect(x, y, w, h, xRadius, yRadius[, mode=Qt.AbsoluteSize])

Parameters:

x – float
y – float
w – float
h – float
xRadius – float
yRadius – float
mode – SizeMode

This is an overloaded function.

Adds the given rectangle x, y, w, h with rounded corners to the path.

addText(point, f, text)¶

Parameters:

point – QPointF
f – QFont
text – str

Warning

This section contains snippets that were automatically translated from C++ to Python and may contain errors.

Adds the given text to this path as a set of closed subpaths created from the font supplied. The subpaths are positioned so that the left end of the text’s baseline lies at the specified point.

Some fonts may yield overlapping subpaths and will require the Qt::WindingFill fill rule for correct rendering.

qpainterpath-addtext1

myGradient = QLinearGradient()
myPen = QPen()
myFont = QFont()
baseline = QPointF(x, y)
myPath = QPainterPath()
myPath.addText(baseline, myFont, tr("Qt"))
painter = QPainter(self)
painter.setBrush(myGradient)
painter.setPen(myPen)
painter.drawPath(myPath)

See also

drawText() Composing a QPainterPath setFillRule()

addText(x, y, f, text)

Parameters:

x – float
y – float
f – QFont
text – str

This is an overloaded function.

Adds the given text to this path as a set of closed subpaths created from the font supplied. The subpaths are positioned so that the left end of the text’s baseline lies at the point specified by (x, y).

angleAtPercent(t)¶

Parameters:: t – float
Return type:: float

Returns the angle of the path tangent at the percentage t. The argument t has to be between 0 and 1.

Positive values for the angles mean counter-clockwise while negative values mean the clockwise direction. Zero degrees is at the 3 o’clock position.

Note that similarly to the other percent methods, the percentage measurement is not linear with regards to the length if curves are present in the path. When curves are present the percentage argument is mapped to the t parameter of the Bezier equations.

arcMoveTo(rect, angle)¶

Parameters:

rect – QRectF
angle – float

Creates a move to that lies on the arc that occupies the given rectangle at angle.

Angles are specified in degrees. Clockwise arcs can be specified using negative angles.

See also

moveTo() arcTo()

arcMoveTo(x, y, w, h, angle)

Parameters:

x – float
y – float
w – float
h – float
angle – float

This is an overloaded function.

Creates a move to that lies on the arc that occupies the QRectF(x, y, width, height) at angle.

arcTo(rect, startAngle, arcLength)¶

Parameters:

rect – QRectF
startAngle – float
arcLength – float

Warning

This section contains snippets that were automatically translated from C++ to Python and may contain errors.

Creates an arc that occupies the given rectangle, beginning at the specified startAngle and extending sweepLength degrees counter-clockwise.

Angles are specified in degrees. Clockwise arcs can be specified using negative angles.

Note that this function connects the starting point of the arc to the current position if they are not already connected. After the arc has been added, the current position is the last point in arc. To draw a line back to the first point, use the closeSubpath() function.

qpainterpath-arcto1

myPath = QPainterPath()
myPath.moveTo(center)
myPath.arcTo(boundingRect, startAngle,
             sweepLength)
painter = QPainter(self)
painter.setBrush(myGradient)
painter.setPen(myPen)
painter.drawPath(myPath)

See also

arcMoveTo() addEllipse() drawArc() drawPie() Composing a QPainterPath

arcTo(x, y, w, h, startAngle, arcLength)

Parameters:

x – float
y – float
w – float
h – float
startAngle – float
arcLength – float

This is an overloaded function.

Creates an arc that occupies the rectangle QRectF(x, y, width, height), beginning at the specified startAngle and extending sweepLength degrees counter-clockwise.

boundingRect()¶

Return type:: QRectF

Returns the bounding rectangle of this painter path as a rectangle with floating point precision.

See also

controlPointRect()

capacity()¶

Return type:: int

Returns the number of elements allocated by the QPainterPath .

See also

clear() reserve()

clear()¶

Clears the path elements stored.

This allows the path to reuse previous memory allocations.

See also

reserve() capacity()

closeSubpath()¶

Closes the current subpath by drawing a line to the beginning of the subpath, automatically starting a new path. The current point of the new path is (0, 0).

If the subpath does not contain any elements, this function does nothing.

See also

moveTo() Composing a QPainterPath

connectPath(path)¶

Parameters:: path – QPainterPath

Connects the given path to this path by adding a line from the last element of this path to the first element of the given path.

See also

addPath() Composing a QPainterPath

contains(p)¶

Parameters:: p – QPainterPath
Return type:: bool

Returns true if the given path p is contained within the current path. Returns false if any edges of the current path and p intersect.

Set operations on paths will treat the paths as areas. Non-closed paths will be treated as implicitly closed.

See also

intersects()

contains(pt)

Parameters:: pt – QPointF
Return type:: bool

Returns true if the given point is inside the path, otherwise returns false.

See also

intersects()

contains(rect)

Parameters:: rect – QRectF
Return type:: bool

Returns true if the given rectangle is inside the path, otherwise returns false.

controlPointRect()¶

Return type:: QRectF

Returns the rectangle containing all the points and control points in this path.

This function is significantly faster to compute than the exact boundingRect() , and the returned rectangle is always a superset of the rectangle returned by boundingRect() .

See also

boundingRect()

cubicTo(ctrlPt1, ctrlPt2, endPt)¶

Parameters:

ctrlPt1 – QPointF
ctrlPt2 – QPointF
endPt – QPointF

Warning

This section contains snippets that were automatically translated from C++ to Python and may contain errors.

Adds a cubic Bezier curve between the current position and the given endPoint using the control points specified by c1, and c2.

After the curve is added, the current position is updated to be at the end point of the curve.

qpainterpath-cubicto1

myGradient = QLinearGradient()
myPen = QPen()
myPath = QPainterPath()
myPath.cubicTo(c1, c2, endPoint)
painter = QPainter(self)
painter.setBrush(myGradient)
painter.setPen(myPen)
painter.drawPath(myPath)

See also

quadTo() Composing a QPainterPath

cubicTo(ctrlPt1x, ctrlPt1y, ctrlPt2x, ctrlPt2y, endPtx, endPty)

Parameters:

ctrlPt1x – float
ctrlPt1y – float
ctrlPt2x – float
ctrlPt2y – float
endPtx – float
endPty – float

This is an overloaded function.

Adds a cubic Bezier curve between the current position and the end point (endPointX, endPointY) with control points specified by (c1X, c1Y) and (c2X, c2Y).

currentPosition()¶

Return type:: QPointF

Returns the current position of the path.

elementAt(i)¶

Parameters:: i – int
Return type:: Element

Returns the element at the given index in the painter path.

See also

ElementType elementCount() isEmpty()

elementCount()¶

Return type:: int

Returns the number of path elements in the painter path.

See also

ElementType elementAt() isEmpty()

fillRule()¶

Return type:: FillRule

Returns the painter path’s currently set fill rule.

See also

setFillRule()

intersected(r)¶

Parameters:: r – QPainterPath
Return type:: QPainterPath

Returns a path which is the intersection of this path’s fill area and p's fill area. Bezier curves may be flattened to line segments due to numerical instability of doing bezier curve intersections.

intersects(p)¶

Parameters:: p – QPainterPath
Return type:: bool

Returns true if the current path intersects at any point the given path p. Also returns true if the current path contains or is contained by any part of p.

Set operations on paths will treat the paths as areas. Non-closed paths will be treated as implicitly closed.

See also

contains()

intersects(rect)

Parameters:: rect – QRectF
Return type:: bool

Returns true if any point in the given rectangle intersects the path; otherwise returns false.

There is an intersection if any of the lines making up the rectangle crosses a part of the path or if any part of the rectangle overlaps with any area enclosed by the path. This function respects the current fillRule to determine what is considered inside the path.

See also

contains()

isEmpty()¶

Return type:: bool

Returns true if either there are no elements in this path, or if the only element is a MoveToElement ; otherwise returns false.

See also

elementCount()

length()¶

Return type:: float

Returns the length of the current path.

lineTo(p)¶

Parameters:: p – QPointF

Adds a straight line from the current position to the given endPoint. After the line is drawn, the current position is updated to be at the end point of the line.

See also

addPolygon() addRect() Composing a QPainterPath

lineTo(x, y)

Parameters:

x – float
y – float

This is an overloaded function.

Draws a line from the current position to the point (x, y).

moveTo(p)¶

Parameters:: p – QPointF

Moves the current point to the given point, implicitly starting a new subpath and closing the previous one.

See also

closeSubpath() Composing a QPainterPath

moveTo(x, y)

Parameters:

x – float
y – float

This is an overloaded function.

Moves the current position to (x, y) and starts a new subpath, implicitly closing the previous path.

__ne__(other)¶

Parameters:: other – QPainterPath
Return type:: bool

Returns true if this painter path differs from the given path.

Note that comparing paths may involve a per element comparison which can be slow for complex paths.

See also

operator==()

__and__(other)¶

Parameters:: other – QPainterPath
Return type:: QPainterPath

Returns the intersection of this path and the other path.

See also

intersected() operator&=() united() operator|()

__iand__(other)¶

Parameters:: other – QPainterPath
Return type:: QPainterPath

Intersects this path with other and returns a reference to this path.

See also

intersected() operator&() operator|=()

__mul__(m)¶

Parameters:: m – QTransform
Return type:: QPainterPath

__add__(other)¶

Parameters:: other – QPainterPath
Return type:: QPainterPath

Returns the union of this path and the other path. This function is equivalent to operator|().

See also

united() operator+=() operator-()

__iadd__(other)¶

Parameters:: other – QPainterPath
Return type:: QPainterPath

Unites this path with other, and returns a reference to this path. This is equivalent to operator|=().

See also

united() operator+() operator-=()

__sub__(other)¶

Parameters:: other – QPainterPath
Return type:: QPainterPath

Subtracts the other path from a copy of this path, and returns the copy.

See also

subtracted() operator-=() operator+()

__isub__(other)¶

Parameters:: other – QPainterPath
Return type:: QPainterPath

Subtracts other from this path, and returns a reference to this path.

See also

subtracted() operator-() operator+=()

__eq__(other)¶

Parameters:: other – QPainterPath
Return type:: bool

Returns true if this painterpath is equal to the given path.

Note that comparing paths may involve a per element comparison which can be slow for complex paths.

See also

operator!=()

__or__(other)¶

Parameters:: other – QPainterPath
Return type:: QPainterPath

Returns the union of this path and the other path.

See also

united() operator|=() intersected() operator&()

__ior__(other)¶

Parameters:: other – QPainterPath
Return type:: QPainterPath

Unites this path with other and returns a reference to this path.

See also

united() operator|() operator&=()

percentAtLength(t)¶

Parameters:: t – float
Return type:: float

Returns percentage of the whole path at the specified length len.

Note that similarly to other percent methods, the percentage measurement is not linear with regards to the length, if curves are present in the path. When curves are present the percentage argument is mapped to the t parameter of the Bezier equations.

pointAtPercent(t)¶

Parameters:: t – float
Return type:: QPointF

Returns the point at at the percentage t of the current path. The argument t has to be between 0 and 1.

quadTo(ctrlPt, endPt)¶

Parameters:

ctrlPt – QPointF
endPt – QPointF

Adds a quadratic Bezier curve between the current position and the given endPoint with the control point specified by c.

After the curve is added, the current point is updated to be at the end point of the curve.

See also

cubicTo() Composing a QPainterPath

quadTo(ctrlPtx, ctrlPty, endPtx, endPty)

Parameters:

ctrlPtx – float
ctrlPty – float
endPtx – float
endPty – float

This is an overloaded function.

Adds a quadratic Bezier curve between the current point and the endpoint (endPointX, endPointY) with the control point specified by (cx, cy).

reserve(size)¶

Parameters:: size – int

Reserves a given amount of elements in QPainterPath ‘s internal memory.

Attempts to allocate memory for at least size elements.

See also

clear() capacity() reserve()

setElementPositionAt(i, x, y)¶

Parameters:

i – int
x – float
y – float

Sets the x and y coordinate of the element at index index to x and y.

setFillRule(fillRule)¶

Parameters:: fillRule – FillRule

Sets the fill rule of the painter path to the given fillRule. Qt provides two methods for filling paths:

Qt::OddEvenFill (default)

Qt::WindingFill

See also

fillRule()

simplified()¶

Return type:: QPainterPath

Returns a simplified version of this path. This implies merging all subpaths that intersect, and returning a path containing no intersecting edges. Consecutive parallel lines will also be merged. The simplified path will always use the default fill rule, Qt::OddEvenFill. Bezier curves may be flattened to line segments due to numerical instability of doing bezier curve intersections.

slopeAtPercent(t)¶

Parameters:: t – float
Return type:: float

Returns the slope of the path at the percentage t. The argument t has to be between 0 and 1.

subtracted(r)¶

Parameters:: r – QPainterPath
Return type:: QPainterPath

Returns a path which is p's fill area subtracted from this path’s fill area.

Set operations on paths will treat the paths as areas. Non-closed paths will be treated as implicitly closed. Bezier curves may be flattened to line segments due to numerical instability of doing bezier curve intersections.

swap(other)¶

Parameters:: other – QPainterPath

Swaps this painer path with other. This operation is very fast and never fails.

toFillPolygon([matrix=QTransform()])¶

Parameters:: matrix – QTransform
Return type:: QPolygonF

Converts the path into a polygon using the QTransform matrix, and returns the polygon.

The polygon is created by first converting all subpaths to polygons, then using a rewinding technique to make sure that overlapping subpaths can be filled using the correct fill rule.

Note that rewinding inserts addition lines in the polygon so the outline of the fill polygon does not match the outline of the path.

See also

toSubpathPolygons() toFillPolygons() QPainterPath Conversion

toFillPolygons([matrix=QTransform()])¶

Parameters:: matrix – QTransform
Return type:: .list of QPolygonF

Converts the path into a list of polygons using the QTransform matrix, and returns the list.

The function differs from the toFillPolygon() function in that it creates several polygons. It is provided because it is usually faster to draw several small polygons than to draw one large polygon, even though the total number of points drawn is the same.

The toFillPolygons() function differs from the toSubpathPolygons() function in that it create only polygon for subpaths that have overlapping bounding rectangles.

Like the toFillPolygon() function, this function uses a rewinding technique to make sure that overlapping subpaths can be filled using the correct fill rule. Note that rewinding inserts addition lines in the polygons so the outline of the fill polygon does not match the outline of the path.

See also

toSubpathPolygons() toFillPolygon() QPainterPath Conversion

toReversed()¶

Return type:: QPainterPath

Creates and returns a reversed copy of the path.

It is the order of the elements that is reversed: If a QPainterPath is composed by calling the moveTo() , lineTo() and cubicTo() functions in the specified order, the reversed copy is composed by calling cubicTo() , lineTo() and moveTo() .

toSubpathPolygons([matrix=QTransform()])¶

Parameters:: matrix – QTransform
Return type:: .list of QPolygonF

Converts the path into a list of polygons using the QTransform matrix, and returns the list.

This function creates one polygon for each subpath regardless of intersecting subpaths (i.e. overlapping bounding rectangles). To make sure that such overlapping subpaths are filled correctly, use the toFillPolygons() function instead.

See also

toFillPolygons() toFillPolygon() QPainterPath Conversion

translate(offset)¶

Parameters:: offset – QPointF

This is an overloaded function.

Translates all elements in the path by the given offset.

See also

translated()

translate(dx, dy)

Parameters:

dx – float
dy – float

Translates all elements in the path by (dx, dy).

See also

translated()

translated(offset)¶

Parameters:: offset – QPointF
Return type:: QPainterPath

This is an overloaded function.

Returns a copy of the path that is translated by the given offset.

See also

translate()

translated(dx, dy)

Parameters:

dx – float
dy – float

Return type:

QPainterPath

Returns a copy of the path that is translated by (dx, dy).

See also

translate()

united(r)¶

Parameters:: r – QPainterPath
Return type:: QPainterPath

Returns a path which is the union of this path’s fill area and p's fill area.

See also

intersected() subtracted()

class Element¶

The Element class specifies the position and type of a subpath. More_…

Synopsis¶

Methods¶

def isCurveTo()
def isLineTo()
def isMoveTo()
def __ne__()
def __eq__()

Note

Detailed Description¶

Once a QPainterPath object is constructed, subpaths like lines and curves can be added to the path (creating LineToElement and CurveToElement components).

The lines and curves stretch from the currentPosition() to the position passed as argument. The currentPosition() of the QPainterPath object is always the end position of the last subpath that was added (or the initial start point). The moveTo() function can be used to move the currentPosition() without adding a line or curve, creating a MoveToElement component.

See also

QPainterPath

PySide6.QtGui.QPainterPath.Element.x¶

PySide6.QtGui.QPainterPath.Element.y¶

PySide6.QtGui.QPainterPath.Element.type¶

isCurveTo()¶

Return type:: bool

Returns true if the element is a curve, otherwise returns false.

See also

type CurveToElement

isLineTo()¶

Return type:: bool

Returns true if the element is a line, otherwise returns false.

See also

type LineToElement

isMoveTo()¶

Return type:: bool

Returns true if the element is moving the current position, otherwise returns false.

See also

type MoveToElement

__ne__(e)¶

Parameters:: e – Element
Return type:: bool

Returns true if this element is not equal to other; otherwise returns false.

See also

operator==()

__eq__(e)¶

Parameters:: e – Element
Return type:: bool

Returns true if this element is equal to other; otherwise returns false.

See also

operator!=()
