QML Application Tutorial

This tutorial provides a quick walk-through of a python application that loads a QML file. QML is a declarative language that lets you design UIs faster than a traditional language, such as C++. The QtQml and QtQuick modules provides the necessary infrastructure for QML-based UIs.

In this tutorial, you’ll also learn how to provide data from Python as a QML context property, which is then consumed by the ListView defined in the QML file.

Before you begin, install the following prerequisites:

The following step-by-step instructions guide you through application development process using Qt Creator:

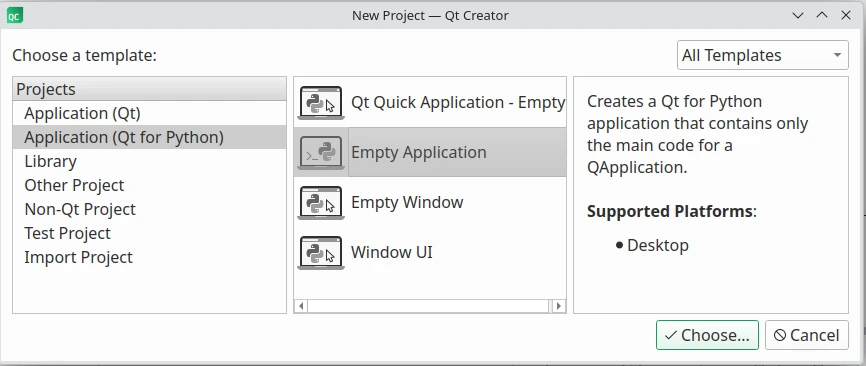

  1. Open Qt Creator and select File > New File or Project.. menu item to open following dialog:

    ../../_images/newpyproject.png
  2. Select Qt for Python - Empty from the list of application templates and select Choose.

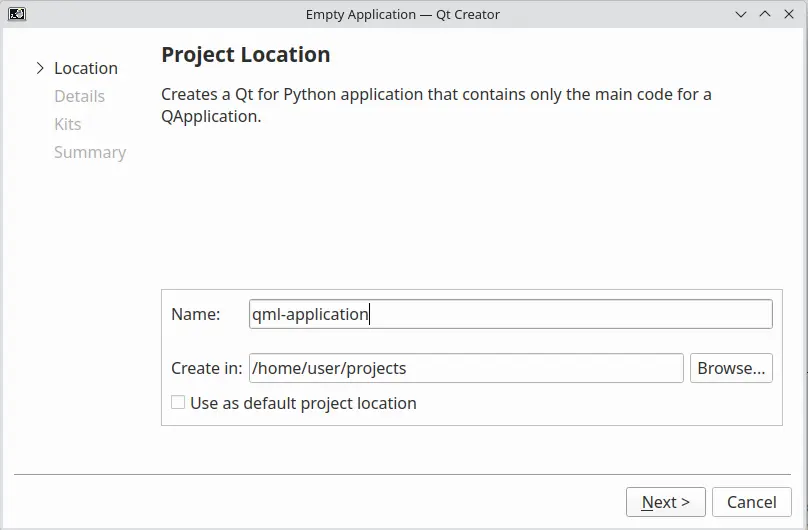

    ../../_images/pyprojname.png
  3. Give a Name to your project, choose its location in the filesystem, and select Finish to create an empty main.py and main.pyproject.

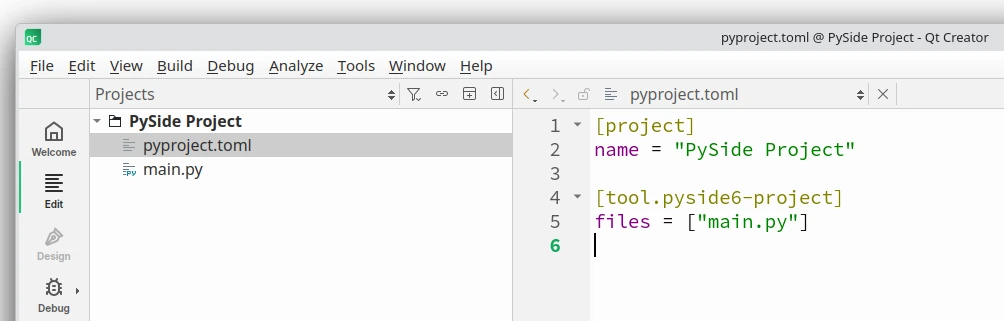

    ../../_images/pyprojxplor.png

    This should create a main.py and `main.pyproject files for the project.

  4. Download view.qml and logo.png and move them to your project folder.

  5. Double-click on main.pyproject to open it in edit mode, and append view.qml and logo.png to the files list. This is how your project file should look after this change:

    {
        "files": ["main.py", "view.qml", "logo.png"]
    }

  6. Now that you have the necessary bits for the application, import the Python modules in your main.py, and download country data and format it:

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21

    #!/usr/bin/env python
    # -*- conding: utf-8 -*-

    import os, sys, urllib.request, json
    import PySide6.QtQml
    from PySide6.QtQuick import QQuickView
    from PySide6.QtCore import QStringListModel, Qt, QUrl
    from PySide6.QtGui import QGuiApplication

    if __name__ == '__main__':

        #get our data
        url = "http://country.io/names.json"
        response = urllib.request.urlopen(url)
        data = json.loads(response.read().decode('utf-8'))

        #Format and sort the data
        data_list = list(data.values())
        data_list.sort()


  7. Now, set up the application window using PySide6.QtGui.QGuiApplication, which manages the application-wide settings.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26

    #!/usr/bin/env python
    # -*- conding: utf-8 -*-

    import os, sys, urllib.request, json
    import PySide6.QtQml
    from PySide6.QtQuick import QQuickView
    from PySide6.QtCore import QStringListModel, Qt, QUrl
    from PySide6.QtGui import QGuiApplication

    if __name__ == '__main__':

        #get our data
        url = "http://country.io/names.json"
        response = urllib.request.urlopen(url)
        data = json.loads(response.read().decode('utf-8'))

        #Format and sort the data
        data_list = list(data.values())
        data_list.sort()

        #Set up the application window
        app = QGuiApplication(sys.argv)
        view = QQuickView()
        view.setResizeMode(QQuickView.SizeRootObjectToView)



    Note

    Setting the resize policy is important if you want the root item to resize itself to fit the window or vice-a-versa. Otherwise, the root item will retain its original size on resizing the window.

  8. You can now expose the data_list variable as a QML context property, which will be consumed by the QML ListView item in view.qml.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31

    #!/usr/bin/env python
    # -*- conding: utf-8 -*-

    import os, sys, urllib.request, json
    import PySide6.QtQml
    from PySide6.QtQuick import QQuickView
    from PySide6.QtCore import QStringListModel, Qt, QUrl
    from PySide6.QtGui import QGuiApplication

    if __name__ == '__main__':

        #get our data
        url = "http://country.io/names.json"
        response = urllib.request.urlopen(url)
        data = json.loads(response.read().decode('utf-8'))

        #Format and sort the data
        data_list = list(data.values())
        data_list.sort()

        #Set up the application window
        app = QGuiApplication(sys.argv)
        view = QQuickView()
        view.setResizeMode(QQuickView.SizeRootObjectToView)

        #Expose the list to the Qml code
        my_model = QStringListModel()
        my_model.setStringList(data_list)
        view.rootContext().setContextProperty("myModel",my_model)


  9. Load the view.qml to the QQuickView and call show() to display the application window.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40

    #!/usr/bin/env python
    # -*- conding: utf-8 -*-

    import os, sys, urllib.request, json
    import PySide6.QtQml
    from PySide6.QtQuick import QQuickView
    from PySide6.QtCore import QStringListModel, Qt, QUrl
    from PySide6.QtGui import QGuiApplication

    if __name__ == '__main__':

        #get our data
        url = "http://country.io/names.json"
        response = urllib.request.urlopen(url)
        data = json.loads(response.read().decode('utf-8'))

        #Format and sort the data
        data_list = list(data.values())
        data_list.sort()

        #Set up the application window
        app = QGuiApplication(sys.argv)
        view = QQuickView()
        view.setResizeMode(QQuickView.SizeRootObjectToView)

        #Expose the list to the Qml code
        my_model = QStringListModel()
        my_model.setStringList(data_list)
        view.rootContext().setContextProperty("myModel",my_model)

        #Load the QML file
        qml_file = os.path.join(os.path.dirname(__file__),"view.qml")
        view.setSource(QUrl.fromLocalFile(os.path.abspath(qml_file)))

        #Show the window
        if view.status() == QQuickView.Error:
            sys.exit(-1)
        view.show()


  10. Finally, execute the application to start the event loop and clean up.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43

    #!/usr/bin/env python
    # -*- conding: utf-8 -*-

    import os, sys, urllib.request, json
    import PySide6.QtQml
    from PySide6.QtQuick import QQuickView
    from PySide6.QtCore import QStringListModel, Qt, QUrl
    from PySide6.QtGui import QGuiApplication

    if __name__ == '__main__':

        #get our data
        url = "http://country.io/names.json"
        response = urllib.request.urlopen(url)
        data = json.loads(response.read().decode('utf-8'))

        #Format and sort the data
        data_list = list(data.values())
        data_list.sort()

        #Set up the application window
        app = QGuiApplication(sys.argv)
        view = QQuickView()
        view.setResizeMode(QQuickView.SizeRootObjectToView)

        #Expose the list to the Qml code
        my_model = QStringListModel()
        my_model.setStringList(data_list)
        view.rootContext().setContextProperty("myModel",my_model)

        #Load the QML file
        qml_file = os.path.join(os.path.dirname(__file__),"view.qml")
        view.setSource(QUrl.fromLocalFile(os.path.abspath(qml_file)))

        #Show the window
        if view.status() == QQuickView.Error:
            sys.exit(-1)
        view.show()

        #execute and cleanup
        app.exec_()
        del view

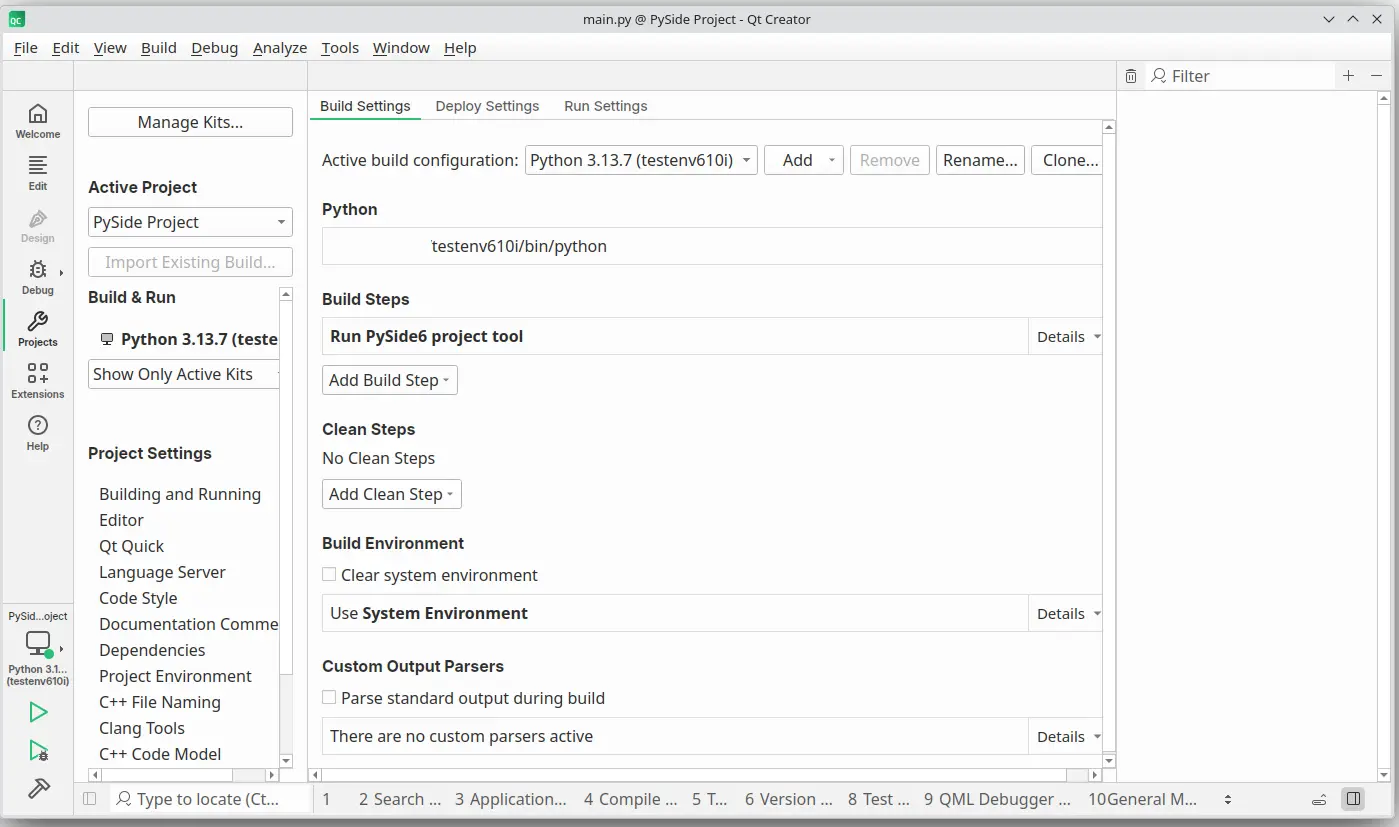

  11. Your application is ready to be run now. Select Projects mode to choose the Python version to run it.

    ../../_images/projectsmode.png

Run the application by using the CTRL+R keyboard shortcut to see if it looks like this:

../../_images/qmlapplication.png

You could also watch the following video tutorial for guidance to develop this application:
