Qt Quick 3D - Ejemplo de la extensión «Stencil Outline»

Muestra cómo se puede utilizar la extensión de renderizado QtQuick3D para implementar el contorno con plantilla.

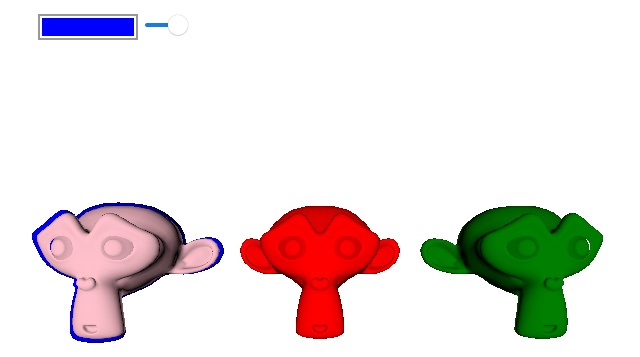

Tres modelos con cabeza de mono en rosa, rojo y verde, con un contorno azul estampado en el modelo rosa

Este ejemplo muestra cómo se pueden utilizar las extensiones de renderizado de « QtQuick3D » para añadir compatibilidad con el contorno de plantilla.

El primer paso consiste en implementar el elemento de front-end creando un nuevo elemento « Render Extension » que exponga las propiedades necesarias para QML. En este ejemplo exponemos tres propiedades: « target », que toma el « model » que queremos perfilar; « material », que queremos utilizar para el contorno; y el valor « scale », para ajustar el tamaño del contorno.

class OutlineRenderExtension : public QQuick3DRenderExtension
{
    Q_OBJECT
    Q_PROPERTY(QQuick3DObject * target READ target WRITE setTarget NOTIFY targetChanged)
    Q_PROPERTY(QQuick3DObject * outlineMaterial READ outlineMaterial WRITE setOutlineMaterial NOTIFY outlineMaterialChanged)
    Q_PROPERTY(float outlineScale READ outlineScale WRITE setOutlineScale NOTIFY outlineScaleChanged)
    QML_ELEMENT

public:
    OutlineRenderExtension() = default;
    ~OutlineRenderExtension() override;

    float outlineScale() const;
    void setOutlineScale(float newOutlineScale);

    QQuick3DObject *target() const;
    void setTarget(QQuick3DObject *newTarget);

    QQuick3DObject *outlineMaterial() const;
    void setOutlineMaterial(QQuick3DObject *newOutlineMaterial);

signals:
    void outlineColorChanged();
    void outlineScaleChanged();
    void targetChanged();
    void outlineMaterialChanged();

protected:
    QSSGRenderGraphObject *updateSpatialNode(QSSGRenderGraphObject *node) override;

private:
    enum Dirty : quint8
    {
        Target = 1 << 0,
        OutlineMaterial = 1 << 1,
        OutlineScale = 1 << 2
    };

    using DirtyT = std::underlying_type_t<Dirty>;

    void markDirty(Dirty v);

    QPointer<QQuick3DObject> m_target;
    QPointer<QQuick3DObject> m_outlineMaterial;
    float m_outlineScale = 1.05f;
    DirtyT m_dirtyFlag {};
};

El segundo paso consiste en implementar la clase de back-end ` Render Extension `, que es la clase que contiene el código que ejecutará ` QtQuick3D`.

Para esta extensión, renderizaremos after el «color-pass» integrado, y querremos hacerlo como parte del «render pass» principal, por lo que devolveremos PostColor y Main en nuestras funciones QSSGRenderExtension::stage() y QSSGRenderExtension::mode(), respectivamente.

class OutlineRenderer : public QSSGRenderExtension
{
public:
    OutlineRenderer() = default;

    bool prepareData(QSSGFrameData &data) override;
    void prepareRender(QSSGFrameData &data) override;
    void render(QSSGFrameData &data) override;
    void resetForFrame() override;
    RenderMode mode() const override { return RenderMode::Main; }
    RenderStage stage() const override { return RenderStage::PostColor; };

    QSSGPrepContextId stencilPrepContext { QSSGPrepContextId::Invalid };
    QSSGPrepContextId outlinePrepContext { QSSGPrepContextId::Invalid };
    QSSGPrepResultId stencilPrepResult { QSSGPrepResultId::Invalid };
    QSSGPrepResultId outlinePrepResult { QSSGPrepResultId::Invalid };
    QPointer<QQuick3DObject> model;
    QSSGNodeId modelId { QSSGNodeId::Invalid };
    QPointer<QQuick3DObject> material;
    QSSGResourceId outlineMaterialId {};
    float outlineScale = 1.05f;

    QSSGRenderablesId stencilRenderables;
    QSSGRenderablesId outlineRenderables;
};

La siguiente función que hay que implementar es QSSGRenderExtension::prepareData(); esta función debe recopilar y configurar los datos que esta extensión utilizará para el renderizado. Si no hay nada que renderizar, esta función debe devolver false.

bool OutlineRenderer::prepareData(QSSGFrameData &data)
{
    // Make sure we have a model and a material.
    if (!model || !material)
        return false;

    modelId = QQuick3DExtensionHelpers::getNodeId(*model);
    if (modelId == QSSGNodeId::Invalid)
        return false;

    outlineMaterialId = QQuick3DExtensionHelpers::getResourceId(*material);
    if (outlineMaterialId == QSSGResourceId::Invalid)
        return false;

    // This is the active camera for the scene (the camera used to render the QtQuick3D scene)
    QSSGCameraId camera = data.activeCamera();
    if (camera == QSSGCameraId::Invalid)
        return false;

    // We are going to render the same renderable(s) twice so we need to create two contexts.
    stencilPrepContext = QSSGRenderHelpers::prepareForRender(data, *this, camera, 0);
    outlinePrepContext = QSSGRenderHelpers::prepareForRender(data, *this, camera, 1);
    // Create the renderables for the target model. One for the original with stencil write, and one for the outline model.
    // Note that we 'Steal' the model here, that tells QtQuick3D that we'll take over the rendering of the model.
    stencilRenderables = QSSGRenderHelpers::createRenderables(data, stencilPrepContext, { modelId }, QSSGRenderHelpers::CreateFlag::Steal);
    outlineRenderables = QSSGRenderHelpers::createRenderables(data, outlinePrepContext, { modelId });

    // Now we can start setting the data for our models.
    // Here we set a material and a scale for the outline
    QSSGModelHelpers::setModelMaterials(data, outlineRenderables, modelId, { outlineMaterialId });
    QMatrix4x4 globalTransform = QSSGModelHelpers::getGlobalTransform(data, modelId);
    globalTransform.scale(outlineScale);
    QSSGModelHelpers::setGlobalTransform(data, outlineRenderables, modelId, globalTransform);

    // When all changes are done, we need to commit the changes.
    stencilPrepResult = QSSGRenderHelpers::commit(data, stencilPrepContext, stencilRenderables);
    outlinePrepResult = QSSGRenderHelpers::commit(data, outlinePrepContext, outlineRenderables);

    // If there's something to be rendered we return true.
    const bool dataReady = (stencilPrepResult != QSSGPrepResultId::Invalid && outlinePrepResult != QSSGPrepResultId::Invalid);

    return dataReady;
}

Si QSSGRenderExtension::prepareData() devuelve true, la siguiente función que se llamará es QSSGRenderExtension::prepareRender(). En esta función, configuraremos pipeline state para nuestros dos elementos renderizables e indicaremos a QtQuick3D que prepare las primitivas, etc., para los elementos renderizables llamando a QSSGRenderHelpers::prepareRenderables().

void OutlineRenderer::prepareRender(QSSGFrameData &data)
{
    Q_ASSERT(modelId != QSSGNodeId::Invalid);
    Q_ASSERT(stencilPrepResult != QSSGPrepResultId::Invalid && outlinePrepResult != QSSGPrepResultId::Invalid);

    const auto &ctx = data.contextInterface();

    if (const auto &rhiCtx = ctx->rhiContext()) {
        const QSSGRhiGraphicsPipelineState basePs = data.getPipelineState();
        QRhiRenderPassDescriptor *rpDesc = rhiCtx->mainRenderPassDescriptor();
        const int samples = rhiCtx->mainPassSampleCount();

        { // Original model - Write to the stencil buffer.
            QSSGRhiGraphicsPipelineState ps = basePs;
            ps.flags |= { QSSGRhiGraphicsPipelineState::Flag::BlendEnabled,
                          QSSGRhiGraphicsPipelineState::Flag::DepthWriteEnabled,
                          QSSGRhiGraphicsPipelineState::Flag::UsesStencilRef,
                          QSSGRhiGraphicsPipelineState::Flag::DepthTestEnabled };
            ps.stencilWriteMask = 0xff;
            ps.stencilRef = 1;
            ps.samples = samples;
            ps.cullMode = QRhiGraphicsPipeline::Back;

            ps.stencilOpFrontState = { QRhiGraphicsPipeline::Keep,
                                       QRhiGraphicsPipeline::Keep,
                                       QRhiGraphicsPipeline::Replace,
                                       QRhiGraphicsPipeline::Always };

            QSSGRenderHelpers::prepareRenderables(data, stencilPrepResult, rpDesc, ps);
        }

        { // Scaled version - Only draw outside the original.
            QSSGRhiGraphicsPipelineState ps = basePs;
            ps.flags |= { QSSGRhiGraphicsPipelineState::Flag::BlendEnabled,
                          QSSGRhiGraphicsPipelineState::Flag::UsesStencilRef,
                          QSSGRhiGraphicsPipelineState::Flag::DepthTestEnabled };
            ps.flags.setFlag(QSSGRhiGraphicsPipelineState::Flag::DepthWriteEnabled, false);
            ps.stencilWriteMask = 0;
            ps.stencilRef = 1;
            ps.cullMode = QRhiGraphicsPipeline::Back;

            ps.stencilOpFrontState = { QRhiGraphicsPipeline::Keep,
                                       QRhiGraphicsPipeline::Keep,
                                       QRhiGraphicsPipeline::Replace,
                                       QRhiGraphicsPipeline::NotEqual };

            QSSGRenderHelpers::prepareRenderables(data, outlinePrepResult, rpDesc, ps);
        }
    }
}

Cuando el motor esté listo para registrar las llamadas de renderizado de nuestra extensión, llamará a la función virtual QSSGRenderExtension::render(). En este ejemplo, basta con llamar a QSSGRenderHelpers::renderRenderables() para los dos modelos; estos se renderizarán exactamente igual que lo habría hecho internamente QtQuick3D, solo que esta vez con nuestra configuración.

void OutlineRenderer::render(QSSGFrameData &data)
{
    Q_ASSERT(stencilPrepResult != QSSGPrepResultId::Invalid);

    const auto &ctx = data.contextInterface();
    if (const auto &rhiCtx = ctx->rhiContext()) {
        QRhiCommandBuffer *cb = rhiCtx->commandBuffer();
        cb->debugMarkBegin(QByteArrayLiteral("Stencil outline pass"));
        QSSGRenderHelpers::renderRenderables(data, stencilPrepResult);
        QSSGRenderHelpers::renderRenderables(data, outlinePrepResult);
        cb->debugMarkEnd();
    }
}

El ` OutlineRenderExtension ` se activa añadiéndolo a la propiedad ` View3D's ` de ` extensions `.

View3D {
    id: view3d
    anchors.topMargin: 100
    anchors.fill: parent
    extensions: [ OutlineRenderExtension {
            id: outlineRenderer
            outlineMaterial: outlineMaterial
        }
    ]

Ahora, cuando se selecciona un « model », solo tenemos que establecer el « model » seleccionado como « target » para el « OutlineRenderExtension » para que se represente con un contorno.

    MouseArea {
        anchors.fill: view3d
        onClicked: (mouse)=> {
              let hit = view3d.pick(mouse.x, mouse.y)
              outlineRenderer.target = hit.objectHit
        }
    }

Proyecto de ejemplo en @code.qt.io
