RectangularGlow QML Type
生成一个模糊并着色的矩形,给人一种信号源正在发光的感觉。更多
Import Statement: | import Qt5Compat.GraphicalEffects |
Since: | QtGraphicalEffects 1.0 |
Inherits: |
属性
- cached : bool
- color : color
- cornerRadius : real
- glowRadius : real
- spread : real
详细说明
该特效具有良好的性能。发光的形状仅限于带有自定义角半径的矩形。如果需要自定义形状,请考虑使用Glow 效果。

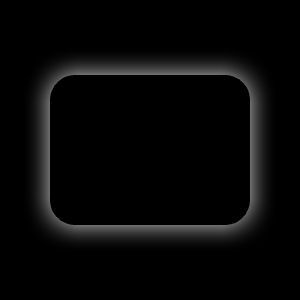

应用的效果 |
---|
示例
下面的示例展示了如何应用该效果。
import QtQuick import Qt5Compat.GraphicalEffects Item { width: 300 height: 300 Rectangle { id: background anchors.fill: parent color: "black" } RectangularGlow { id: effect anchors.fill: rect glowRadius: 10 spread: 0.2 color: "white" cornerRadius: rect.radius + glowRadius } Rectangle { id: rect color: "black" anchors.centerIn: parent width: Math.round(parent.width / 1.5) height: Math.round(parent.height / 2) radius: 25 } }
属性文档
cached : bool |
此属性允许缓存效果输出像素,以提高渲染性能。
每次更改源或效果属性时,都必须更新缓存中的像素。由于需要额外的内存缓冲区来存储效果输出,因此会增加内存消耗。
建议在动画源或特效属性时禁用缓存。
默认情况下,该属性设置为false
。
color : color |
该属性定义了用于辉光的 RGBA 颜色值。
默认情况下,该属性设置为"white"
。

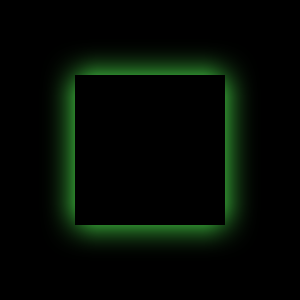

不同颜色值的输出示例 | ||
---|---|---|
color:#ffffff | color:#55ff55 | 颜色#5555ff |
glowRadius: 20 | glowRadius: 20 | glowRadius: 20 |
spread:0 | spread:0 | spread:0 |
cornerRadius: 25 | cornerRadius: 25 | cornerRadius: 25 |
cornerRadius : real |
该属性定义了用于绘制圆角辉光的圆角半径。
该值范围从 0.0 到发光体有效宽度或高度的一半,以较小者为准。该值可通过以下方法计算:min(width, height) / 2.0 + glowRadius
默认情况下,该属性绑定到glowRadius 属性。调整glowRadius 属性时,辉光的表现就像矩形被模糊一样。

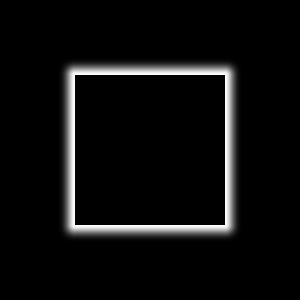

不同角半径值的输出示例 | ||
---|---|---|
cornerRadius: 0 | cornerRadius: 25 | cornerRadius: 50 |
glowRadius: 20 | glowRadius: 20 | glowRadius: 20 |
spread:0 | spread:0 | spread:0 |
color:#ffffff | color:#ffffff | color:#ffffffff |
glowRadius : real |
该属性定义了辉光照射到项目区域外多少像素的范围。
数值范围从 0.0(无光晕)到 inf(无限光晕)。默认情况下,该属性设置为0.0
。

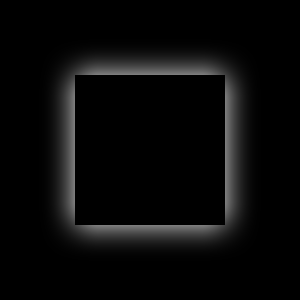

不同 glowRadius 值的输出示例 | ||
---|---|---|
glowRadius: 10 | glowRadius: 20 | glowRadius:40 |
spread:0 | spread:0 | spread:0 |
color:#ffffff | color:#ffffff | color:#ffffff |
cornerRadius: 25 | cornerRadius: 25 | cornerRadius: 25 |
spread : real |
该属性定义了辉光颜色在光源边缘附近的增强程度。
数值范围从 0.0(无强度增加)到 1.0(最大强度增加)。默认情况下,该属性设置为0.0
。

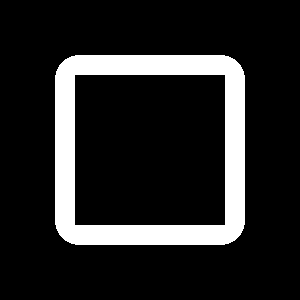

不同扩散值的输出示例 | ||
---|---|---|
传播:0.0 | 传播:0.5 | 传播:1.0 |
glowRadius: 20 | glowRadius: 20 | glowRadius: 20 |
color:#ffffff | color:#ffffff | color:#ffffff |
cornerRadius: 25 | cornerRadius: 25 | cornerRadius: 25 |
