地点 (QML)

地点示例演示了如何搜索地点并访问相关内容。

地点示例演示了如何搜索地点。它特别展示了如何检索评论、图片和相关内容等更多信息。

运行示例

要运行来自 Qt Creator,打开Welcome 模式,然后从Examples 中选择示例。更多信息,请参阅Qt Creator: 教程:构建和运行

该示例可与任何可用的地理服务插件配合使用。不过,某些插件可能需要额外的plugin parameters 才能正常运行。Plugin parameters 可以使用--plugin 参数在命令行中传递,其形式为

--plugin.<parameter name> <parameter value>

有关每个地理服务插件支持哪些插件参数的详细信息,请参阅每个插件的文档。本示例使用的默认插件是Qt Location Open Street Map Plugin,它不需要任何参数。

概述

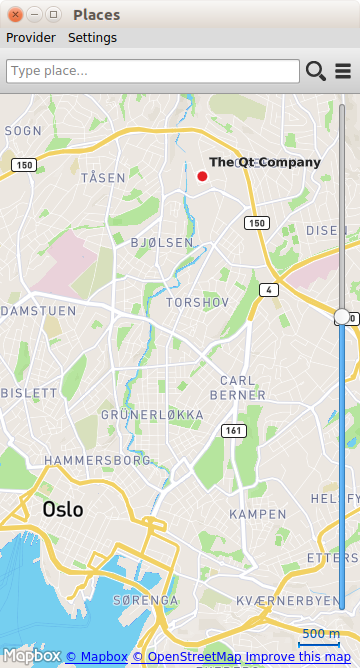

Places 示例展示了一个显示地图的应用程序窗口。窗口顶部有一个搜索框,用于输入地点搜索查询。要搜索地点,请在文本框中输入搜索词,然后点击放大镜图标。要按类别搜索地点,请单击类别图标以显示可用类别列表,然后选择所需的类别。地点搜索查询将搜索地图上显示的当前位置附近的地点。

对于某些插件,当输入三个或三个以上字符时,搜索框会提供搜索词建议。选择其中一个建议将导致使用所选搜索文本执行地点搜索。

点击搜索结果将显示该地点的详细信息。如果一个地方有丰富的内容(社论、评论和图片),可以通过详细信息页面上的按钮访问这些内容。要查找类似地点,请点击 "查找类似 "按钮。

地理服务提供商可以通过访问 "提供商 "菜单进行更改。

显示类别

在按类别进行搜索之前,需要检索可用类别列表。这可以通过创建CategoryModel 来实现。

CategoryModel {
    id: categoryModel
    hierarchical: true
}

CategoryModel 类型提供了可用类别的模型。它可以提供平面列表或分层树模型。在本示例中,我们将hierarchical 属性设置为true,从而使用层次树模型。plugin 属性在示例初始化时设置。

接下来,我们创建一个ListView 来显示类别模型。

ListView {
    id: root
    property var categoryModel
    property var rootIndex

    signal searchCategory(var category)
    signal showSubcategories(var index)

    snapMode: ListView.SnapToItem

    model: DelegateModel {
        id: delegeteDataModel
        model: root.categoryModel
        rootIndex: root.rootIndex
        delegate: CategoryDelegate {
            width: ListView.view.width
            onSearchCategory: root.searchCategory(category);
            onShowSubcategories: root.showSubcategories(delegeteDataModel.modelIndex(index));
        }
    }
}

由于使用的是分层模型,因此需要一个DelegateModel 来提供导航功能。如果使用的是平面列表模型,则视图可以直接使用CategoryModel

rootIndex属性设置了DelegateModel 的根索引。类别由CategoryDelegate 显示,它提供了两个信号。onShowSubcategories会发出showSubcategories()信号,根索引为当前索引,从而显示所选类别的子类别。onSearchCategory处理程序会发出带有类别参数的searchCategory()信号,表明选择了哪个特定类别。

当点击Label 时,CategoryDelegate 会显示类别名称并发出searchCategory()信号:

Label {
    id: labelItem
    text: category.name
    anchors.left: icon.right
    anchors.right: parent.right
    anchors.verticalCenter: parent.verticalCenter
}

TapHandler {
    id: tapHanlder
    onTapped: {
        if (model.hasModelChildren) {
            root.showSubcategories()
        } else {
            root.searchCategory()
        }
    }
}

显示搜索建议

PlaceSearchSuggestionModel 类型用于根据部分输入的搜索词获取建议搜索词。

只要输入的搜索词发生变化,就会触发新的建议搜索。

SearchBar {
    id: searchBar
    onSearchTextChanged: function (searchText) {
        if (searchText.length >= 3 && suggestionModel != null) {
            suggestionModel.searchTerm = searchText;
            suggestionModel.update();
        }
    }
}

只有当搜索词长度为三个或三个以上字符时,才会查询建议。

PlaceSearchSuggestionModel 的状态发生变化时,就会显示搜索建议。

PlaceSearchSuggestionModel {
    id: suggestionModel
    searchArea: searchRegion

    onStatusChanged: {
        if (status == PlaceSearchSuggestionModel.Ready)
            stackView.showSuggestions()
    }
}

SuggestionsShown "状态下的主要对象是显示搜索建议的ListView

ListView {
    id: suggestionView
    property var suggestionModel
    signal suggestionSelected(string text)

    model: suggestionModel
    delegate: Item {
        width: ListView.view.width
        height: label.height * 1.5
        Label {
            id: label
            text: suggestion
        }
        MouseArea {
            anchors.fill: parent
            onClicked: suggestionSelected(suggestion)
        }
    }
}

Label 对象被用作显示建议文本的委托。点击建议搜索词会更新搜索词,并使用搜索建议触发位置搜索。

搜索地点

PlaceSearchModel 类型用于搜索地点。

PlaceSearchModel {
    id: placeSearchModel
    searchArea: searchRegion

    function searchForCategory(category) {
        searchTerm = "";
        categories = category;
        recommendationId = "";
        searchArea = searchRegion
        limit = -1;
        update();
    }

    function searchForText(text) {
        searchTerm = text;
        categories = null;
        recommendationId = "";
        searchArea = searchRegion
        limit = -1;
        update();
    }

    function searchForRecommendations(placeId) {
        searchTerm = "";
        categories = null;
        recommendationId = placeId;
        searchArea = null;
        limit = -1;
        update();
    }

    onStatusChanged: {
        switch (status) {
        case PlaceSearchModel.Ready:
            if (count > 0)
                stackView.showPlaces()
            else
                stackView.showMessage(qsTr("Search Place Error"),qsTr("Place not found !"))
            break;
        case PlaceSearchModel.Error:
            stackView.showMessage(qsTr("Search Place Error"),errorString())
            break;
        }
    }
}

首先要设置模型的一些属性,这些属性将用于形成搜索请求。searchArea 属性被设置为searchRegion对象,该对象是一个geocircle ,其中心与Map 上显示的当前位置相关联。

最后,我们定义了三个辅助函数searchForCategory()searchForText()searchForRecommendations(),分别设置categoriessearchTermrecommendationId 属性,并调用update() 方法开始地点搜索。搜索结果显示在ListView 中。

ListView {
    id: searchView

    property var placeSearchModel
    signal showPlaceDetails(var place, var distance)
    signal showMap()

    model: placeSearchModel
    delegate: SearchResultDelegate {
        width: ListView.view.width
        onShowPlaceDetails: function (place, distance) { searchView.showPlaceDetails(place, distance) }
        onSearchFor: function (query) { placeSearchModel.searchForText(query) }
    }

    footer: RowLayout {
        width: parent.width

        Button {
            text: qsTr("Previous")
            enabled: placeSearchModel.previousPagesAvailable
            onClicked: placeSearchModel.previousPage()
            Layout.alignment: Qt.AlignHCenter
        }

        Button {
            text: qsTr("Clear")
            onClicked: {
                placeSearchModel.reset()
                showMap()
            }
            Layout.alignment: Qt.AlignHCenter
        }

        Button {
            text: qsTr("Next")
            enabled: placeSearchModel.nextPagesAvailable
            onClicked: placeSearchModel.nextPage()
            Layout.alignment: Qt.AlignHCenter
        }
    }
}

ListView 中使用的委托,即SearchResultDelegate,旨在通过Loader 对象处理多种搜索结果类型。对于PlaceResult类型的结果,该委托是:

Component {
    id: placeComponent
    Item {
        id: placeRoot
        width: root.width
        height: Math.max(icon.height, 3 * placeName.height)

        Rectangle {
            anchors.fill: parent
            color: "#44ffffff"
            visible: mouse.pressed
        }

        Rectangle {
            anchors.fill: parent
            color: "#dbffde"
            visible: model.sponsored !== undefined ? model.sponsored : false

            Label {
                text: qsTr("Sponsored result")
                horizontalAlignment: Text.AlignRight
                anchors.right: parent.right
                anchors.bottom: parent.bottom
                font.pixelSize: 8
                visible: model.sponsored !== undefined ? model.sponsored : false
            }
        }

        GridLayout {
            rows: 2
            columns: 2
            anchors.fill: parent
            anchors.leftMargin: 30
            flow: GridLayout.TopToBottom

            Image {
                // anchors.verticalCenter: parent.verticalCenter
                id:icon
                source: place.favorite ? Qt.resolvedUrl("../resources/star.png") : place.icon.url()
                Layout.rowSpan: 2
            }

            Label {
                id: placeName
                text: place.favorite ? place.favorite.name : place.name
                Layout.fillWidth: true
            }

            Label {
                id: distanceText
                font.italic: true
                text: Helper.formatDistance(distance)
                Layout.fillWidth: true
            }
        }

        Rectangle {
            anchors.left: parent.left
            anchors.right: parent.right
            anchors.margins: 15
            height: 1
            color: "#46a2da"
        }

        MouseArea {
            id: mouse
            anchors.fill: parent
            onClicked: {
                if (model.type === undefined || type === PlaceSearchModel.PlaceResult) {
                    if (!place.detailsFetched)
                        place.getDetails();
                    root.showPlaceDetails(model.place, model.distance);
                }
            }
        }
    }
}

显示地点内容

地点可以有额外的丰富内容,包括社论、评论和图片。丰富的内容可通过一组模型访问。应用程序开发人员一般不会直接创建内容模型,而是从Place 类型的editorialModelreviewModelimageModel 属性中获取模型。

ListView {
    id:view
    property Place place
    signal showEditorial(var editorial)
    model: place.editorialModel
    delegate: EditorialDelegate {
        width: ListView.view.width
        onShowEditorial: view.showEditorial(model)
    }
}

示例项目 @ code.qt.io
