Qt Quick 3D - 图层示例
演示了在QtQuick3D 中使用图层的方法。

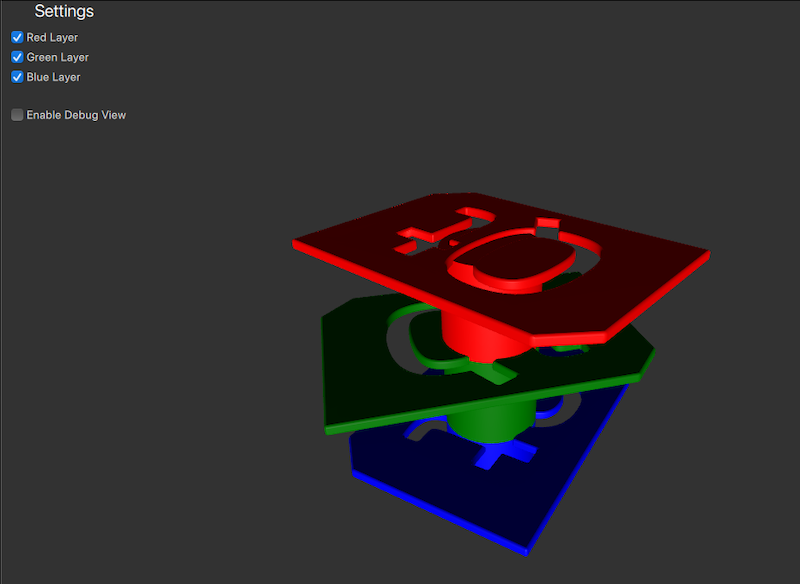

在此示例中，不同颜色的徽标模型被放置在不同的图层中。用户可以通过在设置面板中勾选或取消勾选复选框来控制每个图层的可见性。
准备场景图层
图层
为方便起见，我们将Layer 枚举类型别名设置为更易于识别的名称。
readonly property int redModels: ContentLayer.Layer1
readonly property int greenModels: ContentLayer.Layer2
readonly property int blueModels: ContentLayer.Layer3摄像机
由于我们希望根据图层过滤摄像机视图，因此需要设置摄像机应渲染的图层。具体操作是将摄像机的layers 属性设置为一个或多个图层。这样，摄像机将仅渲染位于指定layers 中的对象。默认情况下，摄像机将渲染所有layers 中的节点。
为了能够选择活动图层，我们创建一个cameraFilter 属性，并将其绑定到摄像机的layers 属性上。
property int cameraFilter: ContentLayer.LayerAll
camera: PerspectiveCamera {
layers: v3d.cameraFilter
position: Qt.vector3d(0, 400, 500)
eulerRotation.x: -30
clipFar: 2000
}当设置面板中的复选框被选中或取消选中时，cameraFilter 属性将相应更新，以包含或排除相应的图层。这样，摄像机将仅渲染位于cameraFilter 中指定图层中的对象。
CheckBox {
id: checkBoxRedLayer
text: qsTr("Red Layer")
checked: true
onCheckedChanged: {
v3d.cameraFilter = checked ? v3d.cameraFilter | v3d.redModels : v3d.cameraFilter & ~v3d.redModels;
}
}模型
现在需要将这三个不同颜色的模型分配到相应的图层中。与相机设置类似，我们可以使用模型的layers 属性将其分配到图层。红色徽标模型分配到redLayer 图层，绿色徽标模型分配到greenLayer 图层，蓝色徽标模型分配到blueLayer 图层。
Node {
position: Qt.vector3d(0, 200, 0)
Model {
source: "qtlogo.mesh"
layers: v3d.redModels
scale: Qt.vector3d(5000, 5000, 5000)
materials:[ PrincipledMaterial {
baseColor: "red"
roughness: 0.5
} ]
NumberAnimation on eulerRotation.y {
from: 0
to: 360
duration: 15000
loops: Animation.Infinite
}
}
Model {
position: Qt.vector3d(0, -50, 0)
source: "#Cylinder"
materials:[ PrincipledMaterial {
baseColor: "red"
roughness: 0.5
} ]
}
ParticleSystem3D {
visible: particlesCheckbox.checked
running: particlesCheckbox.checked
layers: v3d.redModels
SpriteParticle3D {
id: redParticle
color: "red"
maxAmount: 200
particleScale: 8
fadeInDuration: 500
fadeOutDuration: 500
}
ParticleEmitter3D {
particle: redParticle
position: Qt.vector3d(0, -50, 0)
emitRate: 40
lifeSpan: 2000
velocity: VectorDirection3D {
direction: Qt.vector3d(0, 120, 0)
directionVariation: Qt.vector3d(40, 40, 40)
}
}
}
}
Node {
position: Qt.vector3d(0, 100, 0)
Model {
source: "qtlogo.mesh"
layers: v3d.greenModels
scale: Qt.vector3d(5000, 5000, 5000)
materials:[ PrincipledMaterial {
baseColor: "green"
roughness: 0.5
} ]
NumberAnimation on eulerRotation.y {
from: 0
to: 360
duration: 20000
loops: Animation.Infinite
}
}
Model {
position: Qt.vector3d(0, -50, 0)
source: "#Cylinder"
materials:[ PrincipledMaterial {
baseColor: "green"
roughness: 0.5
} ]
}
ParticleSystem3D {
visible: particlesCheckbox.checked
running: particlesCheckbox.checked
layers: v3d.greenModels
SpriteParticle3D {
id: greenParticle
color: "green"
maxAmount: 200
particleScale: 8
fadeInDuration: 500
fadeOutDuration: 500
}
ParticleEmitter3D {
particle: greenParticle
position: Qt.vector3d(0, -50, 0)
emitRate: 40
lifeSpan: 2000
velocity: VectorDirection3D {
direction: Qt.vector3d(0, 120, 0)
directionVariation: Qt.vector3d(40, 40, 40)
}
}
}
}
Node {
Model {
source: "qtlogo.mesh"
layers: v3d.blueModels
scale: Qt.vector3d(5000, 5000, 5000)
materials:[ PrincipledMaterial {
baseColor: "blue"
roughness: 0.5
} ]
NumberAnimation on eulerRotation.y {
from: 0
to: 360
duration: 12500
loops: Animation.Infinite
}
}
Model {
position: Qt.vector3d(0, -50, 0)
source: "#Cylinder"
materials:[ PrincipledMaterial {
baseColor: "blue"
roughness: 0.5
} ]
}
ParticleSystem3D {
visible: particlesCheckbox.checked
running: particlesCheckbox.checked
layers: v3d.blueModels
SpriteParticle3D {
id: blueParticle
color: "blue"
maxAmount: 200
particleScale: 8
fadeInDuration: 500
fadeOutDuration: 500
}
ParticleEmitter3D {
particle: blueParticle
position: Qt.vector3d(0, -50, 0)
emitRate: 40
lifeSpan: 2000
velocity: VectorDirection3D {
direction: Qt.vector3d(0, 120, 0)
directionVariation: Qt.vector3d(40, 40, 40)
}
}
}
}设置好图层后，渲染器现在只会渲染位于cameraFilter 所指定图层中的模型。用户可以通过在设置面板中勾选或取消勾选复选框来切换各图层的可见性。
