8.2.1. Azure Devops Integration¶

8.2.1.1. Background¶

You have a running Axivion Suite configuration.
Additionally, you want to integrate Axivion violations into Azure Devops.

8.2.1.2. What needs to be done?¶

Install the Axivion Azure Devops Plugin.

Read the marketplace readme file for configuration options, task definitions and examples.

A minimal pipeline definition using the Axivion plugin could look like this:

trigger:
- main

pr:
- main

pool:
name: default
vmImage: ubuntu-latest

steps:
- script: ./axivion/start_analysis.sh
  displayName: 'Execute Axivion CI mode analysis with JSONReport'

- task: PublishBuildArtifacts@1
  name: AxivionJsonResults
  inputs:
    pathtoPublish: '$(Pipeline.Workspace)/s/results.json' # Path to the Axivion JSON Report
    artifactName: AxivionJsonResults

- task: Axivion-CommentPullRequest@0

8.2.1.3. User Interface contributions¶

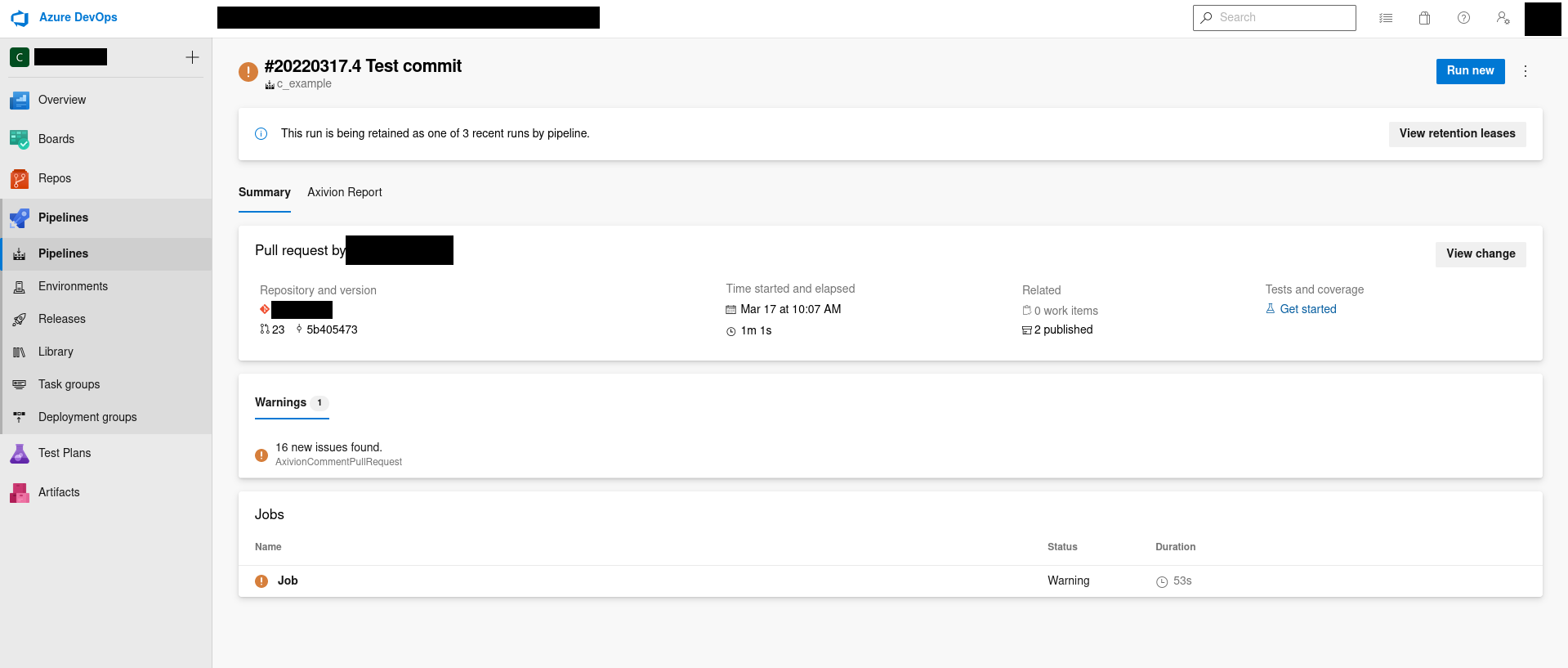

Report Tab in Job Summary — Job Summary with new Axivion violations¶

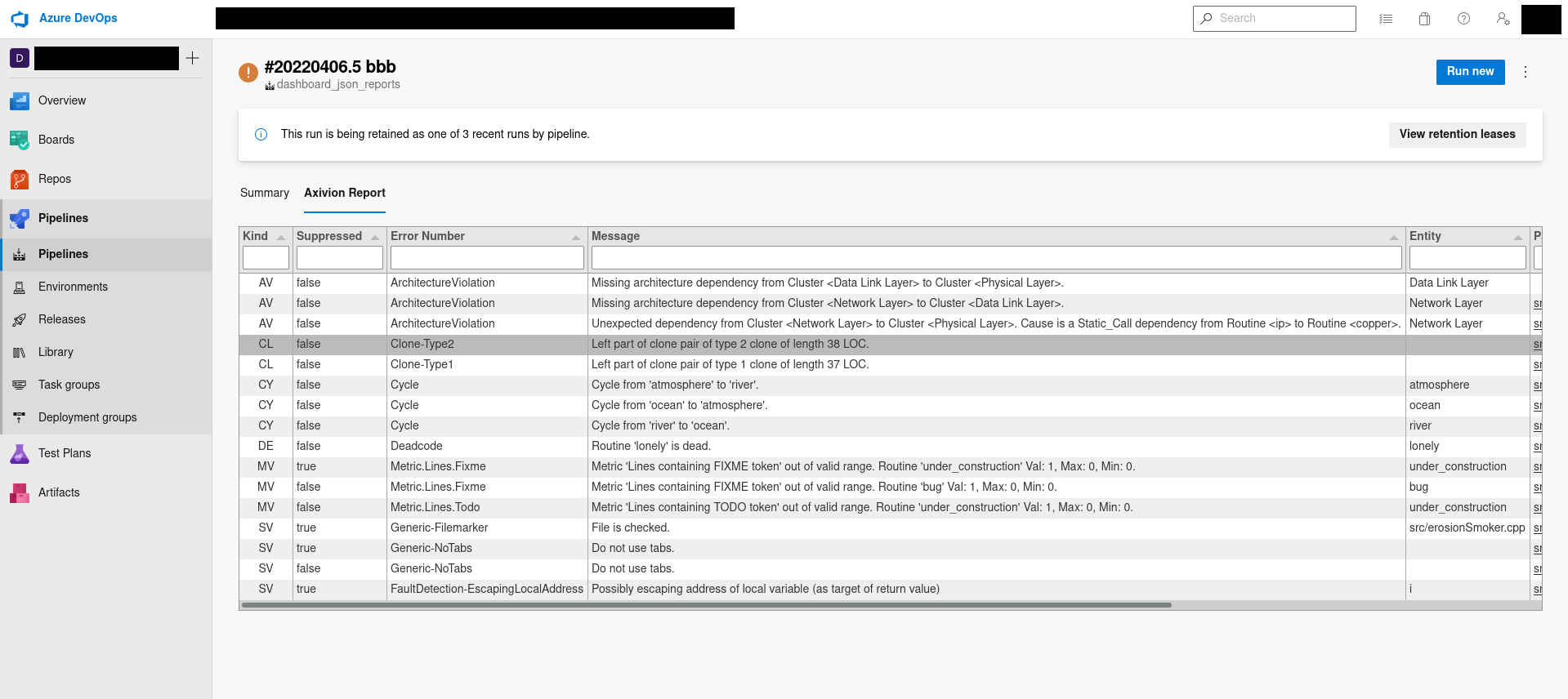

Report Tab in Job Summary — Axivion Report Tab in the Job Summary¶

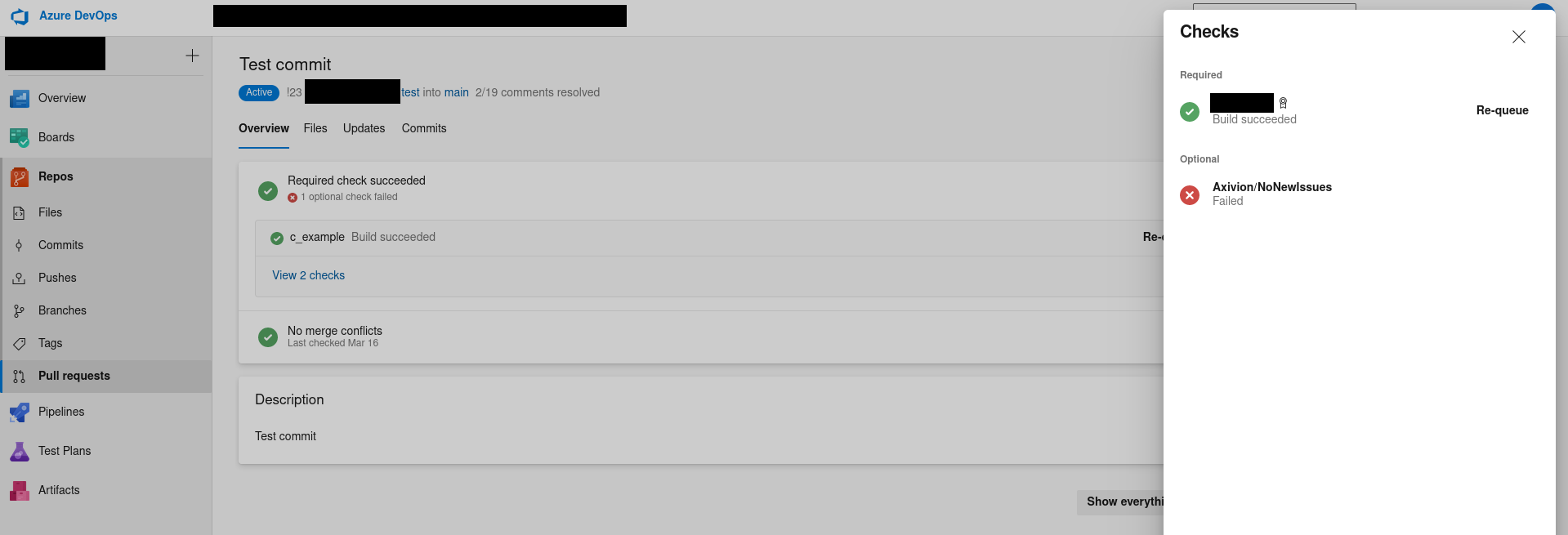

Pull Requests Status Check — A status check which fails on new issues¶

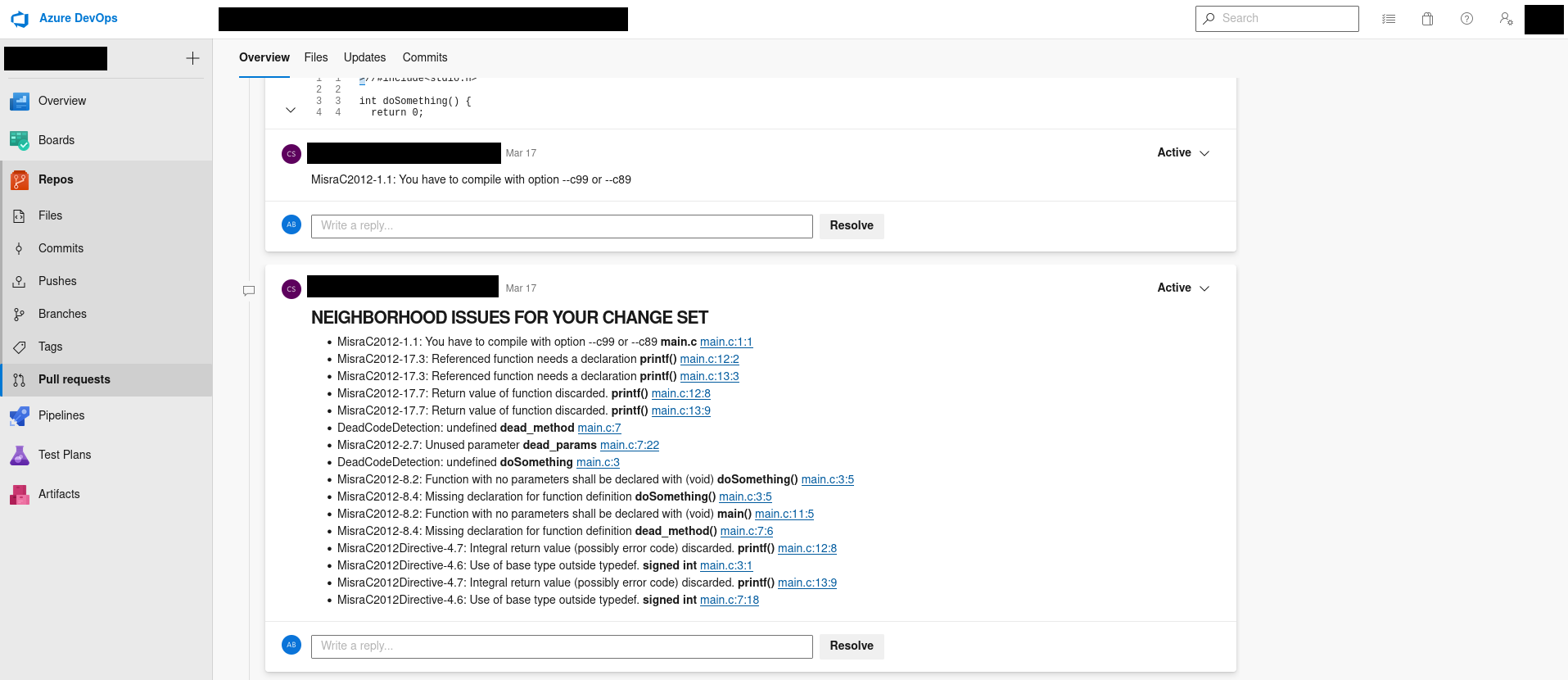

Pull Requests annotated — A pull request annotated with violations from Axivion¶
