HorizontalBarSeries QML Type

以按类别分组的水平条形图形式展示一系列数据。更多...

Import Statement:	`import QtCharts 2.12`
In C++:	QHorizontalBarSeries
Inherits:	AbstractBarSeries
Status:	Deprecated

此类型已弃用。我们强烈建议在新代码中不要使用它。

所有成员的列表，包括继承的成员

详细说明

数据以按类别分组的水平条形系列形式绘制，来自每个条形集的每个类别都会向该系列添加一个条形。

以下 QML 代码片段演示了如何创建一个简单的水平条形图：

ChartView {
    title: "Horizontal Bar Chart"
    anchors.fill: parent
    legend.alignment: Qt.AlignBottom
    antialiasing: true

    HorizontalBarSeries {
        axisY: BarCategoryAxis { categories: ["2007", "2008", "2009", "2010", "2011", "2012" ] }
        BarSet { label: "Bob"; values: [2, 2, 3, 4, 5, 6] }
        BarSet { label: "Susan"; values: [5, 1, 2, 4, 1, 7] }
        BarSet { label: "James"; values: [3, 5, 8, 13, 5, 8] }
    }
}

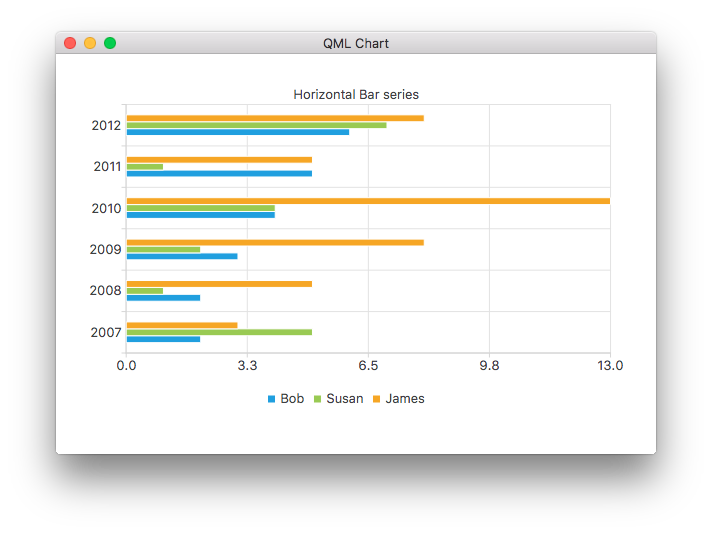

横向条形图，按年分组显示了鲍勃、苏珊和詹姆斯从2007年到2012年的数据
