PySide6.QtWidgets.QAbstractItemDelegate

class QAbstractItemDelegate

The QAbstractItemDelegate class is used to display and edit data items from a model. More…

Inherited by: QStyledItemDelegate, QItemDelegate

Synopsis

Methods

• def __init__()

Virtual methods

• def createEditor()

• def destroyEditor()

• def editorEvent()

• def helpEvent()

• def paint()

• def paintingRoles()

• def setEditorData()

• def setModelData()

• def sizeHint()

• def updateEditorGeometry()

Signals

• def closeEditor()

• def commitData()

• def sizeHintChanged()

Note

This documentation may contain snippets that were automatically translated from C++ to Python. We always welcome contributions to the snippet translation. If you see an issue with the translation, you can also let us know by creating a ticket on https:/bugreports.qt.io/projects/PYSIDE

Detailed Description

Warning

This section contains snippets that were automatically translated from C++ to Python and may contain errors.

A QAbstractItemDelegate provides the interface and common functionality for delegates in the model/view architecture. Delegates display individual items in views, and handle the editing of model data.

The QAbstractItemDelegate class is one of the Model/View Classes and is part of Qt’s model/view framework .

To render an item in a custom way, you must implement paint() and sizeHint() . The QStyledItemDelegate class provides default implementations for these functions; if you do not need custom rendering, subclass that class instead.

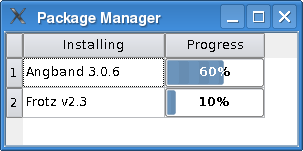

We give an example of drawing a progress bar in items; in our case for a package management program.

We create the WidgetDelegate class, which inherits from QStyledItemDelegate . We do the drawing in the paint() function:

def paint(self, painter, option,):
                           QModelIndex index)

    if index.column() == 1:
        progress = index.data().toInt()
        progressBarOption = QStyleOptionProgressBar()
        progressBarOption.rect = option.rect
        progressBarOption.minimum = 0
        progressBarOption.maximum = 100
        progressBarOption.progress = progress
        progressBarOption.text = QString.number(progress) + "%"
        progressBarOption.textVisible = True
        QApplication.style().drawControl(QStyle.CE_ProgressBar,
                                           progressBarOption, painter)
    else:
        QStyledItemDelegate.paint(painter, option, index)

Notice that we use a QStyleOptionProgressBar and initialize its members. We can then use the current QStyle to draw it.

To provide custom editing, there are two approaches that can be used. The first approach is to create an editor widget and display it directly on top of the item. To do this you must reimplement createEditor() to provide an editor widget, setEditorData() to populate the editor with the data from the model, and setModelData() so that the delegate can update the model with data from the editor.

The second approach is to handle user events directly by reimplementing editorEvent() .

See also

Model/View Programming QStyledItemDelegate QStyle

class EndEditHint

This enum describes the different hints that the delegate can give to the model and view components to make editing data in a model a comfortable experience for the user.

Constant	Description
QAbstractItemDelegate.NoHint	There is no recommended action to be performed.

These hints let the delegate influence the behavior of the view:

Constant	Description
QAbstractItemDelegate.EditNextItem	The view should use the delegate to open an editor on the next item in the view.
QAbstractItemDelegate.EditPreviousItem	The view should use the delegate to open an editor on the previous item in the view.

Note that custom views may interpret the concepts of next and previous differently.

The following hints are most useful when models are used that cache data, such as those that manipulate data locally in order to increase performance or conserve network bandwidth.

Constant	Description
QAbstractItemDelegate.SubmitModelCache	If the model caches data, it should write out cached data to the underlying data store.
QAbstractItemDelegate.RevertModelCache	If the model caches data, it should discard cached data and replace it with data from the underlying data store.

Although models and views should respond to these hints in appropriate ways, custom components may ignore any or all of them if they are not relevant.

__init__([parent=None])

Parameters:

parent – QObject

Creates a new abstract item delegate with the given parent.

closeEditor(editor[, hint=QAbstractItemDelegate.EndEditHint.NoHint])

Parameters:

• editor – QWidget

• hint – EndEditHint

This signal is emitted when the user has finished editing an item using the specified editor.

The hint provides a way for the delegate to influence how the model and view behave after editing is completed. It indicates to these components what action should be performed next to provide a comfortable editing experience for the user. For example, if EditNextItem is specified, the view should use a delegate to open an editor on the next item in the model.

See also

EndEditHint

commitData(editor)

Parameters:

editor – QWidget

This signal must be emitted when the editor widget has completed editing the data, and wants to write it back into the model.

createEditor(parent, option, index)

Parameters:

• parent – QWidget

• option – QStyleOptionViewItem

• index – QModelIndex

Return type:

QWidget

Returns the editor to be used for editing the data item with the given index. Note that the index contains information about the model being used. The editor’s parent widget is specified by parent, and the item options by option.

The base implementation returns None. If you want custom editing you will need to reimplement this function.

The returned editor widget should have Qt::StrongFocus; otherwise, QMouseEvents received by the widget will propagate to the view. The view’s background will shine through unless the editor paints its own background (e.g., with setAutoFillBackground() ).

See also

destroyEditor() setModelData() setEditorData()

destroyEditor(editor, index)

Parameters:

• editor – QWidget

• index – QModelIndex

Called when the editor is no longer needed for editing the data item with the given index and should be destroyed. The default behavior is a call to deleteLater on the editor. It is possible e.g. to avoid this delete by reimplementing this function.

See also

createEditor()

editorEvent(event, model, option, index)

Parameters:

• event – QEvent

• model – QAbstractItemModel

• option – QStyleOptionViewItem

• index – QModelIndex

Return type:

bool

When editing of an item starts, this function is called with the event that triggered the editing, the model, the index of the item, and the option used for rendering the item.

Mouse events are sent to editorEvent() even if they don’t start editing of the item. This can, for instance, be useful if you wish to open a context menu when the right mouse button is pressed on an item.

The base implementation returns false (indicating that it has not handled the event).

helpEvent(event, view, option, index)

Parameters:

• event – QHelpEvent

• view – QAbstractItemView

• option – QStyleOptionViewItem

• index – QModelIndex

Return type:

bool

Whenever a help event occurs, this function is called with the event view option and the index that corresponds to the item where the event occurs.

Returns true if the delegate can handle the event; otherwise returns false. A return value of true indicates that the data obtained using the index had the required role.

For QEvent::ToolTip and QEvent::WhatsThis events that were handled successfully, the relevant popup may be shown depending on the user’s system configuration.

See also

QHelpEvent

abstract paint(painter, option, index)

Parameters:

• painter – QPainter

• option – QStyleOptionViewItem

• index – QModelIndex

This pure abstract function must be reimplemented if you want to provide custom rendering. Use the painter and style option to render the item specified by the item index.

If you reimplement this you must also reimplement sizeHint() .

paintingRoles()

Return type:

.list of int

setEditorData(editor, index)

Parameters:

• editor – QWidget

• index – QModelIndex

Sets the contents of the given editor to the data for the item at the given index. Note that the index contains information about the model being used.

The base implementation does nothing. If you want custom editing you will need to reimplement this function.

See also

setModelData()

setModelData(editor, model, index)

Parameters:

• editor – QWidget

• model – QAbstractItemModel

• index – QModelIndex

Sets the data for the item at the given index in the model to the contents of the given editor.

The base implementation does nothing. If you want custom editing you will need to reimplement this function.

See also

setEditorData()

abstract sizeHint(option, index)

Parameters:

• option – QStyleOptionViewItem

• index – QModelIndex

Return type:

QSize

This pure abstract function must be reimplemented if you want to provide custom rendering. The options are specified by option and the model item by index.

If you reimplement this you must also reimplement paint() .

sizeHintChanged(index)

Parameters:

index – QModelIndex

This signal must be emitted when the sizeHint() of index changed.

Views automatically connect to this signal and relayout items as necessary.

updateEditorGeometry(editor, option, index)

Parameters:

• editor – QWidget

• option – QStyleOptionViewItem

• index – QModelIndex

Updates the geometry of the editor for the item with the given index, according to the rectangle specified in the option. If the item has an internal layout, the editor will be laid out accordingly. Note that the index contains information about the model being used.

The base implementation does nothing. If you want custom editing you must reimplement this function.
