QML 教程 3 - 状态和转换

在本章中，我们将通过引入状态和转换，使这个示例更有活力。

我们想让文字移动到屏幕底部，旋转并在点击时变成红色。

下面是 QML 代码：

import QtQuick

Rectangle {
    id: page
    width: 320; height: 480
    color: "lightgray"

    Text {
        id: helloText
        text: "Hello world!"
        y: 30
        anchors.horizontalCenter: page.horizontalCenter
        font.pointSize: 24; font.bold: true

        MouseArea { id: mouseArea; anchors.fill: parent }

        states: State {
            name: "down"; when: mouseArea.pressed == true
            PropertyChanges {
                helloText {
                    y: 160
                    rotation: 180
                    color: "red"
                }
            }
        }

        transitions: Transition {
            from: ""; to: "down"; reversible: true
            ParallelAnimation {
                NumberAnimation { properties: "y,rotation"; duration: 500; easing.type: Easing.InOutQuad }
                ColorAnimation { duration: 500 }
            }
        }
    }

    Grid {
        id: colorPicker
        x: 4; anchors.bottom: page.bottom; anchors.bottomMargin: 4
        rows: 2; columns: 3; spacing: 3

        Cell { cellColor: "red"; onClicked: helloText.color = cellColor }
        Cell { cellColor: "green"; onClicked: helloText.color = cellColor }
        Cell { cellColor: "blue"; onClicked: helloText.color = cellColor }
        Cell { cellColor: "yellow"; onClicked: helloText.color = cellColor }
        Cell { cellColor: "steelblue"; onClicked: helloText.color = cellColor }
        Cell { cellColor: "black"; onClicked: helloText.color = cellColor }
    }
}

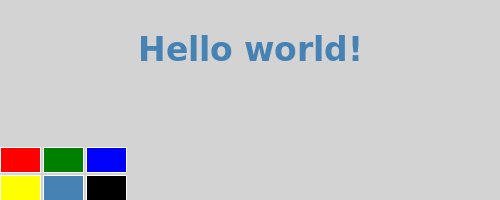

演示

        states: State {
            name: "down"; when: mouseArea.pressed == true
            PropertyChanges {
                helloText {
                    y: 160
                    rotation: 180
                    color: "red"
                }
            }
        }

首先，我们为文本类型创建一个新的向下状态。当按下MouseArea 时，该状态将被激活，而当松开时，该状态将被停用。

下降状态包括一组隐式默认状态（QML 中最初定义的项目）的属性更改。具体来说，我们将文本的y 属性设置为160 ，将旋转设置为180 ，将color 设置为红色。

        transitions: Transition {
            from: ""; to: "down"; reversible: true
            ParallelAnimation {
                NumberAnimation { properties: "y,rotation"; duration: 500; easing.type: Easing.InOutQuad }
                ColorAnimation { duration: 500 }
            }
        }

由于我们不希望文本立即出现在底部，而是要平滑移动，因此我们在两个状态之间添加了一个过渡。

from 和定义了过渡运行的状态。在本例中，我们希望从默认状态过渡到to 向下状态。

因为我们希望从停机状态返回默认状态时，同样的转换以相反的方式运行，所以我们将reversible 设置为true 。这相当于分别编写了两个转换。

ParallelAnimation 类型可确保两种类型的动画（数字和颜色）同时启动。我们也可以使用SequentialAnimation 来代替一个接一个地运行它们。

有关状态和转换的更多详情，请参阅Qt Quick States和states and transitions示例。
