WebEngine 快速纳米浏览器
使用WebEngineView QML 类型实现的网络浏览器。

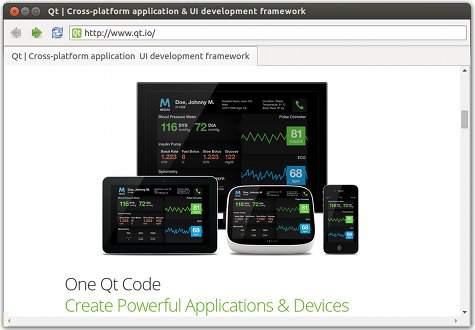

Quick Nano Browser演示了如何使用 QML 来开发一个小型网络浏览器应用程序。 Qt WebEngine QML types来开发一个小型网络浏览器应用程序，它由一个带有标题栏、工具栏、标签视图和状态栏的浏览器窗口组成。网络内容在标签视图中的网络引擎视图中加载。如果出现证书错误，系统会在消息对话框中提示用户采取相应措施。状态栏会弹出，显示悬停链接的 URL。
网页可请求以全屏模式显示。用户可以使用工具栏按钮允许全屏模式。用户可以使用键盘快捷键离开全屏模式。其他工具栏按钮还可以在浏览器历史记录中前后移动、重新加载标签页内容，以及打开设置菜单以启用以下功能：JavaScript、插件、全屏模式、关闭记录、HTTP 磁盘缓存、自动加载图像和忽略证书错误。
运行示例
要从 Qt Creator，打开Welcome 模式，并从Examples 中选择示例。更多信息，请参阅Qt Creator: 教程：构建并运行。
创建浏览器主窗口
浏览器主窗口加载后，会使用默认配置文件创建一个空标签页。每个标签页都是填充主窗口的网络引擎视图。
我们在BrowserWindow.qml文件中使用ApplicationWindow 类型创建主窗口：
ApplicationWindow { id: browserWindow property QtObject applicationRoot property Item currentWebView: tabBar.currentIndex < tabBar.count ? tabLayout.children[tabBar.currentIndex] : null ... width: 1300 height: 900 visible: true title: currentWebView && currentWebView.title
我们使用TabBar Qt Quick 控件创建一个锚定到窗口顶部的标签栏，并创建一个新的空标签页：
TabBar { id: tabBar anchors.top: parent.top anchors.left: parent.left anchors.right: parent.right Component.onCompleted: createTab(defaultProfilePrototype.instance()) function createTab(profile, focusOnNewTab = true, url = undefined) { var webview = tabComponent.createObject(tabLayout, {profile: profile}); var newTabButton = tabButtonComponent.createObject(tabBar, {tabTitle: Qt.binding(function () { return webview.title; })}); tabBar.addItem(newTabButton); if (focusOnNewTab) { tabBar.setCurrentIndex(tabBar.count - 1); }
该标签页包含一个加载网页内容的网络引擎视图：
Component { id: tabComponent WebEngineView { id: webEngineView focus: true onLinkHovered: function(hoveredUrl) { if (hoveredUrl == "") hideStatusText.start(); else { statusText.text = hoveredUrl; statusBubble.visible = true; hideStatusText.stop(); } } states: [ State { name: "FullScreen" PropertyChanges { target: tabBar visible: false height: 0 } PropertyChanges { target: navigationBar visible: false } } ] settings.localContentCanAccessRemoteUrls: true settings.localContentCanAccessFileUrls: false settings.autoLoadImages: appSettings.autoLoadImages settings.javascriptEnabled: appSettings.javaScriptEnabled settings.errorPageEnabled: appSettings.errorPageEnabled settings.pluginsEnabled: appSettings.pluginsEnabled settings.fullScreenSupportEnabled: appSettings.fullScreenSupportEnabled settings.autoLoadIconsForPage: appSettings.autoLoadIconsForPage settings.touchIconsEnabled: appSettings.touchIconsEnabled settings.webRTCPublicInterfacesOnly: appSettings.webRTCPublicInterfacesOnly settings.pdfViewerEnabled: appSettings.pdfViewerEnabled settings.imageAnimationPolicy: appSettings.imageAnimationPolicy settings.screenCaptureEnabled: true onCertificateError: function(error) { if (!error.isMainFrame) { error.rejectCertificate(); return; } error.defer(); sslDialog.enqueue(error); } onNewWindowRequested: function(request) { if (!request.userInitiated) console.warn("Blocked a popup window."); else if (request.destination === WebEngineNewWindowRequest.InNewTab) { var tab = tabBar.createTab(currentWebView.profile, true, request.requestedUrl); tab.acceptAsNewWindow(request); } else if (request.destination === WebEngineNewWindowRequest.InNewBackgroundTab) { var backgroundTab = tabBar.createTab(currentWebView.profile, false); backgroundTab.acceptAsNewWindow(request); } else if (request.destination === WebEngineNewWindowRequest.InNewDialog) { var dialog = applicationRoot.createDialog(currentWebView.profile); dialog.currentWebView.acceptAsNewWindow(request); } else { var window = applicationRoot.createWindow(currentWebView.profile); window.currentWebView.acceptAsNewWindow(request); } } onFullScreenRequested: function(request) { if (request.toggleOn) { webEngineView.state = "FullScreen"; browserWindow.previousVisibility = browserWindow.visibility; browserWindow.showFullScreen(); fullScreenNotification.show(); } else { webEngineView.state = ""; browserWindow.visibility = browserWindow.previousVisibility; fullScreenNotification.hide(); } request.accept(); } onRegisterProtocolHandlerRequested: function(request) { console.log("accepting registerProtocolHandler request for " + request.scheme + " from " + request.origin); request.accept(); } onDesktopMediaRequested: function(request) { // select the primary screen request.selectScreen(request.screensModel.index(0, 0)); } onRenderProcessTerminated: function(terminationStatus, exitCode) { var status = ""; switch (terminationStatus) { case WebEngineView.NormalTerminationStatus: status = "(normal exit)"; break; case WebEngineView.AbnormalTerminationStatus: status = "(abnormal exit)"; break; case WebEngineView.CrashedTerminationStatus: status = "(crashed)"; break; case WebEngineView.KilledTerminationStatus: status = "(killed)"; break; } print("Render process exited with code " + exitCode + " " + status); reloadTimer.running = true; } onSelectClientCertificate: function(selection) { selection.certificates[0].select(); } onFindTextFinished: function(result) { if (!findBar.visible) findBar.visible = true; findBar.numberOfMatches = result.numberOfMatches; findBar.activeMatch = result.activeMatch; } onLoadingChanged: function(loadRequest) { if (loadRequest.status == WebEngineView.LoadStartedStatus) findBar.reset(); } onPermissionRequested: function(permission) { permissionDialog.permission = permission; permissionDialog.visible = true; } onWebAuthUxRequested: function(request) { webAuthDialog.init(request); } Timer { id: reloadTimer interval: 0 running: false repeat: false onTriggered: currentWebView.reload() } } }
我们使用Action 类型创建新标签页：
Action { shortcut: StandardKey.AddTab onTriggered: { tabBar.createTab(tabBar.count != 0 ? currentWebView.profile : defaultProfilePrototype.instance()); addressBar.forceActiveFocus(); addressBar.selectAll(); }
我们在ToolBar 中使用TextField Qt Quick 控件创建地址栏，显示当前 URL 和用户可输入的其他 URL：
menuBar: ToolBar { id: navigationBar RowLayout { anchors.fill: parent ... TextField { id: addressBar ... focus: true Layout.fillWidth: true Binding on text { when: currentWebView value: currentWebView.url } onAccepted: currentWebView.url = Utils.fromUserInput(text) selectByMouse: true }
处理证书错误
如果出现证书错误，我们会检查它是来自主框架，还是来自页面内的资源。资源错误会自动触发证书拒绝，因为用户没有足够的上下文来做出决定。对于所有其他情况，我们会调用defer() QML 方法暂停 URL 请求，等待用户输入：
onCertificateError: function(error) { if (!error.isMainFrame) { error.rejectCertificate(); return; } error.defer(); sslDialog.enqueue(error); }
我们使用对话框类型来提示用户继续或取消加载网页。如果用户选择Yes ，我们会调用acceptCertificate() 方法继续加载 URL 中的内容。如果用户选择No ，我们会调用rejectCertificate() 方法拒绝请求并停止从 URL 加载内容：
Dialog { id: sslDialog anchors.centerIn: parent contentWidth: Math.max(mainTextForSSLDialog.width, detailedTextForSSLDialog.width) contentHeight: mainTextForSSLDialog.height + detailedTextForSSLDialog.height property var certErrors: [] // fixme: icon! // icon: StandardIcon.Warning standardButtons: Dialog.No | Dialog.Yes title: "Server's certificate not trusted" contentItem: Item { Label { id: mainTextForSSLDialog text: "Do you wish to continue?" } Text { id: detailedTextForSSLDialog anchors.top: mainTextForSSLDialog.bottom text: "If you wish so, you may continue with an unverified certificate.\n" + "Accepting an unverified certificate means\n" + "you may not be connected with the host you tried to connect to.\n" + "Do you wish to override the security check and continue?" } } onAccepted: { certErrors.shift().acceptCertificate(); presentError(); } onRejected: reject() function reject(){ certErrors.shift().rejectCertificate(); presentError(); } function enqueue(error){ certErrors.push(error); presentError(); } function presentError(){ visible = certErrors.length > 0 } }
处理权限请求
我们使用onPermissionRequested() 信号处理器来处理访问特定功能或设备的请求。permission 参数是一个 WebEnginePermission 类型的对象，可用于处理传入的请求。我们将临时存储该对象，因为我们需要用它来构建对话框的信息：
onPermissionRequested: function(permission) { permissionDialog.permission = permission; permissionDialog.visible = true; }
我们将显示一个对话框，要求用户授予或拒绝访问权限。自定义questionForFeature() JavaScript 函数会生成一个有关请求的人可读问题。如果用户选择Yes ，我们将调用grant() 方法；如果用户选择No ，我们将调用deny() 方法。
Dialog { id: permissionDialog anchors.centerIn: parent width: Math.min(browserWindow.width, browserWindow.height) / 3 * 2 contentWidth: mainTextForPermissionDialog.width contentHeight: mainTextForPermissionDialog.height standardButtons: Dialog.No | Dialog.Yes title: "Permission Request" property var permission; contentItem: Item { Label { id: mainTextForPermissionDialog } } onAccepted: permission.grant() onRejected: permission.deny() onVisibleChanged: { if (visible) { mainTextForPermissionDialog.text = questionForPermissionType(); width = contentWidth + 20; } } function questionForPermissionType() { var question = "Allow " + permission.origin + " to " switch (permission.permissionType) { case WebEnginePermission.PermissionType.Geolocation: question += "access your location information?"; break; case WebEnginePermission.PermissionType.MediaAudioCapture: question += "access your microphone?"; break; case WebEnginePermission.PermissionType.MediaVideoCapture: question += "access your webcam?"; break; case WebEnginePermission.PermissionType.MediaAudioVideoCapture: question += "access your microphone and webcam?"; break; case WebEnginePermission.PermissionType.MouseLock: question += "lock your mouse cursor?"; break; case WebEnginePermission.PermissionType.DesktopVideoCapture: question += "capture video of your desktop?"; break; case WebEnginePermission.PermissionType.DesktopAudioVideoCapture: question += "capture audio and video of your desktop?"; break; case WebEnginePermission.PermissionType.Notifications: question += "show notification on your desktop?"; break; case WebEnginePermission.PermissionType.ClipboardReadWrite: question += "read from and write to your clipboard?"; break; case WebEnginePermission.PermissionType.LocalFontsAccess: question += "access the fonts stored on your machine?"; break; default: question += "access unknown or unsupported permission type [" + permission.permissionType + "] ?"; break; } return question; } }
进入和离开全屏模式
我们在工具栏上的设置菜单中创建了一个允许全屏模式的菜单项。此外，我们还创建了一个通过键盘快捷键离开全屏模式的操作。我们调用accept() 方法来接受全屏请求。该方法将isFullScreen 属性设置为等于toggleOn 属性。
onFullScreenRequested: function(request) { if (request.toggleOn) { webEngineView.state = "FullScreen"; browserWindow.previousVisibility = browserWindow.visibility; browserWindow.showFullScreen(); fullScreenNotification.show(); } else { webEngineView.state = ""; browserWindow.visibility = browserWindow.previousVisibility; fullScreenNotification.hide(); } request.accept(); }
进入全屏模式后，我们将使用在FullScreenNotification.qml 中创建的 FullScreenNotification 自定义类型显示通知。
我们在设置菜单中使用Action 类型创建一个快捷方式，以便按下 escape 键离开全屏模式：
Settings { id : appSettings property alias fullScreenSupportEnabled: fullScreenSupportEnabled.checked property alias autoLoadIconsForPage: autoLoadIconsForPage.checked property alias touchIconsEnabled: touchIconsEnabled.checked property alias webRTCPublicInterfacesOnly : webRTCPublicInterfacesOnly.checked property alias devToolsEnabled: devToolsEnabled.checked property alias pdfViewerEnabled: pdfViewerEnabled.checked property int imageAnimationPolicy: WebEngineSettings.ImageAnimationPolicy.Allow } Action { shortcut: "Escape" onTriggered: { if (currentWebView.state == "FullScreen") { browserWindow.visibility = browserWindow.previousVisibility; fullScreenNotification.hide(); currentWebView.triggerWebAction(WebEngineView.ExitFullScreen); } if (findBar.visible) findBar.visible = false; } }
处理 WebAuth/FIDO 用户体验请求
我们使用onWebAuthUxRequested() 信号处理器来处理 WebAuth/FIDO UX 请求。request 参数是WebEngineWebAuthUxRequest 的一个实例，其中包含用户体验请求详情和处理请求所需的 API。我们用它来构建 WebAuthUX 对话框并启动用户体验请求流。
onWebAuthUxRequested: function(request) { webAuthDialog.init(request); }
WebEngineWebAuthUxRequest 对象会定期发出stateChanged 信号，通知潜在观察者当前的 WebAuth 用户体验状态。观察者会相应地更新 WebAuth 对话框。我们使用 onStateChanged() 信号处理程序来处理状态更改请求。有关如何处理这些信号的示例，请参见WebAuthDialog.qml 。
Connections { id: webauthConnection ignoreUnknownSignals: true function onStateChanged(state) { webAuthDialog.setupUI(state); } function init(request) { pinLabel.visible = false; pinEdit.visible = false; confirmPinLabel.visible = false; confirmPinEdit.visible = false; selectAccountModel.clear(); webAuthDialog.authrequest = request; webauthConnection.target = request; setupUI(webAuthDialog.authrequest.state) webAuthDialog.visible = true; pinEntryError.visible = false; }
MacOS 的签名要求
在 macOS 上运行Quick Nano 浏览器时，要允许网站访问位置、摄像头和麦克风，应用程序需要签名。这在构建时会自动完成，但你需要为构建环境设置一个有效的签名身份。
文件和属性
本示例使用 Tango 图标库中的图标：
| Tango 图标库 | 公共领域 |
