ApplicationWindow QML Type
支持页眉和页脚的样式化顶层窗口。更多
Import Statement: | import QtQuick.Controls |
Inherits: |
属性
- activeFocusControl : Control
- background : Item
- bottomPadding : real
(since 6.9)
- contentData : list<QtObject>
- contentItem : Item
- font : font
- footer : Item
- header : Item
- leftPadding : real
(since 6.9)
- locale : Locale
- menuBar : Item
(since QtQuick.Controls 2.3 (Qt 5.10))
- rightPadding : real
(since 6.9)
- topPadding : real
(since 6.9)
附属物业
- activeFocusControl : Control
- contentItem : Item
- footer : Item
- header : Item
- menuBar : Item
(since QtQuick.Controls 2.3 (Qt 5.10))
- window : ApplicationWindow
详细说明

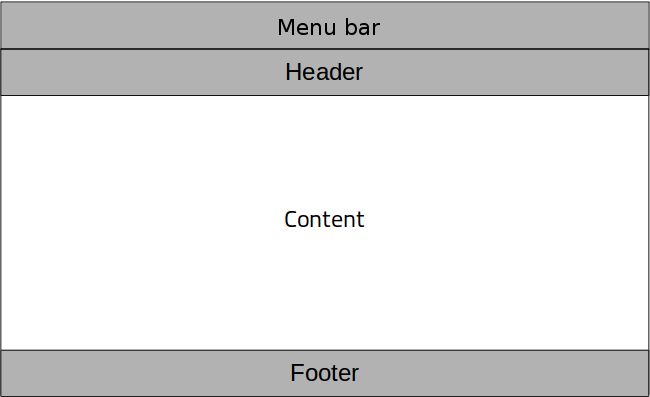

ApplicationWindow 是一个Window ,可方便地为窗口添加menu bar 、header 和footer 项。
您可以将 ApplicationWindow 声明为应用程序的根项,并使用QQmlApplicationEngine 运行它。这样,您就可以通过 QML 控制窗口的属性、外观和布局。
import QtQuick.Controls 2.12 ApplicationWindow { visible: true menuBar: MenuBar { // ... } header: ToolBar { // ... } footer: TabBar { // ... } StackView { anchors.fill: parent } }
注: 默认情况下,ApplicationWindow 是不可见的。
附加应用程序窗口属性
由于 QML 的范围和命名解析(Scope and Naming Resolution)工作原理,可以在其子 QML 对象的任何地方引用应用程序根元素的id
。尽管这种方法对许多应用程序和用例都很好,但对通用 QML 组件来说,这种方法可能是不可接受的,因为它会产生对周围环境的依赖。
ApplicationWindow 提供了一组附加属性,可用于从无法直接访问窗口的地方访问窗口及其构建模块,而不会对特定窗口产生依赖id
。使用 ApplicationWindow 附加属性的 QML 组件可在任何窗口中工作,而不管它是id
。
安全区域
自 Qt 6.9 以来,ApplicationWindow 会自动为任何窗口报告的safe area margins 添加填充到contentItem 。这将确保contentItem 保持在窗口的安全区域内,而背景项则覆盖整个窗口。
如果在窗口的contentItem 中手动设置安全区域边距,则可通过topPadding 、leftPadding 、rightPadding 和bottomPadding 属性覆盖默认值:
ApplicationWindow { // Remove automatic safe area padding topPadding: 0 Flickable { // Inset content by safe area margin topMargin: SafeArea.margins.top } }
header 、footer 和menuBar 属性不会自动为安全区域边距添加任何填充。但是,根据使用的样式,样式在实现ToolBar 、TabBar 和MenuBar 时可能会考虑安全区域。
另请参阅 Qt Quick Controls 中的Customizing ApplicationWindow(自定义应用程序窗口)、Overlay 、Page 、Container Controls(容器控件)和Focus Management(焦点管理)。
属性文档
activeFocusControl : Control |
该属性保存当前具有活动焦点的控件,如果没有具有活动焦点的控件,则保存null
。
Window::activeFocusItem 和ApplicationWindow::activeFocusControl 的区别在于,前者可以指向控件的构件,而后者则指向外层控件。例如,当SpinBox 有焦点时,activeFocusItem 指向编辑器,而 activeFocusControl 指向SpinBox 本身。
另请参阅 Window::activeFocusItem 。
background : Item |
该属性包含背景项。
背景项堆叠在content item 下方,但高于窗口的background color 。
例如,背景项对于图像和渐变非常有用,但对于纯色来说,color 属性更可取,因为它不需要创建项。
注意: 如果背景项没有指定明确的大小,它会自动跟随控件的大小。在大多数情况下,无需为背景项指定宽度或高度。
另请参阅 自定义 ApplicationWindow、contentItem 、header 和footer 。
bottomPadding : real |
该属性用于保存窗口内容项的底部填充。除非明确设置,否则该值将反映窗口的safe area margins 。
此属性在 Qt 6.9 中引入。
另请参阅 topPadding,leftPadding, 和rightPadding 。
该默认属性包含声明为窗口子对象的所有对象的列表。
数据属性允许您在ApplicationWindow 中自由混合可视化子窗口、资源和其他窗口。
如果将一个项目指定给 contentData 列表,它就会成为窗口contentItem 的子项,从而显示在窗口内部。项的父窗口将是窗口的contentItem 。
一般情况下无需引用 contentData 属性,因为它是ApplicationWindow 的默认属性,因此所有子项都会自动分配给该属性。
另请参阅 contentItem 。
contentItem : Item |
该属性包含窗口内容项。
该内容项堆叠在background 项之上,以及menuBar 、header 和footer 项之下。
自 Qt 6.9 起,ApplicationWindow 将自动为窗口报告的任何safe area margins 的 contentItem 添加 padding。要覆盖填充,请使用各个填充属性。
另请参阅 background,menuBar,header,footer,topPadding,bottomPadding,leftPadding 和rightPadding 。
font : font |
该属性包含当前为窗口设置的字体。
默认字体取决于系统环境。QGuiApplication 维护一个系统/主题字体,作为所有应用程序窗口的默认字体。您也可以在加载任何 QML 之前,通过向QGuiApplication::setFont() 传递自定义字体来设置窗口的默认字体。最后,字体会与 Qt 的字体数据库进行匹配,以找到最佳匹配。
ApplicationWindow 将显式字体属性传播给子控件。如果更改了窗口字体的特定属性,该属性会传播到窗口中的所有子控件,并覆盖该属性的任何系统默认值。
另请参阅 Control::font 。
footer : Item |
该属性用于保存窗口页脚项。页脚项位于底部,并根据窗口宽度调整大小。默认值为null
。
ApplicationWindow { footer: ToolBar { // ... } }
注: 将ToolBar 、TabBar 或DialogButtonBox 指定为窗口页脚会自动将相应的ToolBar::position 、TabBar::position 或DialogButtonBox::position 属性设置为Footer
。
另请参阅 menuBar,header, 和Page::footer 。
header : Item |
该属性包含窗口页眉项。页眉项位于窗口顶部、菜单栏下方,并根据窗口宽度调整大小。默认值为null
。
ApplicationWindow { header: TabBar { // ... } }
注: 将ToolBar 、TabBar 或DialogButtonBox 指定为窗口页眉会自动将相应的ToolBar::position 、TabBar::position 或DialogButtonBox::position 属性设置为Header
。
另请参阅 menuBar,footer, 和Page::header 。
leftPadding : real |
该属性用于保存窗口内容项的左填充。除非明确设置,否则该值将反映窗口的safe area margins 。
此属性在 Qt 6.9 中引入。
另请参阅 bottomPadding,topPadding, 和rightPadding 。
locale : Locale |
该属性用于保存窗口的 locale。
默认语言取决于系统环境。您可以在加载任何 QML 之前调用QLocale::setDefault() 来设置默认 locale。
ApplicationWindow 该属性会将本地化传播给子控件。如果更改窗口的 locale,该 locale 会传播到窗口中的所有子控件,覆盖系统默认 locale。
另请参阅 Control::locale 。
menuBar : Item |
该属性用于保存窗口菜单栏。菜单栏位于窗口顶部、标题上方,并根据窗口宽度调整大小。默认值为null
。
ApplicationWindow { menuBar: MenuBar { // ... } }
该属性在 QtQuick.Controls 2.3 (Qt 5.10) 中引入。
rightPadding : real |
该属性用于保存窗口内容项的右填充。除非明确设置,否则该值将反映窗口的safe area margins 。
该属性在 Qt 6.9 中引入。
另请参阅 bottomPadding,leftPadding, 和topPadding 。
topPadding : real |
该属性用于保存窗口内容项的顶部填充。除非明确设置,否则该值将反映窗口的safe area margins 。
此属性在 Qt 6.9 中引入。
另请参阅 bottomPadding,leftPadding, 和rightPadding 。
附加属性文档
ApplicationWindow.activeFocusControl : Control |
该附加属性保存当前拥有活动焦点的控件,如果没有拥有活动焦点的控件,则保存null
。该属性可附加到任何项目。如果项目不在窗口中,或窗口没有活动焦点,则值为null
。
另请参阅 Window::activeFocusItem 和Attached ApplicationWindow Properties 。
ApplicationWindow.contentItem : Item |
该附加属性用于保存窗口内容项目。该属性可附加到任何项目。如果项目不在ApplicationWindow 中,则值为null
。
ApplicationWindow.footer : Item |
该附加属性用于保存窗口页脚项目。该属性可附加到任何项目。如果项目不在ApplicationWindow 中,或窗口没有页脚项目,则值为null
。
ApplicationWindow.header : Item |
该附加属性用于保存窗口页眉项目。该属性可附加到任何项目。如果项目不在ApplicationWindow 中,或窗口没有页眉项目,则值为null
。
ApplicationWindow.menuBar : Item |
该附加属性用于保存窗口菜单栏。该属性可附加到任何项目。如果项目不在ApplicationWindow 中,或窗口没有菜单栏,则值为null
。
该属性在 QtQuick.Controls 2.3 (Qt 5.10) 中引入。
ApplicationWindow.window : ApplicationWindow |
该附加属性用于保存应用程序窗口。该属性可附加到任何项目。如果项目不在ApplicationWindow 中,其值为null
。
