教程:C++ 调试

本教程以TextFinder示例说明如何在“Debug ”模式下调试 Qt C++ 应用程序。

TextFinder 将文本文件读入QString ,然后通过QTextEdit 进行显示。要查看 TextFinder 类并查看其中存储的数据:

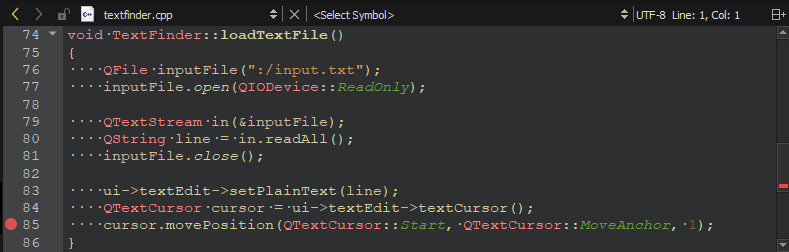

  1. 在“textfinder.cpp ”中,点击行号与窗口边框之间的区域(即我们更改光标位置的那一行),以设置断点。

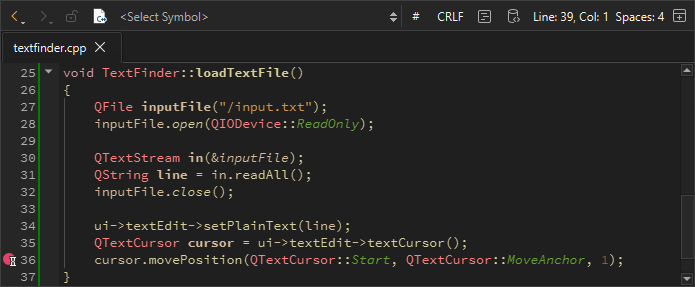

    在编辑器中设置断点

  2. 转到“Debug ”>“Start Debugging ”>“Start Debugging of Startup Project ”,或按F5 键。
  3. 要查看断点信息,请转到“Breakpoints ”视图。

    在“断点”视图中查看断点详细信息

  4. 要删除断点,请右键单击该断点,然后选择“Delete Breakpoint ”。

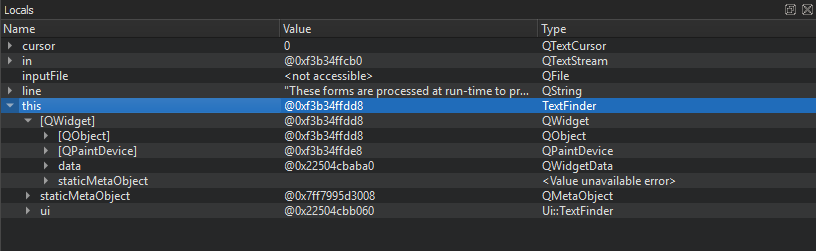

  5. 要查看 TextFinder 类的基类和数据成员,请转到“Locals ”视图。

    查看类的基类和数据成员

修改on_findButton_clicked() 函数,使其在光标到达文档末尾时,能够返回文档开头并继续搜索。添加以下代码片段:

void TextFinder::on_findButton_clicked()
{
    QString searchString = ui->lineEdit->text();

    QTextDocument *document = ui->textEdit->document();
    QTextCursor cursor = ui->textEdit->textCursor();
    cursor = document->find(searchString, cursor,
        QTextDocument::FindWholeWords);
    ui->textEdit->setTextCursor(cursor);

    bool found = cursor.isNull();

    if (!found && previouslyFound) {
        int ret = QMessageBox::question(this, tr("End of Document"),
        tr("I have reached the end of the document. Would you like "
        "me to start searching from the beginning of the document?"),
        QMessageBox::Yes | QMessageBox::No, QMessageBox::Yes);

        if (ret == QMessageBox::Yes) {
            cursor = document->find(searchString,
                QTextDocument::FindWholeWords);
            ui->textEdit->setTextCursor(cursor);
        } else
            return;
    }
    previouslyFound = found;
}

然而,如果编译并运行上述代码,应用程序会因逻辑错误而无法正常工作。要定位此逻辑错误,请使用以下按钮逐步执行代码:停止调试器 (Stop Debugger)、跨过去 (Step Over)、踏入 (Step Into) 以及迈出一步 (Step Out)。

另请参阅 教程:Qt Widgets 应用程序、调试以及调试器。
